Bits
Aircraft Extension Bits
Masonry - SDS Drill Bits
Sold individually
Surface treated
118 degree
High speed steel
6 per box
|
Drill Size
|
Part Number
|
Useable Length
|
Overall Length
|
| 5/32" | 51691040 |
4"
|
6"
|
| 3/16" | 51691232 |
2"
|
4"
|
| 3/16" | 51691240 |
4"
|
6"
|
| 1/4" | 51691640 |
4"
|
6"
|
| 5/16" | 51692040 |
4"
|
6"
|
| 3/8" | 51692440 |
4"
|
6"
|
| 1/2" | 51693240 |
4"
|
6"
|
| 11/16" | 51694440 |
4"
|
6"
|
| 3/4" | 51694864 |
10"
|
12"
|
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 7/64" | 51610740 |
1 1/2"
|
6"
|
| 1/8" | 51610840 |
1 5/8"
|
6"
|
| 9/64" | 51610940 |
1 3/4"
|
6"
|
| 5/32" | 51611040 |
2"
|
6"
|
| 11/64" | 51611140 |
2 1/8"
|
6"
|
| 3/16" | 51611240 |
2 5/16"
|
6"
|
| 7/32" | 51611440 |
2 1/2"
|
6"
|
| 1/4" | 51611640 |
2 3/4"
|
6"
|
| 17/64" | 51611740 |
2 7/8"
|
6"
|
| 9/32" | 51611840 |
2 15/16"
|
6"
|
| 5/16" | 51612040 |
3 3/16"
|
6"
|
Step Drill Bit HSS
For use with Confirmat Screws
Sold Individually
Stubby/Screw Machine Bits
|
Drill Size
|
Part Number
|
Useable
Length |
Overall
Length |
| 5mm / 7mm | 51960705S |
3"
|
5 3/4"
|
Surface treated
135 degree
Split point
High speed steel
12 per box for 1/16" to 9/32" sizes
6 per box for 5/16" to 1/2" sizes
*Denotes 118 degree split point
Boring Bits
Sold individually
Shank Diameter 10mm
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| *1/16" | 516204 |
5/8"
|
1 5/8"
|
| *5/64" | 516205 |
11/16"
|
1 11/16"
|
| 3/32" | 516206 |
3/4"
|
1 3/4"
|
| 7/64" | 516207 |
13/16"
|
1 13/16"
|
| 1/8" | 516208 |
7/8"
|
1 7/8"
|
| 9/64" | 516209 |
15/16"
|
1 15/16"
|
| 5/32" | 516210 |
1"
|
2 1/16"
|
| 11/64" | 516211 |
1 1/16"
|
2 1/8"
|
| 3/16" | 516212 |
1 1/8"
|
2 3/16"
|
| 13/64" | 516213 |
1 3/16"
|
2 1/4"
|
| 7/32" | 516214 |
1 1/4"
|
2 3/8"
|
| 15/64" | 516215 |
1 5/16"
|
2 7/16"
|
| 1/4" | 516216 |
1 3/8"
|
2 1/2"
|
| 17/64" | 516217 |
1 7/16"
|
2 5/8"
|
| 9/32" | 516218 |
1 1/2"
|
2 11/16"
|
| 5/16" | 516220 |
1 5/8"
|
2 13/16"
|
| 21/64" | 516221 |
1 11/16"
|
2 7/8"
|
| 11/32" | 516222 |
1 11/16"
|
3"
|
| 3/8" | 516224 |
1 13/16"
|
3 1/8"
|
| 7/16" | 516228 |
2 1/16"
|
3 7/16"
|
| 1/2" | 516232 |
2 1/4"
|
3 3/4"
|
| #26 | 517226 |
1"
|
2 1/16"
|
| #29 | 517229 |
15/16"
|
1 7/8"
|
| #38 | 517238 |
15/16"
|
1 13/16"
|
|
Bit Diameter
|
Part Number
for Right |
Overall Length
|
| 20mm |
517620R
|
57mm
|
| 25mm |
517625R
|
57mm
|
| 35mm |
517635R
|
57mm
|
| 40mm |
517640R
|
57mm
|
Dowel Bits
Sold individually
Shank Diameter 10mm
|
Bit Diameter
|
Part Number for Left
|
Part Number for Right
|
Overall Length
|
| 4mm |
517604R
|
57mm
|
|
| 5mm |
517605L
|
517605R
|
57mm
|
| 8mm |
517608L
|
517608R
|
57mm
|
| 10mm |
517610R
|
57mm
|
|
| 11mm |
517611R
|
57mm
|
Vix Bits
Cobalt Jobber Bits
Sold individually
135 degree
Split point
Rockwell hardness
12 per box for 1/16" to 1/4" sizes
6 per box for 17/64" to 1/2" sizes
|
Screw Size
|
Part Number
|
Diameter
|
Shank Size
|
| #3, #4 |
518005VB
|
5/64"
|
1/4"
|
| #5, #6 |
518007VB
|
7/64"
|
1/4"
|
| #8, #9, #10 |
518009VB
|
9/64"
|
1/4"
|
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 5/64" | 516605 |
1"
|
2"
|
| 3/32" | 516606 |
1 1/4"
|
2 1/4"
|
| 7/64" | 516607 |
1 1/2"
|
2 5/8"
|
| 1/8" | 516608 |
1 5/8"
|
2 3/4"
|
| 9/64" | 516609 |
1 3/4"
|
2 7/8"
|
| 5/32" | 516610 |
2"
|
3 1/8"
|
| 3/16" | 516612 |
2 5/16"
|
3 1/2"
|
| 13/64" | 516613 |
2 7/16"
|
3 5/8"
|
| 7/32" | 516614 |
2 1/2"
|
3 3/4
|
| 1/4" | 516616 |
2 3/4"
|
4"
|
| 5/16" | 516620 |
3 3/16"
|
4 1/2"
|
| 3/8" | 516624 |
3 5/8"
|
5"
|
| 1/2" | 516632 |
4 1/2"
|
6"
|
Replacement Jobber for Vix Bits
Sold individually
|
Drill Size
|
Part Number
|
| 5/64" | 518005RVJ |
| 7/64" | 518007RVJ |
| 9/64" | 518009RVJ |
Spade Bits
12 per box
|
Drill Size
|
Part Number
|
| 3/8" | 517424WS |
| 1/2" | 517432WS |
| 5/8" | 517440WS |
| 3/4" | 517448WS |
| 13/16" | 517452WS |
| 1" | 517464WS |
| 1 1/8" | 517472WS |
| 1 1/4" | 517480WS |
| 1 1/2" | 517496WS |
Metric Jobber Bits
118 degree
High speed steel
12 per box for 3mm to 6mm sizes
6 per box for 8mm to 10mm sizes

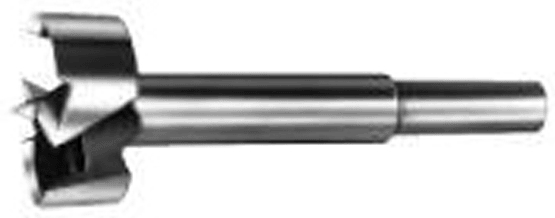

Forstener Bits
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 5mm | 519105 |
62mm
|
92mm
|
| 6mm | 519106 |
70mm
|
102mm
|
| 8mm | 519108 |
81mm
|
114mm
|
Sold individually
|
Drill Size
|
Part Number
|
| 3/4" | 517448F |
| 7/8" | 517456F |
| 1" | 517464F |
| 1 1/4" | 517480F |
Double End Drill Bits
Brad Point Machine Drills
Surface treated
135 degree
Split point
12 per box
Sold individually
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 7/64" | 516307 |
1/2"
|
1 7/8"
|
| 1/8" | 516308 |
1/2"
|
2"
|
| 9/64" | 516309 |
1/2"
|
2"
|
| 5/32" | 516310 |
1/2"
|
2 1/16"
|
| 3/16" | 516312 |
1/2"
|
2 3/16"
|
| 7/32" | 516314 |
1/2"
|
2 3/8"
|
| 1/4" | 516316 |
1/2"
|
2 1/2"
|
| #20 | 516320 |
1/2"
|
2 1/8"
|
| #30 | 516330 |
1/2"
|
2"
|
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 1/8" | 517508BP |
3"
|
5"
|
| 3/16" | 517512BP |
3"
|
5"
|
| 5mm | 51755MMBP |
3"
|
5"
|
| 1/4" | 517516BP |
3"
|
5"
|
| 9/32" | 517518BP |
3"
|
5"
|
| 5/16" | 517520BP |
3"
|
5"
|
| 3/8" | 517524BP |
3"
|
5"
|
Countersinks
Masonry Drill Bits A Taper
Sold individually
Overall length of 7/8"
|
Drill Size
|
Part Number
|
Useable Length
|
Overall Length
|
| 3/16" | 51691232A |
2 9/16"
|
4 3/4"
|
| 1/4" | 51691640A |
4"
|
6"
|
|
Part Number
|
Tool Number
|
Taper Point Drill Size
|
Recomended Screw Size
|
Cutting Diameter
|
| 52222408 |
C5
|
1/8"
|
#5
|
3/8"
|
| 52222409 |
C6
|
9/64"
|
#6
|
3/8"
|
| 52222411 |
C8
|
11/64"
|
#8
|
3/8"
|
| 52222412 |
C9
|
3/16"
|
#9
|
3/8"
|
Masonry Drills
Countersinks
Taper point drill with stop collar.
Slow spiral flutes
Sold individually
Sold individually
|
Drill Size
|
Part Number
|
Shank Diameter
|
Overall Length
|
| 1/8" | 51680832 |
1/8"
|
3"
|
| 3/16" | 51681232 |
3/16"
|
4"
|
| 3/16" | 51681240 |
3/16"
|
6"
|
| 1/4" | 51681632 |
1/4"
|
4"
|
| 1/4" | 51681640 |
1/4"
|
6"
|
| 5/16" | 51682032 |
1/4"
|
4"
|
| 5/16" | 51682040 |
1/4"
|
6"
|
| 3/8" | 51682432 |
1/4"
|
4"
|
| 3/8" | 51682440 |
3/8"
|
6"
|
| 3/8" | 51682464 |
3/8"
|
13"
|
| 7/16" | 51682838S |
3/8"
|
4"
|
| 7/16" | 51682840 |
3/8"
|
6"
|
| 1/2" | 51683232 |
1/4"
|
4"
|
| 1/2" | 51683240 |
3/8"
|
6"
|
| 5/8" | 51684040 |
1/2"
|
6"
|
|
Part Number
|
Type
|
Cutting Diameter
|
Drill Hole Size
|
| 52222408HM |
C5HM
|
3/8"
|
1/8"
|
| 52222409HM |
C6HM
|
3/8"
|
9/64"
|
| 52222411HM |
C8HM
|
3/8"
|
11/64"
|
| 52222412HM |
C9HM
|
3/8"
|
3/16"
|
Taper Bits for Countersinks
Regular Taper Point Drill Bits
|
Part Number
|
Drill Diameter
|
Wood Screw Size
|
Flute Length
|
Overall Length
|
| 517820100125 |
1/8"
|
5
|
1 5/8"
|
2 3/4"
|
| 517820100140 |
9/64"
|
6
|
1 3/4"
|
2 7/8"
|
| 517820100171 |
11/64"
|
8
|
2 1/8"
|
3 1/4"
|
| 517820100187 |
3/16"
|
9
|
2 5/16"
|
3 1/2"
|
Drill Bits for Concrete Screws
Sold individually
Hex Taper Point Drill Bits
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 5/32" | 51701034 |
3 1/4"
|
4 1/2"
|
| 3/16" | 51701234 |
3 1/4"
|
4 1/2"
|
| 3/16" | 51701238 |
4 1/4"
|
5 1/2"
|
|
Part Number
|
Drill Diameter
|
Wood Screw Size
|
Flute Length
|
Overall Length
|
Flute Type
|
| 517820140125 |
1/8"
|
5
|
1 5/8"
|
3 1/2"
|
1/4 Hex
|
| 517820140140 |
9/64"
|
6
|
1 3/4"
|
3 5/8"
|
1/4 Hex
|
| 517820120187 |
3/16"
|
9
|
2 5/16"
|
4 1/4"
|
1/4 Hex
|
| 517820140218 |
7/32"
|
10
|
2 7/16"
|
4 3/8"
|
1/4 Hex
|
