Drawer Slides

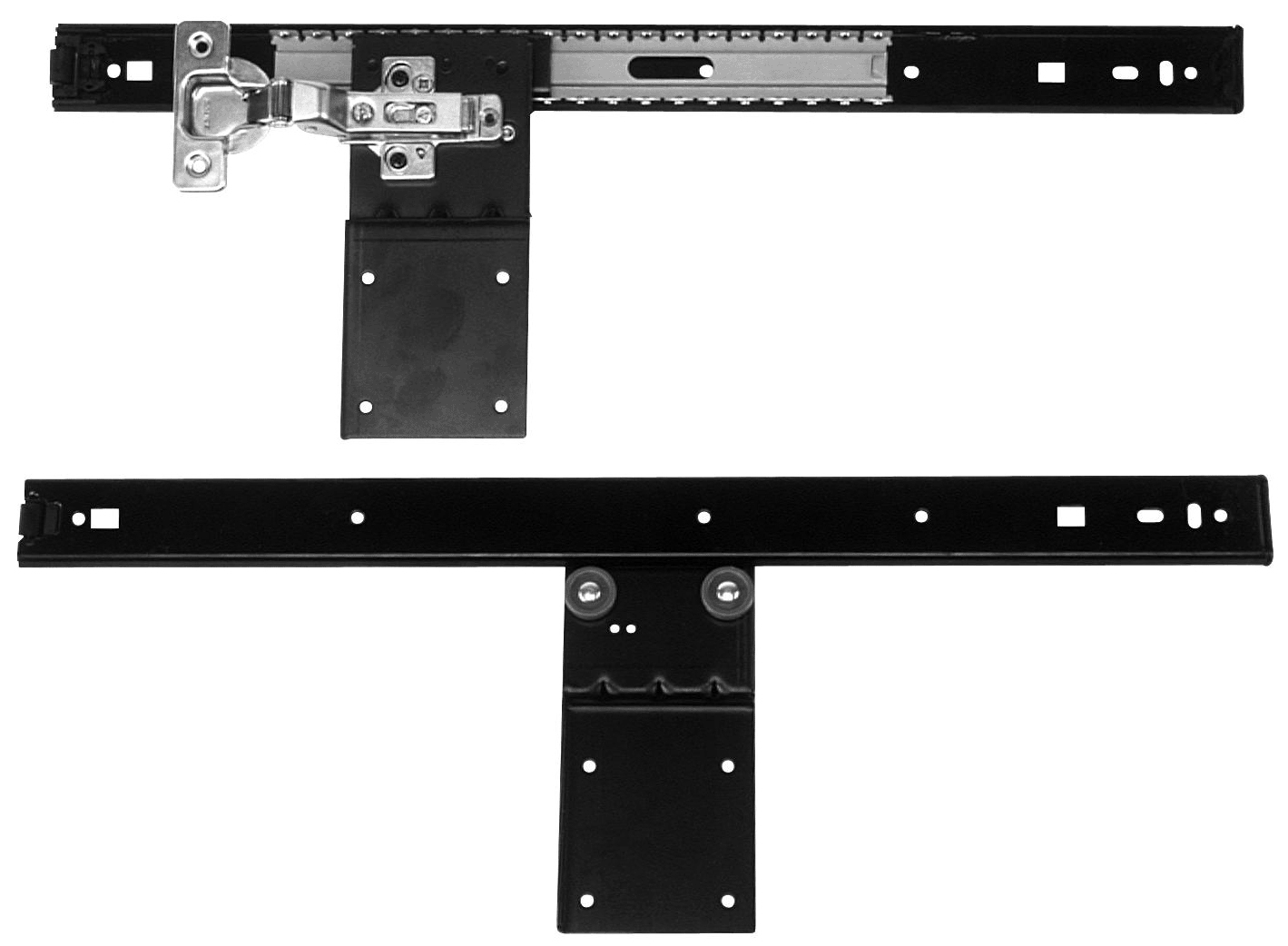

Ball Bearing Pocket Door Slides - Dynaslide
Feature:
Unique bracket design.
Pre-drilled for mounting plates.
Pre-drilled for wood follower-strip.
Nylon rollers to eliminate door racking.
Load rating 30 lbs based on 18" slides.
Available in zinc.
Applications:
Concealed door.
Part Number
Slide Length Inches
Slide Travel Inches
Finish
Slides per Box
DS572716BK
16"
12 5/16"
Black
20 pair
DS572718BK
18"
14 5/16"
Black
20 pair
DS572720BK
20"
16 5/16"
Black
20 pair
DS572722BK
22"
19 3/32"
Black
20 pair
DS572724BK
24"
20 5/16"
Black
20 pair

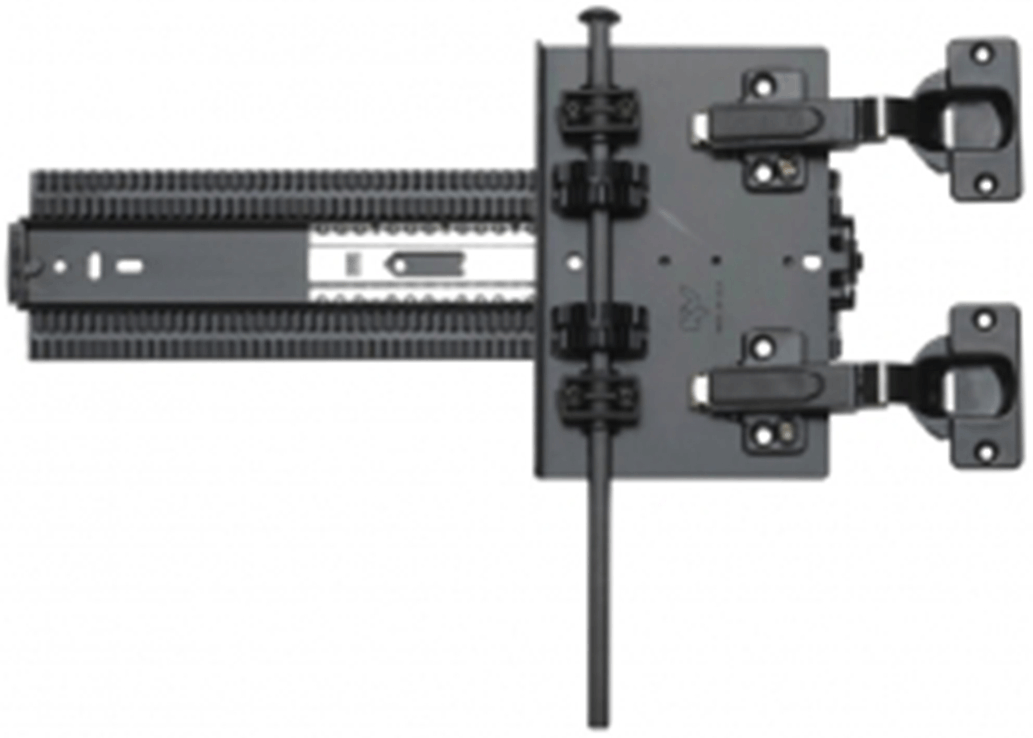

Ball Bearing Pocket Door Slides - Dynaslide
Feature:
Formed bracket for easy installation of wood follower-strip.
Positive detent-out to hold door open.
Used on inset or overlay doors.
Load rating 50 lbs based on 18" slides.
Applications:
Concealed door.
Part Number
Slide Length Inches
Slide Travel Inches
Finish
Slides per Box
PR200016
16"
12 5/8"
Zinc
20 pair
PR200018
18"
14 5/8"
Zinc
20 pair
PR200020
20"
16 5/8"
Zinc
20 pair
PR200022
22"
18 5/8"
Zinc
20 pair
Hinge/Roller Kit for Pocket Door Slides

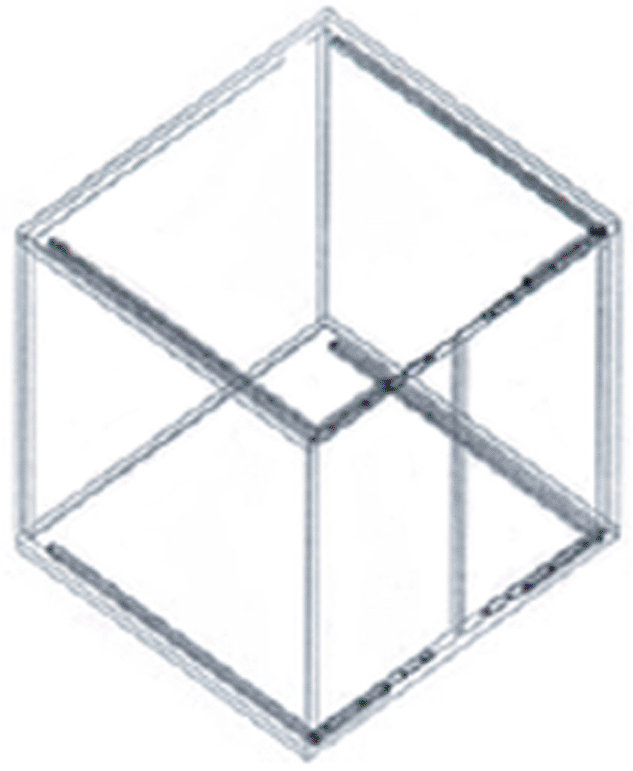

Plastic Pocket Door
Guide Track
Part Number: 7109POCK

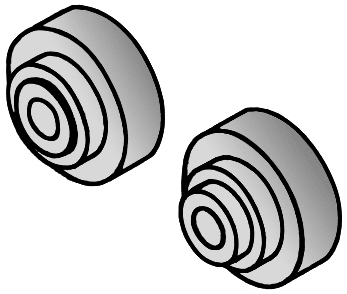

Pocket Door Roller
Plastic
Part Number: 7144740

Use with 8x3/4 Phil Pan TSA
Pin Assembly
Part Number: 7113PD
Light Duty 3/4 Extension Center Keyboard Slides
Features:
Fixed height bracket (2").
Side mounting for shelf or drawer.
Applications:
Computer keyboard or pencil drawer.
Part Number
Slide Length Inches
Slide Travel Inches
Load Rating lbs/pr
Finish
Slide per Box
PR340018BK
18"
12 1/2"
60
Black
10 pair
Light Duty 3/4 Extension Center Keyboard Slides - Dynaslide
Features:
Positive detent-out and detent-in.
Adjustable height bracket.
Adjustable in or outboard bracket.
Applications:
Computer keyboard or pencil drawer.
Part Number
Slide Length Inches
Slide Travel Inches
Load Capacity lbs/pr
Finish
Slides per Box
DS355414
14"
9 15/16"
60
Zinc
20 pair
DS355418
18"
12 15/16"
60
Zinc
20 pair
Light Duty 3/4 Extension Center, Adjustable Brackets Keyboard Slides - Dynaslide
Features:
Positive detent-out and detent-in.
Adjustable height bracket.
Adjustable in or outboard bracket.
Mounting tabs for keyboard shelf.
Applications:
Computer keyboard or pencil drawer.
Part Number
Slide Length Inches
Slide Travel Inches
Load Rating lbs/pr
Finish
Slides per Box
DS354414
14"
9 1/2"
60
Zinc
20 pair
DS354414BK
14"
9 1/2"
60
Black
20 pair
DS354416
16"
11"
60
Zinc
20 pair
DS354418
18"
12 1/2"
60
Zinc
20 pair
DS354418BK
18"
12 1/2"
60
Black
20 pair
Keyboard Slides, 3/4 Extension - Dynaslide
Features:
Positive detent-out and detent-in.
Fixed height bracket (3 1/2").
Bracket available in or outboard.
Plastic bumper prevents damage to furniture.
Mounting tabs for keyboard shelf.
Applications:
Computer keyboard or pencil drawer.
Part Number
Slide Length Inches
Slide Travel Inches
Load Rating lbs/pr
Finish
Slides per Box
DS352414
14"
9 5/8"
66
Zinc
10 pair
DS352416BK
16"
11 1/8"
66
Black
10 pair
DS352418
18"
12 1/2"
66
Zinc
10 pair

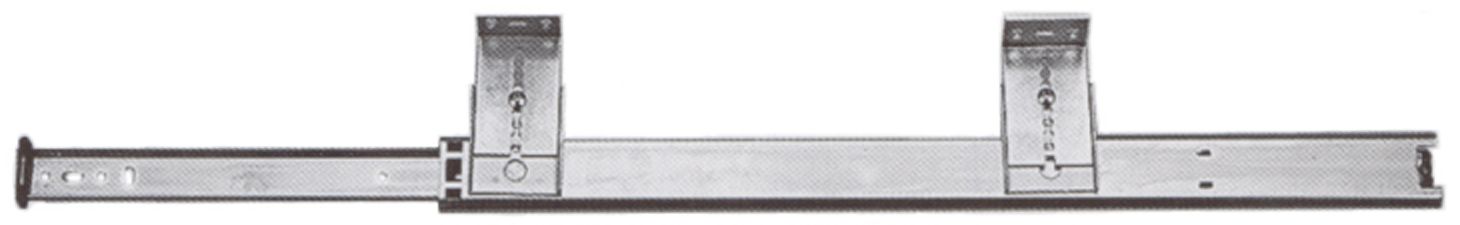

3/4 Extension Variable-Height Pencil Drawer Slide
Features:
Positive detent-out and detent-in.
Mounting brackets adjust to 7 heights and can be reversed for inboard/outboard mounting.
Anti-rebound stay-close design holds pencil drawer in closed position yet allows for easy opening.
Track member quickly disconnects using positive lever releases.
Applications:
Computer keyboard or pencil drawer.
Part Number
Slide Length Inches
Load Rating lbs/pr
Finish
Slides per Box
KV8250P14
14"
75
Zinc
10 pair
KV8250P16
16"
75
Zinc
10 pair
Full Extension Hold-Out Precision Drawer Slide
Features:
32mm hole pattern with direct access mounting.
Lever disconnect for easy drawer removal.
Hold-out feature allows slide to be held in place when drawer is open.
Telescopic movement on ball bearings.
Applications:
Computer keyboard or pencil drawer.
Part Number
Slide Length Inches
Load Rating lbs/pr
Finish
Slides per Box
KV8414B14
14"
100
Zinc
10 pair
