Grass Products

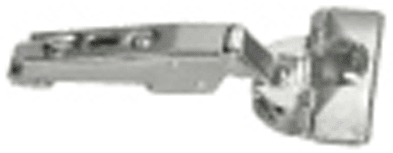

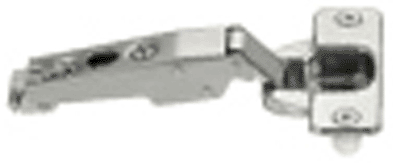

110 Degree Hinges - 35mm Cup, 45mm Hole Pattern
3-dimentional adjustment.
For face frame and frameless cabinets.
Soft close compatable, see below.
All metal hinge, nickel plated.
|
Part Number
|
Swing
|
Degree
|
Attach
|
Type
|
Cup
|
Box Quantity
|
| GR146622350015 |
Self Closing
|
110
|
Twin Tooless
|
Full Overlay
|
35mm Cup 11.5mm Cup Depth
|
250
|
| GR148322540015 |
Self Closing
|
110
|
B45 Dowel
|
Full Overlay
|
35mm Cup 11mm Cup Depth
|
250
|

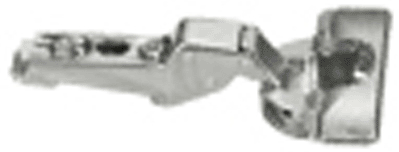

| GR146622500815 |
Self Closing
|
110
|
Twin Tooless
|
1/2 Overlay
|
35mm Cup 11.5mm Cup Depth
|
250
|
| GR148322540815 |
Self Closing
|
110
|
B45 Dowel
|
1/2 Overlay
|
35mm Cup 11mm Cup Depth
|
250
|

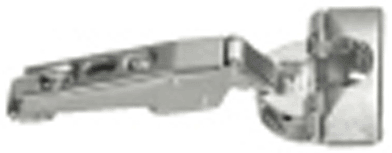

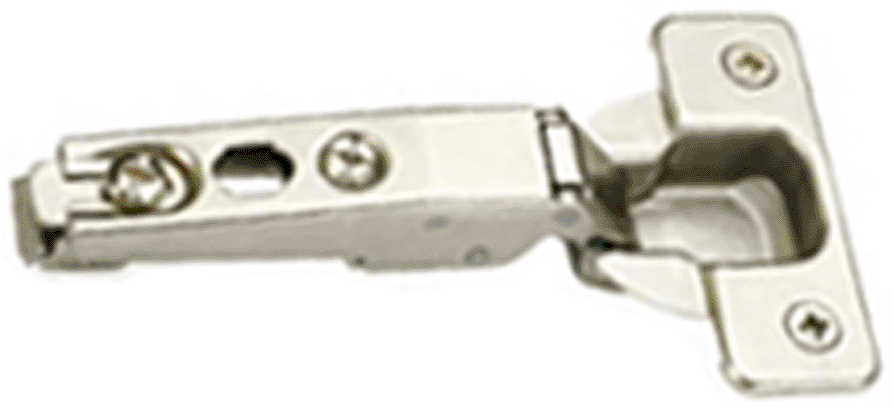

125 Degree - 35mm Cup, 45mm Hole Pattern
3-dimentional adjustment.
For face frame and frameless cabinets.
Soft close compatible, see below.
All metal hinge, nickel plated.
|
Part Number
|
Swing
|
Degree
|
Attach
|
Type
|
Cup
|
Box Quantity
|
| GR146629500015 |
Self Closing
|
125
|
Twin Tooless
|
Full Overlay
|
35mm Cup 12mm Cup Depth
|
250
|
| GR148329320015 |
Self Closing
|
125
|
B45 Dowel
|
Full Overlay
|
35mm Cup 11.8mm Cup Depth
|
250
|

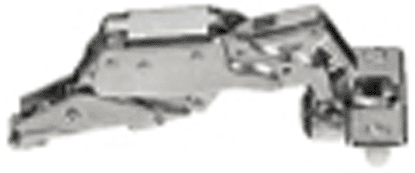

170 Degree Hinges - 35mm Cup, 45mm Hole Pattern
For face frame and frameless cabinets.
Solft close compatable, see below.
Opening angle can be restricted to 120 degree.
100% finger protection.
All metal hinge, zinc diecast, nickel plated.
|
Part Number
|
Swing
|
Degree
|
Attach
|
Type
|
Cup
|
Box Quantity
|
| GR146765650015 |
Self Closing
|
170
|
Twin Tooless
|
Full Overlay
|
35mm Cup 11mm Cup Depth
|
250
|
| GR148765540015 |
Self Closing
|
170
|
B45 Dowel
|
Full Overlay
|
35mm Cup 11mm Cup Depth
|
250
|
Nexis Hinges - 35mm Cup, 42mm Grass Hole Pattern
Cam height and depth adjustment with select base plates.
Stamped steel arm and cup with bright nickel finish.
Soft close compatable, see below.
|
Part Number
|
Swing
|
Degree
|
Attach
|
Type
|
Cup
|
Box Quantity
|
| GR6803014 |
Self Closing
|
110
|
G42 Dowel
|
Full Overlay
|
35mm Cup 11mm Cup Depth
|
250
|
| GR6803314 |
Self Closing
|
125
|
G42 Dowel
|
Full Overlay
|
35mm Cup 12mm Cup Depth
|
250
|
| GR6804208 |
Self Closing
|
170
|
G42 Dowel
|
Full Overlay
|
35mm Cup 11mm Cup Depth
|
250
|

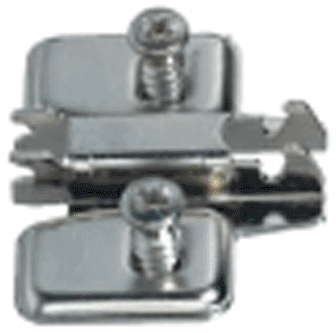

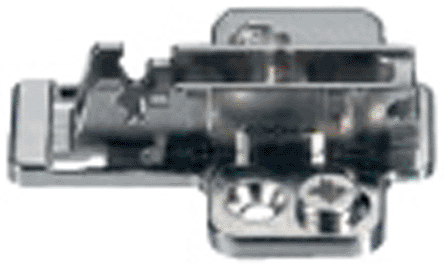

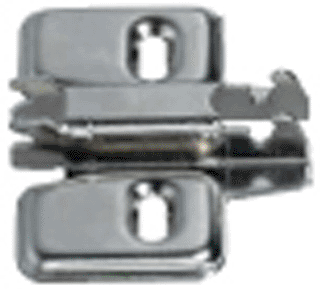

Mounting Plates
For use with all Grass Hinges shown above.
314393810015
314493710015
318493710015
318393810015
|
Attach
|
Type
|
0mm
|
2mm
|
Box Quantity
|
| Screw In |
Steel
|
GR314393810015 |
250
|
|
| Euro Screw Pre-Inserted |
Steel
|
GR318393810015 | GR318393810215 |
250
|
| Screw In |
Steel 3-D Adjustable
|
GR314493710015 | GR314493710215 |
250
|
| Euro Screw Pre-Inserted |
Steel 3-D Adjustable
|
GR318493710015 |
250
|

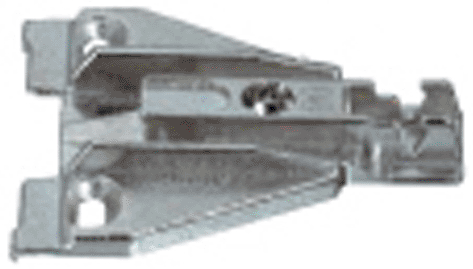

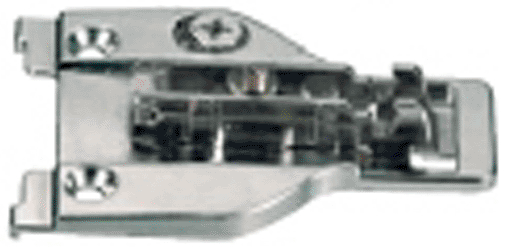

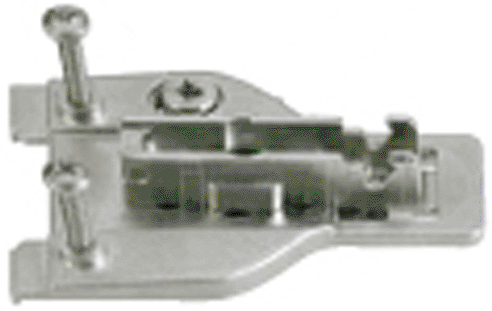

Face Frame Mounting Plates
346290880415
346290910415
346290920415
|
Attach
|
Type
|
4mm
|
Box Quantity
|
| Screw In |
Steel
|
GR346290880415 |
250
|
| Screw In |
Steel 3-D Adjustable
|
GR346290910415 |
250
|
| Screw In Premounted |
Steel 3-D Adjustable
|
GR346290920415 |
250
|

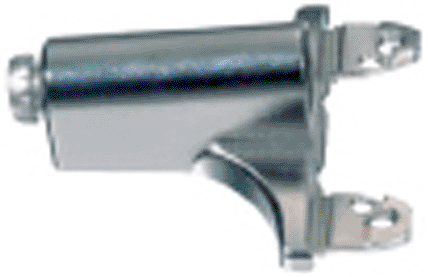

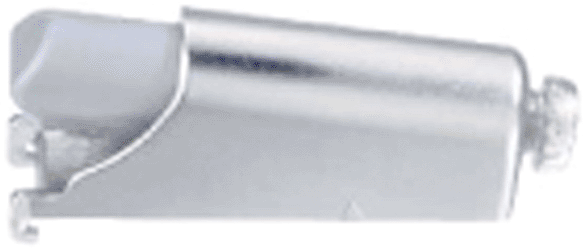

Soft Close
Twin Adapter and Damper
Click On Adapter
Adapter for 170 Degree Hinges
Works with all 110 Degree and 125 Degree Twin Hinges.
Works with all 110 Degree and 125 Degree Standard Hinges.
Works with all 170 Degree Tiwn and Standard Hinges.
Adapter works with Click On 65 and Twin 65 Hinge
Part Number: GR924200390215
Part Number: GR924200400215
UniSoft
Works for face frame cabinets on all door overlays.
Works for frameless cabinets on full overlay doors.
Works for frameless cabinets on full overlay doors.
250 per box
Part Number: GR1897114
*Recommended screws: 6x3/4 pan head

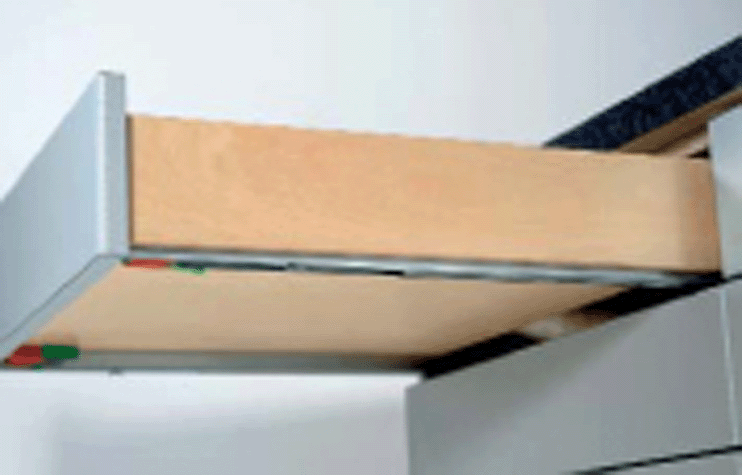

Grass Dynapro Soft Close Full Extension Slide
* Ridges on drawer member and front locking devices for immediate connection
* Support roller for uniform drawer front height
* Easy to open with a low pull-out force 20 N (4.4 lbs)
* Wide drawer member provides stability between cabinet and drawer member
* Wear resistant nylon rollers ensure quiet and precise running characteristics
* Minimal drawer front gap using the integrated 2-D adjustment
* Superior stability provided by 31 mm wide drawer members
* Face frame or framless application
* Full extension with a synchronized mechanism
* Soft-close damping system
* Maximum connection to drawer slide and front locking device
* Uniform height position of drawer front panel, regardless of weight
* Suitable for drawers up to 48" wide
* Integrated 2-dimensional (height and side) adjustment for alignment
* Height adjustment + 3.5 mm
* Side adjustment +/- 1.5 mm
* 88 lbs load rating (40 kg)
* For 5/8" (16 mm) drawer material
|
Part Number
|
Drawer Length
|
Box Quantity
|
| GRF130100733204 |
9"
|
5 pair
|
| GRF130100734204 |
12"
|
5 pair
|
| GRF130100735204 |
15"
|
5 pair
|
| GRF130100736204 |
18"
|
5 pair
|
| GRF130100737204 |
21"
|
5 pair
|

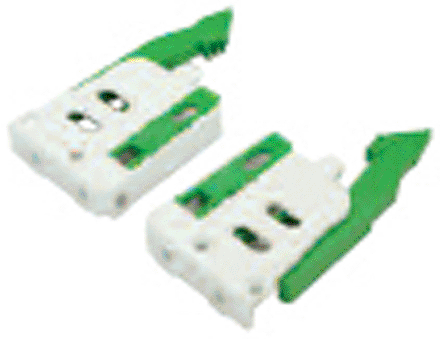

Dynapro Front Locking Device
Dynapro Narrow Front Locking Device
For standard width drawers
For standard width inset drawers
Minimum inside drawer width 180 mm
(7 3/32")
Pre-drilling recommended 2.5mm (3/32")
Packed 200 per box.
Left Front Locking Device
Part Number: GRF134125000233
Right Front Locking Device
Part Number: GRF134125001233
For narrow and standard width drawers
For narrow and standard width inset drawers
Minimum inside drawer width 95mm
(3 3/4")
Pre-drilling recommended 2.5mm (3/32")
Packed 200 per Box
Left Part Number: GRF134100699233
Right Part Number: GRF134100700233
Dynapro Rear Mount Sockets
Packed 150 pair per box.
Nova Pro
Available load capacities 88 lbs and 154 lbs dynamic.
Exclusive Airmatic controlled closing.
Tool-free front removal and installation.

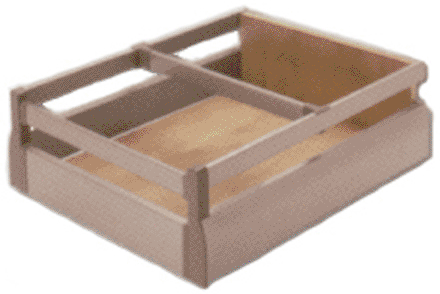

Tool-free railing and divider installation.
Cabinet member sets and drawer member sets sold separately.
Stocking in high gloss Champagne.
Stocking in 18", 20", and 22" lengths.
Stocking in 3 1/2" and 4 7/8" heights.

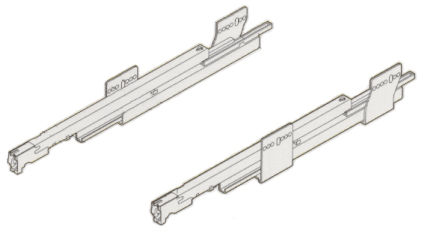

Cabinet Member
|
Part Number
|
Description
|
Size Inches
|
Size MM
|
Finish
|
Box Quantity
|
| GR6366704 |
Nova Cabinet
|
18"
|
450 mm
|
Zinc
|
10 pair
|
| GR6366804 |
Nova Cabinet
|
20"
|
500 mm
|
Zinc
|
10 pair
|
| GR6366904 |
Nova Cabinet
|
22"
|
550 mm
|
Zinc
|
10 pair
|
Drawer Member
|
Part Number
|
Description
|
Finish
|
Box Quantity
|
| GR6855804 |
90mm x 450mm Nova Drawer
|
Champagne
|
10 pair
|
| GR6856104 |
90mm x 500mm Nova Drawer
|
Champagne
|
10 pair
|
| GR6856404 |
90mm x 550mm Nova Drawer
|
Champagne
|
10 pair
|
|
Part Number
|
Description
|
Finish
|
Box Quantity
|
| GR6857004 |
122mm x 450mm Nova Drawer
|
Champagne
|
10 pair
|
| GR6857304 |
122mm x 500mm Nova Drawer
|
Champagne
|
10 pair
|
| GR6857604 |
122mm x 550mm Nova Drawer
|
Champagne
|
10 pair
|
Nova Pro - Brackets
Part Number: GR2185442
Packed 100 per box.
Part Number: GR2185587
Packed 100 per box.

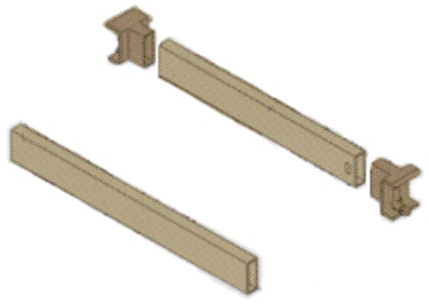

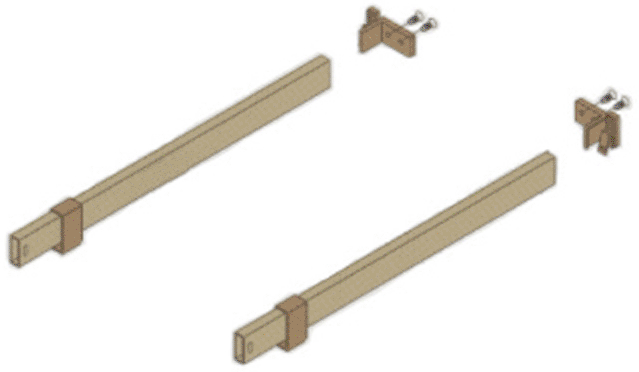

Nova Pro Rail
Champagne
Part Number: GR6858304
10 sets per box.
Champagne
Part Number: GR6858704
10 sets per box.
Zargen - Drawer Slides
Integrated drawer slide and side panel.
Self-closing feature with 60mm (2 5/8") self-closing range.
Includes built-in drawer front adjustment and bumpers.
Doweled for rapid assembly.
Adapts to frame or frameless construction.
Available in white baked-on epoxy finish.
Silent Glide® roller for smooth, quiet ride.
Zargen 6036
|
Part Number
|
Description
|
Drawer Slide Side Height
|
Color
|
Box Quantity
|
| GR1189504 |
270 mm Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
| GR1189604 |
350 mm Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
| GR1284904 |
400 mm Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
| GR1285004 |
440 mm Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
| GR1285104 |
470 mm Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
| GR1285204 |
510 mm Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
| GR1190104 |
550 mm Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
Zargen 6136
|
Part Number
|
Description
|
Drawer Slide Side Height
|
Color
|
Box Quantity
|
| GR2290603 |
350 mm Zargen 6136 Slide
|
4 5/8"
|
White
|
5 sets
|
| GR2290703 |
400 mm Zargen 6136 Slide
|
4 5/8"
|
White
|
5 sets
|
| GR2270003 |
440 mm Zargen 6136 Slide
|
4 5/8"
|
White
|
5 sets
|
| GR2270103 |
470 mm Zargen 6136 Slide
|
4 5/8"
|
White
|
5 sets
|
| GR2270203 |
510 mm Zargen 6136 Slide
|
4 5/8"
|
White
|
5 sets
|
| GR2270303 |
550 mm Zargen 6136 Slide
|
4 5/8"
|
White
|
5 sets
|
Zargen 6236
|
Part Number
|
Description
|
Drawer Slide Side Height
|
Color
|
Box Quantity
|
| GR2290803 |
350 mm Zargen 6236 Slide
|
5 7/8"
|
White
|
5 sets
|
| GR2290903 |
400 mm Zargen 6236 Slide
|
5 7/8"
|
White
|
5 sets
|
| GR2270403 |
440 mm Zargen 6236 Slide
|
5 7/8"
|
White
|
5 sets
|
| GR2270503 |
470 mm Zargen 6236 Slide
|
5 7/8"
|
White
|
5 sets
|
| GR2270603 |
510 mm Zargen 6236 Slide
|
5 7/8"
|
White
|
5 sets
|
| GR2270703 |
550 mm Zargen 6236 Slide
|
5 7/8"
|
White
|
5 sets
|
Zargen 6436
|
Part Number
|
Description
|
Drawer Slide Side Height
|
Color
|
Box Quantity
|
| GR2291003 |
350 mm Zargen 6436 Slide
|
8 3/8"
|
White
|
5 sets
|
| GR2291103 |
400 mm Zargen 6436 Slide
|
8 3/8"
|
White
|
5 sets
|
| GR2270803 |
440 mm Zargen 6436 Slide
|
8 3/8"
|
White
|
5 sets
|
| GR2270903 |
470 mm Zargen 6436 Slide
|
8 3/8"
|
White
|
5 sets
|
| GR2271003 |
510 mm Zargen 6436 Slide
|
8 3/8"
|
White
|
5 sets
|
| GR2271103 |
550 mm Zargen 6436 Slide
|
8 3/8"
|
White
|
5 sets
|
