Router Bits
Multi-Rabbet Bits With Ball Bearing Guide
Chamfer Bits 2 Flute With Ball Bearing Guide
Sold individually
Sold individually
|
Part Number
|
Cutting Diameter Inches
|
Rabbet Length Inches
|
Shank Diameter Inches
|
Depth of Rabbet Inches
|
Overall Length Inches
|
| 5224A49350 |
1 1/2"
|
1/2"
|
1/4"
|
1/8", 1/4", 5/16", 3/8", 7/16", 1/2"
|
2 3/16"
|
|
Part Number
|
Angle
|
Cutting Diameter Inches
|
Carbide Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A49402 |
45°
|
1 1/4"
|
5/8"
|
1/2"
|
2 3/8"
|

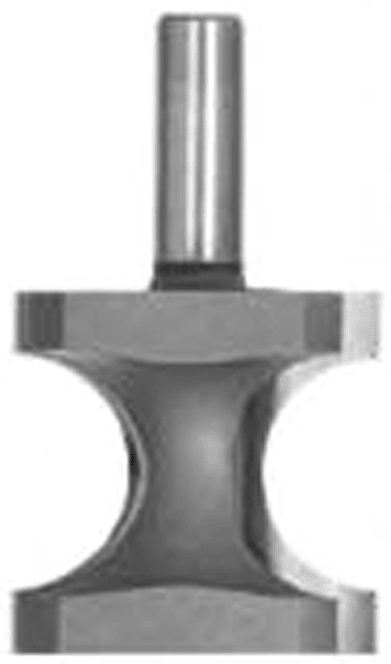

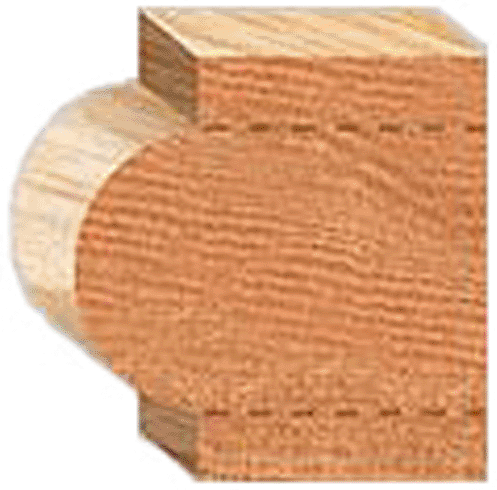

Bullnose Bits
Core Box Bits
2-Flute
Sold individually
Sold individually
2-Flute
Sold individually
Sold individually
|
Part Number
|
Radius
|
Overall Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A51544 |
9/64"
|
21/32"
|
3/4"
|
1/4"
|
1 7/8"
|
|
Part Number
|
Cutting Diameter Inches
|
Radius Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A45910 |
1/2"
|
1/4"
|
3/8"
|
1/4"
|
1 1/2"
|

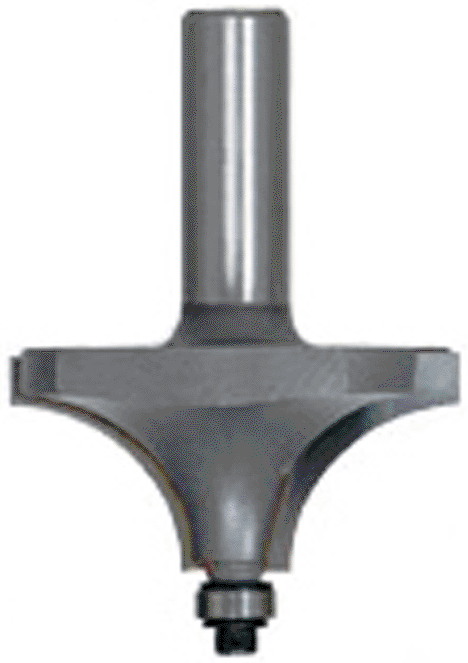

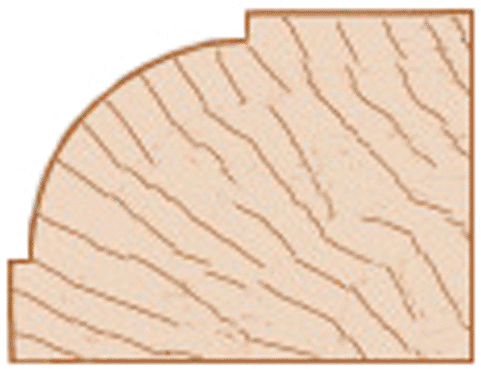

Corner Rounding Bits With Ball Bearing Guide
Cove Bits With Ball Bearing Guide
2-Flute
Sold individually
Sold individually
2-Flute
Sold individually
Sold individually
|
Part Number
|
Cutting Diameter Inches
|
Radius Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A49496 |
3/4"
|
1/8"
|
3/8"
|
1/4"
|
2"
|
| 5224A49504 |
1"
|
1/4"
|
1/2"
|
1/4"
|
2"
|
| 5224A49512 |
1 1/4"
|
3/8"
|
5/8"
|
1/4"
|
2 3/16"
|
| 5224A49514 |
1 1/4"
|
3/8"
|
5/8"
|
1/2"
|
2 9/16"
|
| 5224A49520 |
2"
|
3/4"
|
1"
|
1/2"
|
2 7/8"
|
|
Part Number
|
Radius Inches
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A49104 |
1/4"
|
7/8"
|
9/16"
|
1/4"
|
2"
|
| 5224A49112 |
3/8"
|
1 1/8"
|
9/16"
|
1/4"
|
2"
|
| 5224A49116 |
1/2"
|
1 3/8"
|
3/4"
|
1/4"
|
2 1/4"
|
Roman Ogee Bits With Ball Bearing Guide
Beading Bit With Ball Bearing Guide
2-Flute
Sold individually
Sold individually
2-Flute
Sold individually
Sold individually
|
Part Number
|
Radius Inches
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A49200 |
5/32"
|
1"
|
5/8"
|
1/4"
|
2 1/8"
|
| 5224A49202 |
5/32"
|
1"
|
5/8"
|
1/2"
|
2 1/2"
|
| 5224A49204 |
1/4"
|
1 3/8"
|
7/8"
|
1/4"
|
2 1/4"
|
|
Part Number
|
Radius Inches
|
Large Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A49604 |
1/4"
|
1"
|
1/2"
|
1/4"
|
2"
|
Beading Router Bit

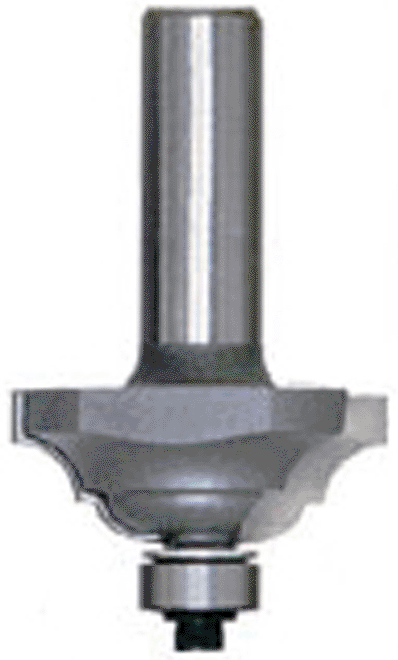

Classical Cove and Bead Bits With Ball Bearing Guide
2-Flute
Sold individually
Sold individually
|
Part Number
|
Radius
Inches |
Large
Diameter Inches |
Cutting
Length Inches |
Shank
Diameter Inches |
Overall
Length Inches |
| 5224A56178 |
5/16"
|
1 1/8"
|
9/16"
|
1/2"
|
2 3/4"
|
|
Part Number
|
Overall Diameter Inches
|
Radius Inches
|
Shank Diameter Inches
|
Radius Inches
|
Overall Length Inches
|
| 5224A54130 |
1 3/8"
|
7/32"
|
1/4"
|
1/4"
|
2 3/16"
|

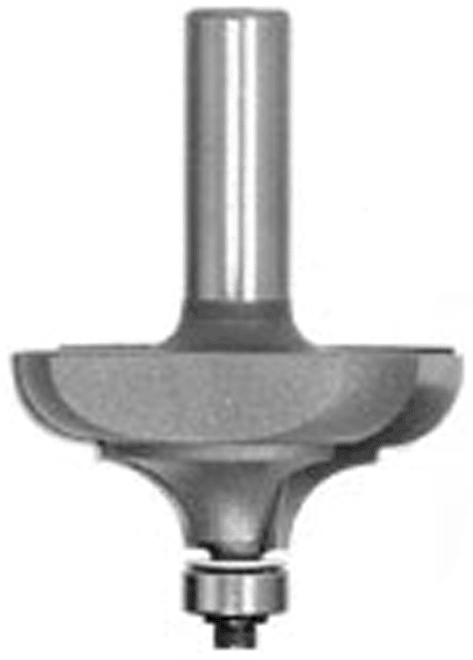

Classical Bead and Cove Bits With Ball Bearing Guide
2-Flute
Sold individually
Sold individually
Steel Ball Bearing Guides
Sold individually
|
Part Number
|
Inside
Diameter Inches |
Outside Diameter Inches
|
| 5224A47701 |
1/4"
|
1/2"
|
| 5224A47702 |
3/16"
|
3/8"
|
| 5224A47708 |
5/16"
|
7/8"
|
| 5224A47714 |
1/4"
|
3/4"
|
| 5224A47738 |
1/2"
|
1 1/8"
|
|
Part Number
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Radius Inches
|
Overall Length Inches
|
| 5224A54106 |
1 1/2"
|
5/8"
|
1/4"
|
7/32"
|
2 1/8"
|
