U.S. Industrial Fasteners of Arizona, Inc.
 |
Shutter Hardware

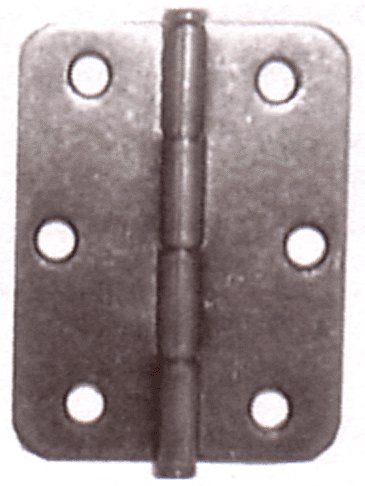

Round Cornered Hinges
Full Swage
H080352X
H0325801/H0825801
Flat Back
|
Part Number
|
Length
|
Width
|
Material
Thickness |
Pin
Diameter |
Swage
|
Recommended
Screw |
Case
Quantity |
Case
Weight |
Finish
|
| 7124H080352X0AB |
2"
|
1 13/16"
|
0.04
|
0.09
|
Flat
|
6x3/4 Flat
|
500
|
51 lbs
|
Antique Brass
|
| 7124H0325801 |
2 1/2"
|
2"
|
0.065
|
0.12
|
Full
|
6x3/4 Flat
|
400
|
60 lbs
|
Bright Brass
|
| 7124H0325801P |
2 1/2"
|
2"
|
0.065
|
0.12
|
Full
|
6x3/4 Flat
|
400
|
60 lbs
|
Prime Coat
|
Nonmortise Hinges Tight Pin
Flat Back
|
Part Number
|
Length
|
Width
|
Material
Thickness |
Pin
Diameter |
Swage
|
Recommended
Screw |
Case
Quantity |
Case
Weight |
Finish
|
| 7124H0303105AB |
2"
|
1 3/8"
|
0.05
|
0.12
|
Flat Back
|
4x5/8 Flat
|
2,000
|
81 lbs
|
Antique Brass
|
| 7124H0303105SB |
2"
|
1 3/8"
|
0.05
|
0.12
|
Flat Back
|
4x5/8 Flat
|
2,000
|
81 lbs
|
Stat Bronze
|
| 7124H0303205SB |
2 1/2"
|
1 1/2"
|
0.054
|
0.098
|
Flat Back
|
5x5/8 Flat
|
1,000
|
56 lbs
|
Stat Bronze
|
| 7124H0303205 |
2 1/2"
|
1 1/2"
|
0.054
|
0.098
|
Flat Back
|
5x5/8 Flat
|
1,000
|
56 lbs
|
Bright Brass
|
| 7124H0303305SB |
3"
|
1 13/16"
|
0.064
|
0.102
|
Flat Back
|
5x5/8 Flat
|
500
|
49 lbs
|
Stat Bronze
|
| 7124H0303305 |
3"
|
1 13/16"
|
0.064
|
0.102
|
Flat Back
|
5x5/8 Flat
|
500
|
49 lbs
|
Bright Brass
|
| 7124H0303A81 |
3"
|
2 1/8"
|
0.060
|
0.150
|
Flat Back
|
6x5/8 Flat
|
300
|
60 lbs
|
Bright Brass
|
| 7124H0303C819W4 |
3"
|
2 1/8"
|
0.060
|
0.150
|
Flat Back
|
6x5/8 Flat
|
300
|
60 lbs
|
White
|
| 7124H0303C819V4 |
3"
|
2 1/8"
|
0.060
|
0.150
|
Flat Back
|
6x5/8 Flat
|
300
|
60 lbs
|
Cottage White
|
| 7124H0303A81AB |
3"
|
2 1/8"
|
0.060
|
0.150
|
Flat Back
|
6x5/8 Flat
|
300
|
60 lbs
|
Antique Brass
|
| 7124H0303A81NK |
3"
|
2 1/8"
|
0.060
|
0.150
|
Flat Back
|
6x5/8 Flat
|
300
|
60 lbs
|
Nickel
|

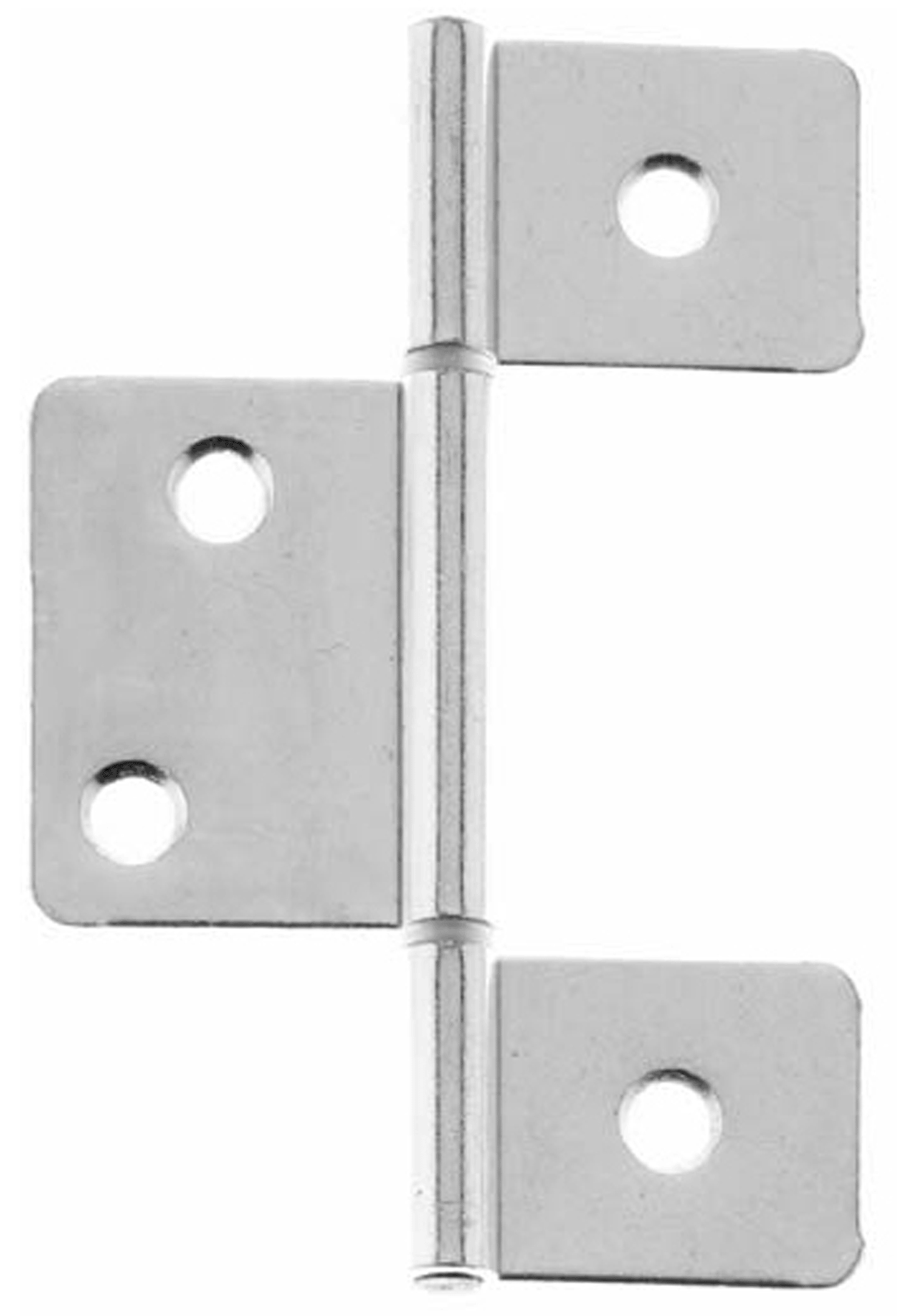

Nonmortise Hinges Tight Pin
|
Part Number
|
Length
|
Width
|
Material
Thickness |
Pin
Diameter |
Swage
|
Recommended
Screw |
Case
Quantity |
Case
Weight |
Finish
|
| 7124H0303970 |
3 1/2"
|
2 1/4"
|
0.05
|
0.12
|
Full
|
6x5/8 Flat
|
500
|
89 lbs
|
Bright Brass
|
| 7124H0303970AB |
3 1/2"
|
2 1/4"
|
0.05
|
0.12
|
Full
|
6x5/8 Flat
|
500
|
89 lbs
|
Antique Brass
|
| 7124H0303970BZ |
3 1/2"
|
2 1/4"
|
0.05
|
0.12
|
Full
|
6x5/8 Flat
|
500
|
89 lbs
|
Rubbed Bronze
|
| 7124H0303970NKL |
3 1/2"
|
2 1/4"
|
0.05
|
0.12
|
Full
|
6x5/8 Flat
|
500
|
89 lbs
|
Nickel
|
| 7124H0303970WH |
3 1/2"
|
2 1/4"
|
0.05
|
0.12
|
Full
|
6x5/8 Flat
|
500
|
89 lbs
|
White
|
Unequal Leaf Wrap-A-Round Sheared Hinges
|
Part Number
|
Length
|
Door
Thickness |
Material
Thickness |
Pin
Diameter |
Return
|
Recommended
Screw |
Case
Quantity |
Case
Weight |
Finish
|
| 7124H0362443BK |
1 1/2"
|
5/8"
|
0.052
|
0.09
|
7/8"
|
5x5/8 Flat
|
500
|
45 lbs
|
Black
|
| 7124H0362443 |
1 1/2"
|
5/8"
|
0.052
|
0.09
|
7/8"
|
5x5/8 Flat
|
500
|
45 lbs
|
Bright Brass
|
| 7124H0367340AB |
1 1/2"
|
3/4"
|
0.052
|
0.09
|
1 1/4"
|
5x5/8 Flat
|
400
|
28 lbs
|
Antique Brass
|

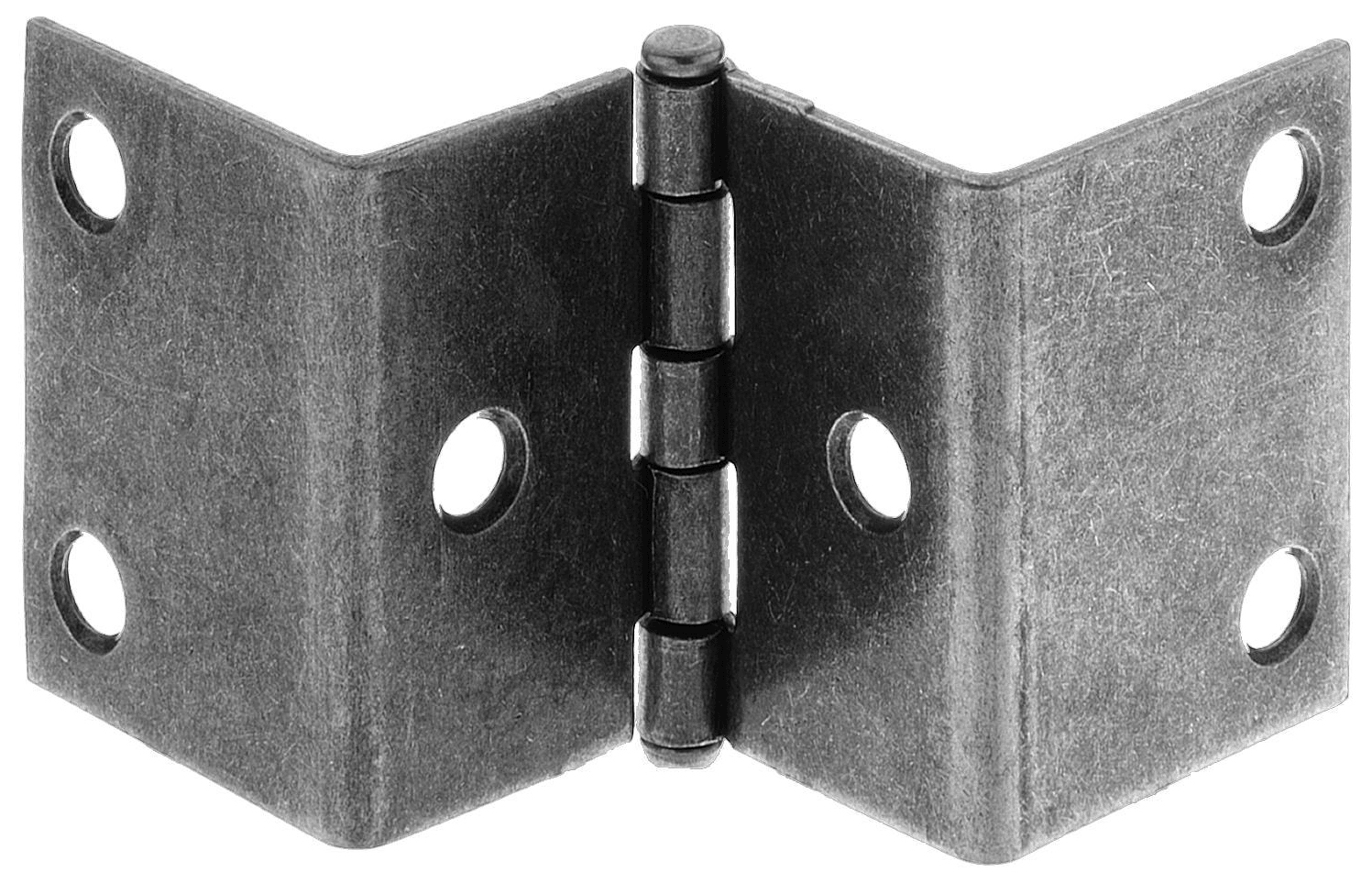

Double Wrap-A-Round Hinges
|
Part Number
|
Length
|
Door
Thickness |
Material
Thickness |
Pin
Diameter |
Return
|
Recommended
Screw |
Case
Quantity |
Case
Weight |
Finish
|
| 7124H0363F53ABC |
1 1/2"
|
5/8"
|
0.05
|
0.098
|
1 1/4"
|
5x5/8 Flat
|
300
|
37 lbs
|
Antique Brass Crimped
|
| 7124H0363853 |
1 1/2"
|
3/4"
|
0.05
|
0.098
|
1 3/32"
|
5x5/8 Flat
|
300
|
37 lbs
|
Bright Brass
|
| 7124H0363853AB |
1 1/2"
|
3/4"
|
0.05
|
0.098
|
1 3/32"
|
5x5/8 Flat
|
300
|
37 lbs
|
Antique Brass
|
Wrap Hinges - 270 Degree of Opening
|
Part Number
|
Size
|
Finish
|
Recommended
Screw |
Case Quantity
|
| 7123270AB |
3/4" x 3/4" x 2"
|
Antique Brass
|
6x3/4 Flat
|
200
|
| 7123270BK |
3/4" x 3/4" x 2"
|
Black
|
6x3/4 Flat
|
200
|
| 7124H089MX83BLK |
5/8" x 5/8" x 2"
|
Black
|
6x3/4 Flat
|
200
|

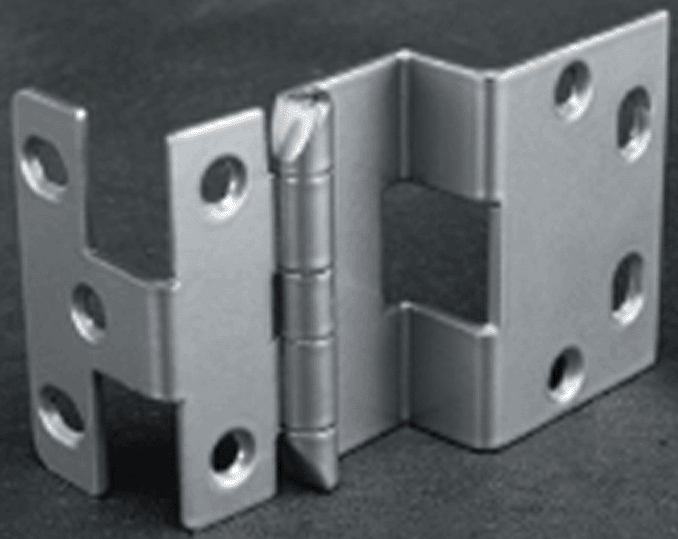

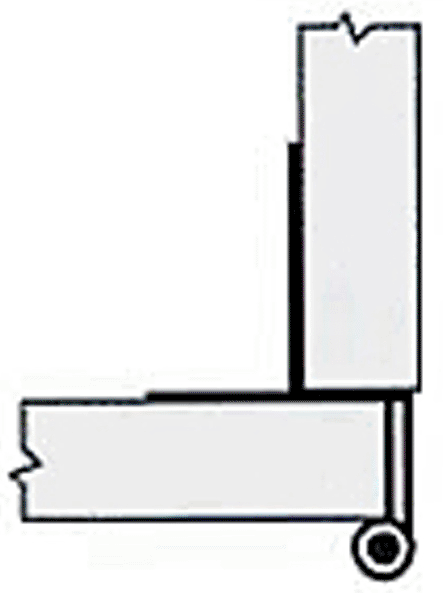

Institutional Hinges
.095 Steel
Hospital Tips
|
Part Number
|
Size
|
Side Panel
|
Door Thickness
|
Overlay
|
Brand
|
Designed For
|
Finish
|
Recommended Screw
|
Box Quantity
|
| 712385626D |
2 3/4"
|
3/4"
|
13/16"
|
23/32"
|
RPC
|
32mm System
|
Chrome
|
8x3/4 Flat
|
100
|
| 7123H76045DC |
2 3/4"
|
3/4"
|
13/16"
|
23/32"
|
Import
|
32mm System
|
Dull Chrome
|
8x3/4 Flat
|
100
|
| 7123456SC |
2 3/4"
|
3/4"
|
13/16"
|
23/32"
|
Import
|
32mm & 45mm Systems
|
Satin Chrome
|
8x3/4 Flat
|
100
|
Terry Hinge - Sheared Pin Butt Hinges
|
Part Number
|
Length
|
Open
Width |
Material
Thickness |
Pin
Diameter |
Swage
|
Recommended
Screw |
Case
Quantity |
Case
Weight |
Finish
|
| 7124H0330200BK |
1 1/2"
|
1 3/8"
|
0.042
|
0.09
|
Flat
|
5x5/8 Flat
|
400
|
14#
|
Black
|
| 7124H0330200ZN |
1 1/2"
|
1 3/8"
|
0.042
|
0.09
|
Flat
|
5x5/8 Flat
|
400
|
14#
|
Zinc
|
| 7124H0330200 |
1 1/2"
|
1 3/8"
|
0.042
|
0.09
|
Flat
|
5x5/8 Flat
|
400
|
14#
|
Bright Brass
|
| 7124H0330300Z |
1 1/2"
|
1 7/8"
|
0.042
|
0.09
|
Flat
|
5x5/8 Flat
|
400
|
14#
|
Zinc
|
| 7124H0330500 |
2"
|
1 13/16"
|
0.042
|
0.09
|
Flat
|
5x5/8 Flat
|
400
|
24#
|
Bright Brass
|

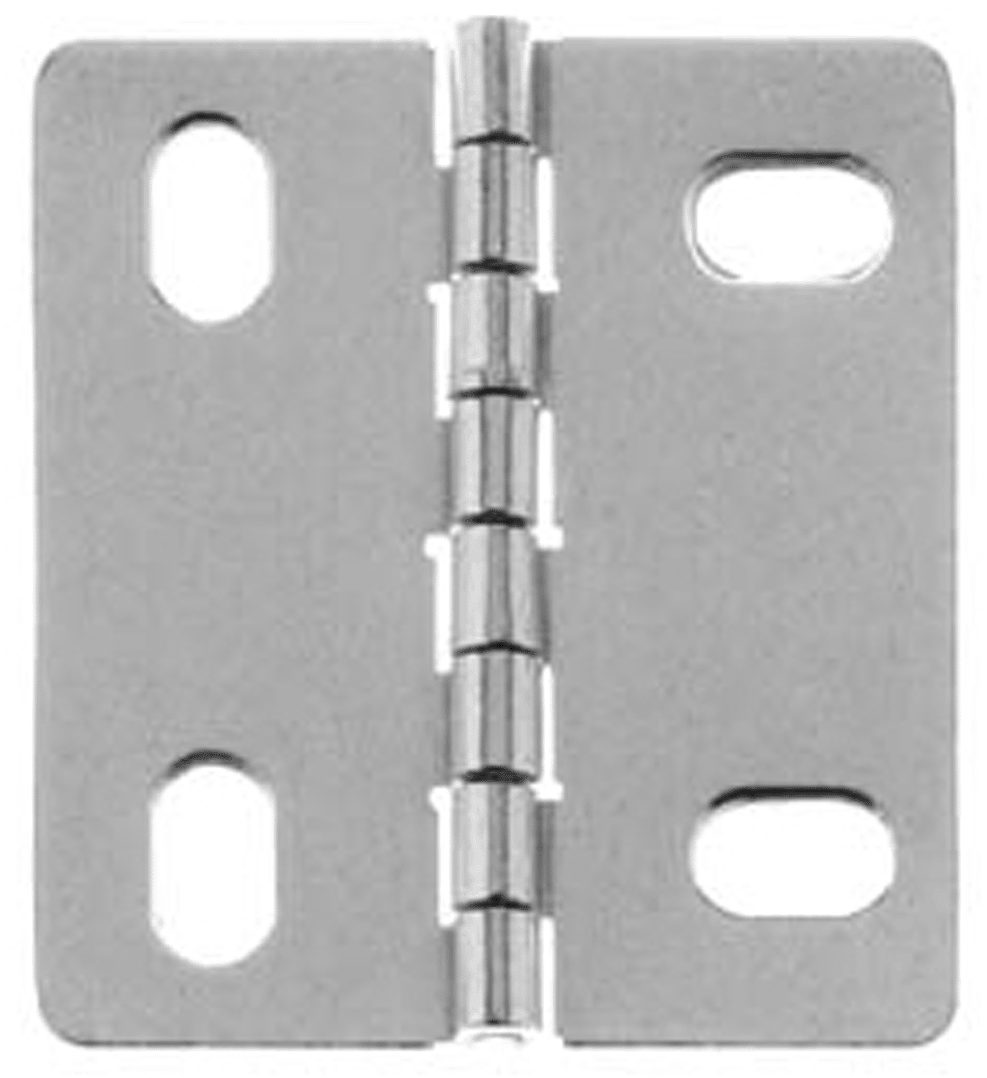

Terry Hinge - Tight Pin Butt Hinges
|
Part Number
|
Length
|
Open
Width |
Pin
Diameter |
Swage
|
Recommended
Screw |
Case
Quantity |
Case
Weight |
Finish
|
| 7124 H080352X0AB |
2"
|
1 13/16"
|
0.09
|
Flat
|
6x5/8 Flat
|
500
|
56#
|
Antique Brass
|
| 7124H083852X0BLK |
2"
|
1 13/16"
|
0.09
|
Flat
|
6x5/8 Flat
|
500
|
56#
|
Black
|
| 7124H0355453B |
2 1/2"
|
1 11/16"
|
0.12
|
Full
|
6x5/8 Flat
|
100
|
10#
|
Black
|
| 7124H0350454MAB |
2 1/2"
|
1 9/16"
|
0.12
|
Full
|
6x5/8 Flat
|
400
|
34#
|
Antique Brass with Minaret
|
| 7124H0340753 |
2 1/2"
|
2"
|
0.12
|
Full
|
6x5/8 Flat
|
500
|
48#
|
Bright Brass
|
Large Butt Hinges
|
Part Number
|
Length
|
Width
|
Finish
|
Recommended Screw
|
Case Quantity
|
| 7122282806R |
3"
|
3"
|
Bright Brass
|
8x3/4 Flat
|
100
|
| 7122303006R |
3 1/2"
|
3 1/2"
|
Bright Brass
|
8x3/4 Flat
|
100
|
