Casters & Levelers
Nylon Twin Wheel Casters - Friction
Nylon Twin Wheel Casters - 3/4 U Channel
|
Part Number
|
Size
|
Load Capacity
|
Color
|
Case
Quantity |
| 71482408F |
50mm
|
75 lbs
|
Black Hood
|
140
|
| 71482408FAB |
50mm
|
75 lbs
|
Antique Brass Hood
|
140
|
|
Part Number
|
Size
|
Load Capacity
|
Color
|
Case Quantity
|
| 71482408U |
50mm
|
75 lbs
|
Black Hood
|
140
|

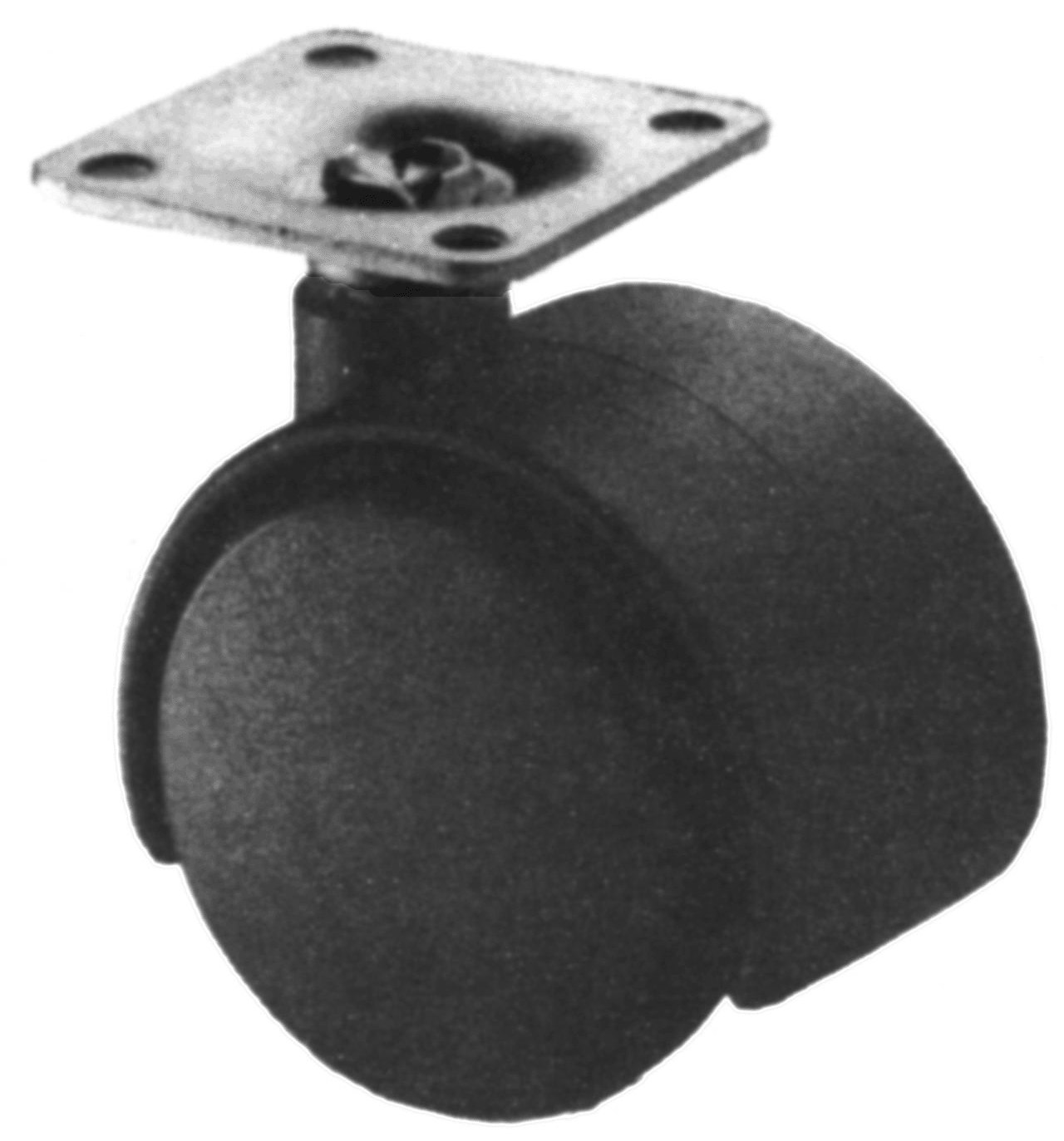

Nylon Twin Wheel Casters - Plate
Nylon Twin Wheel Casters - Stem and Plastic Socket
Kit contains 4 Casters and 4 Plastic Stem Inserts
|
Part Number
|
Size
|
Load
Capacity |
Color
|
Case
Quantity |
| 71484108 |
40mm
|
75 lbs
|
Black Hood
|
200
|
| 71482408H |
50mm
|
75 lbs
|
Black Hood
|
200
|
| 71482408B |
50mm
|
75 lbs
|
Black Hood and Brake
|
200
|
| 71486008 |
60mm
|
75 lbs
|
Black Hood
|
200
|
|
Part Number
|
Size
|
Load Capacity
|
Color
|
Case Quantity
|
| 71482408SK |
50mm
|
75 lbs
|
Black Hood
|
200
|

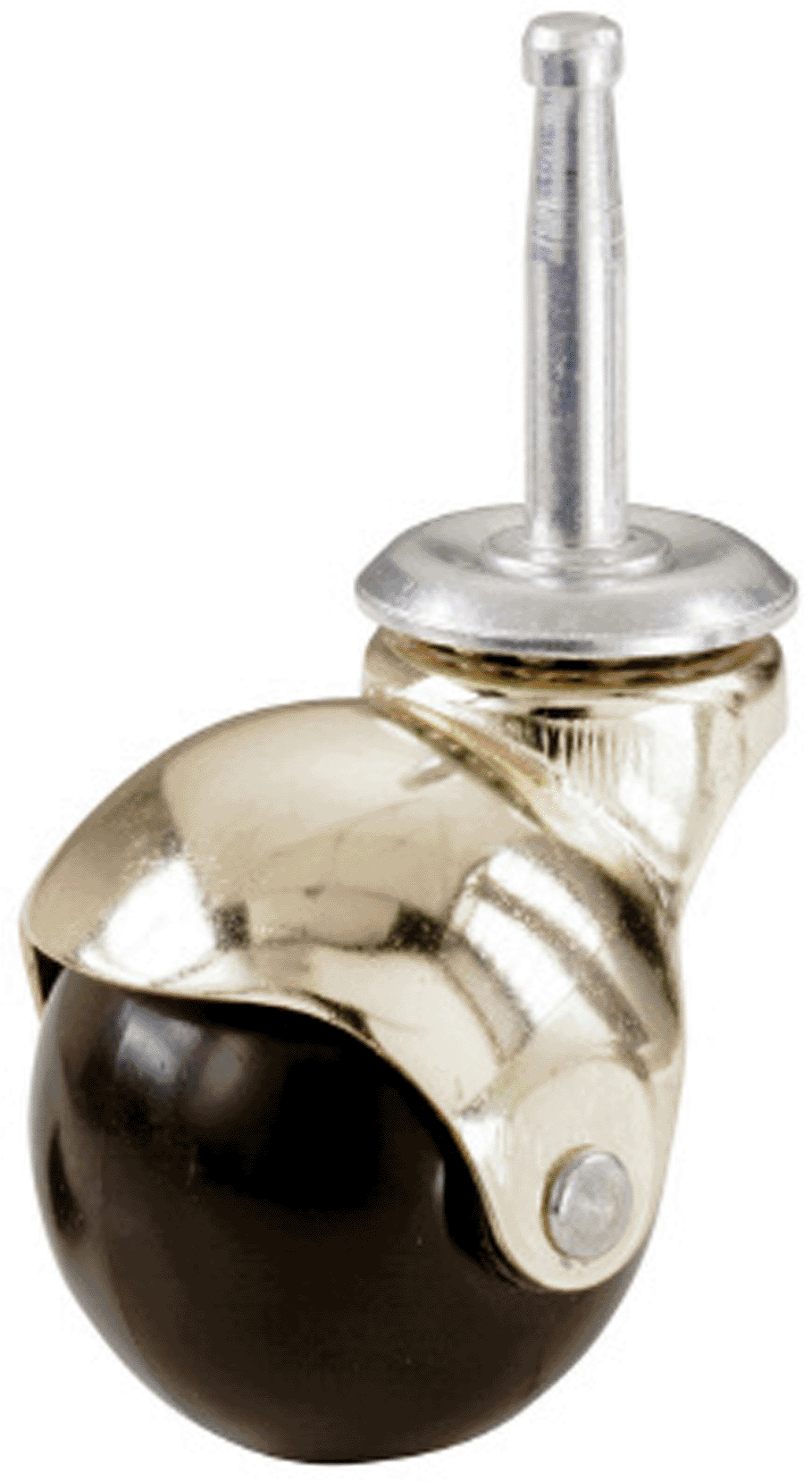

Hooded Ball Casters
Insert.
Part Number: 71482408SIM
Insert.
Part Number: 71482408SI
Stem and Metal Socket
Nylon Twin Wheel Casters - Threaded
5/16-18 Threaded
|
Part Number
|
Size
|
Load Capacity
|
Color
|
Case Quantity
|
| 71482106BS |
41mm
|
40 lbs
|
Bright Brass
|
120
|
| 71482406BS |
50mm
|
60 lbs
|
Bright Brass
|
120
|
| 71482402BS |
50mm
|
60 lbs
|
Chrome
|
120
|
|
Part Number
|
Size
|
Load
Capacity |
Color
|
Case
Quantity |
| 71484108TB |
41mm
|
75 lbs
|
Black Hood and Brake
|
200
|
| 71482408T |
50mm
|
75 lbs
|
Black Hood
|
200
|

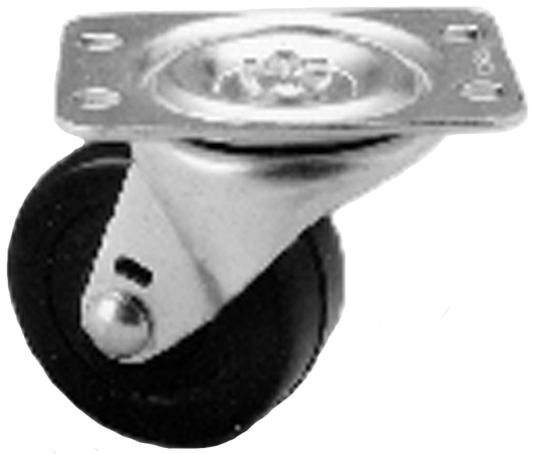

General Duty Casters
Available in soft rubber, plastic, non-marking, and steel wheels.
Stocked in rigid, swivel, and swivel with brake.
Zinc plated with metal ball bearing.
|
Part Number
|
Wheel Size
|
Type
|
Load Capacity
|
Plate Size
|
Hole Spacing
|
Bolt Size
|
Swivel Radius
|
Overall Height
|
| 7148CGD20HRS |
2"
|
Swivel
|
125 lbs
|
1 7/8" x 2 9/16"
|
1 5/16" x 2 1/8"
|
1/4"
|
2 5/8"
|
2 7/16"
|
| 7148CGD20HRSB |
2"
|
Swivel with Brake
|
125 lbs
|
1 7/8" x 2 9/16"
|
1 5/16" x 2 1/8"
|
1/4"
|
2 5/8"
|
2 7/16"
|
| 7148CGD20HRR |
2"
|
Rigid
|
125 lbs
|
1 1/2" x 2 1/32"
|
1 5/16" x 2 1/8"
|
1/4"
|
Rigid
|
2 7/16"
|
| 7148CGD25HRS |
2 1/2"
|
Swivel
|
175 lbs
|
2 3/4" x 3 7/8"
|
1 3/4" x 3"
|
5/16"
|
2 3/8"
|
3 1/4"
|
| 7148CGD25HRSB |
2 1/2"
|
Swivel with Brake
|
175 lbs
|
2 3/4" x 3 7/8"
|
1 3/4" x 3"
|
5/16"
|
2 3/8"
|
3 1/4"
|
| 7148CGD25HRR |
2 1/2"
|
Rigid
|
175 lbs
|
2 1/4" x 4 7/16"
|
1 1/16" x 3 1/2"
|
5/16"
|
Rigid
|
3 1/4"
|
| 7148CGD30HRS |
3"
|
Swivel
|
250 lbs
|
3 1/8" x 4 1/8"
|
2 3/8" x 3 3/8"
|
5/16"
|
2 7/16"
|
3 3/4"
|
| 7148CGD30HRSB |
3"
|
Swivel with Brake
|
250 lbs
|
3 1/8" x 4 1/8"
|
2 3/8" x 3 3/8"
|
5/16"
|
2 7/16"
|
3 3/4"
|
| 7148CGD30HRR |
3"
|
Rigid
|
250 lbs
|
2 1/2" x 4 15/16"
|
1 3/16" x 4"
|
5/16"
|
Rigid
|
3 3/4"
|
| 7148CGD40HRS |
4"
|
Swivel
|
300 lbs
|
4" x 5 1/8"
|
3" x 4"
|
3/8"
|
3"
|
5"
|
| 7148CGD40HRSB |
4"
|
Swivel with Brake
|
300 lbs
|
4" x 5 1/8"
|
3" x 4"
|
3/8"
|
3"
|
5"
|
| 7148CGD40HRR |
4"
|
Rigid
|
300 lbs
|
3 1/8" x 6 1/4"
|
1 3/4" x 5"
|
3/8"
|
Rigid
|
5"
|

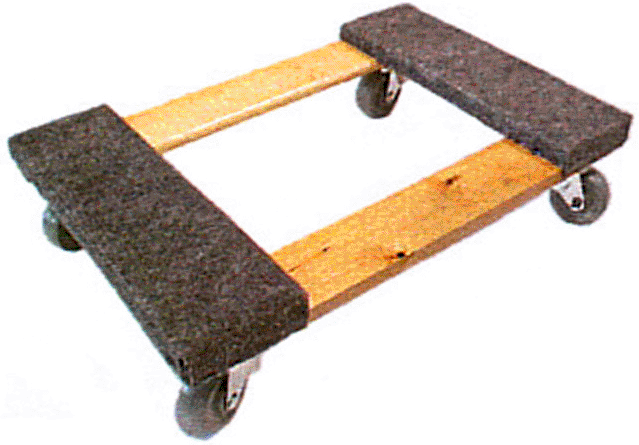

Carpet Covered Dollies
|
Size
|
Part Number
|
Load Capacity
|
Wheel Size
|
Wheel Type
|
|
16" x 24"
|
7148DL31624RS |
600 lbs
|
3"
|
Rubber
|
| 19" x 31" | 7148DL41931MS |
1,000 lbs
|
4"
|
Non-Marking
|
DL31624
DL41931
Support Bracket - Zinc

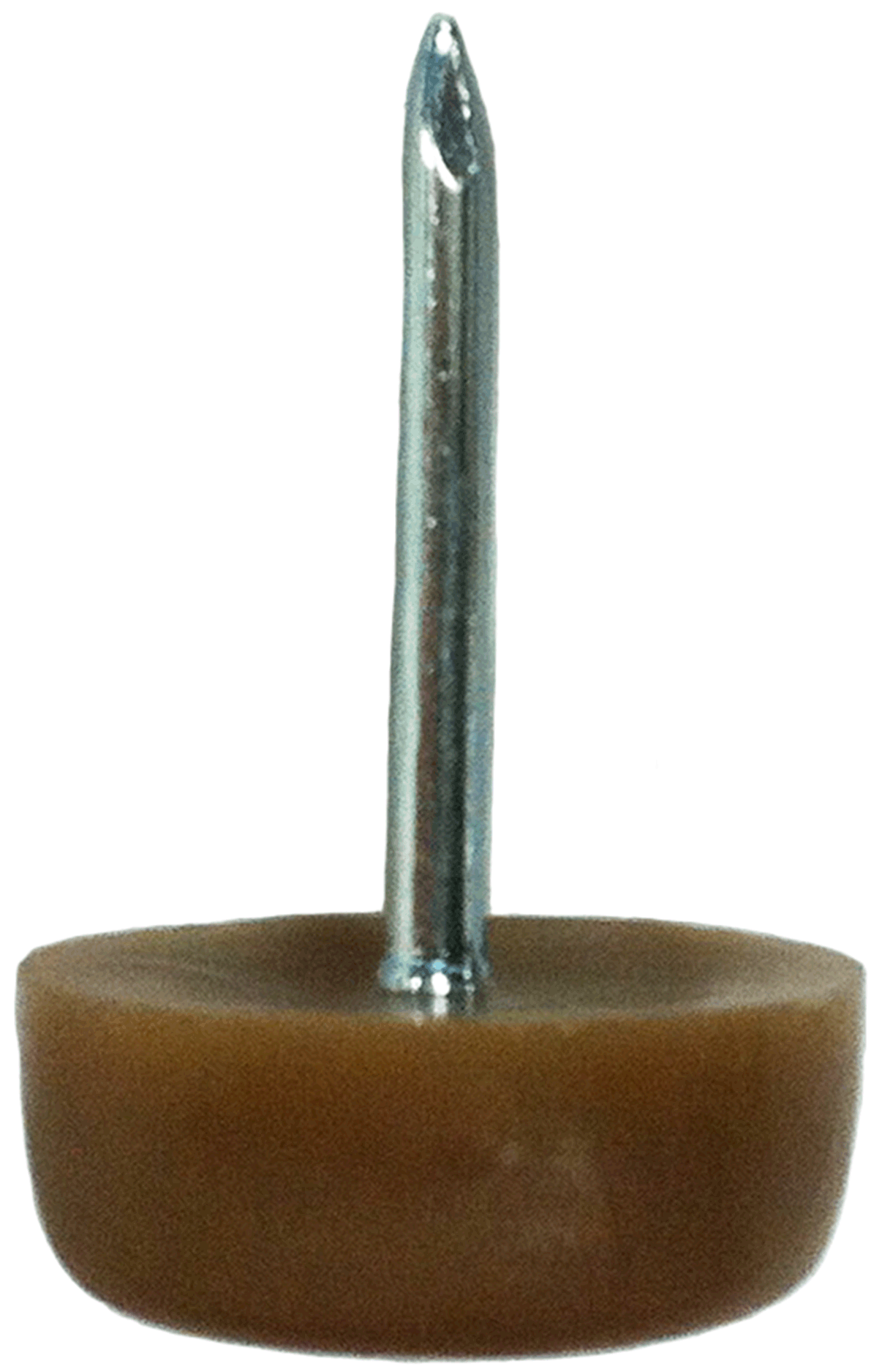

Tack Glide - Flat
|
Base
Width |
Part Number
|
Case
Quantity |
| 5/8" | 714710F |
5,000
|
| 3/4" | 714712F |
5,000
|
| 7/8" | 714714F |
4,000
|
Width: 1 5/8"
Depth: 1 1/2"
Part Number: 715026UB
Tack Glide - Round
Corner Bracket - Zinc
|
Base
Width |
Part Number
|
Case
Quantity |
| 1/2" | 714708R |
10,000
|
| 5/8" | 714710R |
5,000
|
| 3/4" | 714712R |
5,000
|
| 1" | 714716R |
4,000
|
Width: 2 53/64" x 2 53/64"
Depth: 13/16"
Part Number: 715026CB
Floor Glides - Type A
Tack Glide - Round Metal
|
Part Number
|
Stem
Thread |
Stem
Length |
Base
Width |
Case
Quantity |
| 71502620 |
3/8-16
|
1 1/2"
|
1 1/2"
|
500
|
|
Part Number
|
Base
Width |
Color
|
Case
Quantity |
| 714710S |
5/8"
|
Nickel
|
4,000
|
Floor Glides - Hex, Zinc

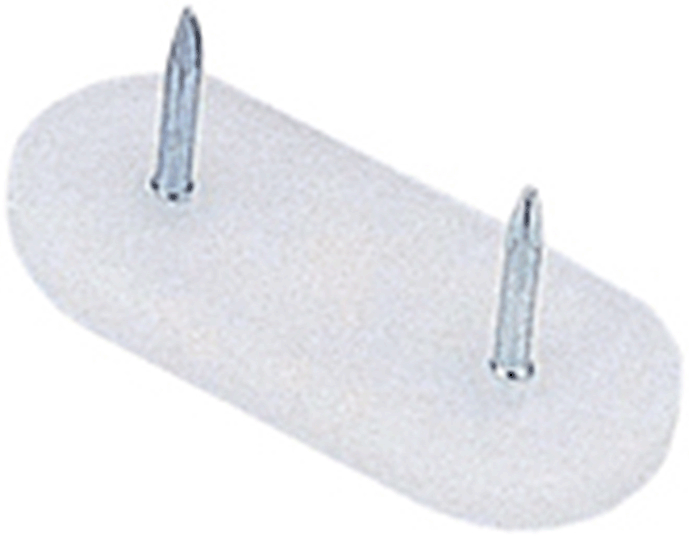

Tack Glide
|
Part Number
|
Base
Width |
Length
|
Color
|
Case
Quantity |
| 714734105 |
5/8"
|
1 1/4"
|
White
|
5,000
|
|
Part Number
|
Stem
Thread |
Stem
Length |
Base
Width |
Case
Quantity |
| 71501416ZH |
1/4-20
|
1"
|
1"
|
100
|
| 71502628ZH |
3/8-16
|
3"
|
1 3/8"
|
100
|
Tack Glide - Silencer

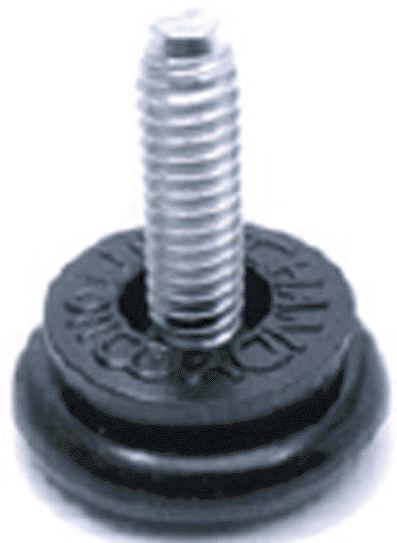

Floor Glides - Silencer
|
Part Number
|
Base
Width |
Color
|
Case
Quantity |
| 714714SB |
7/8"
|
Black
|
2,000
|
|
Part Number
|
Stem
Thread |
Stem
Length |
Base
Width |
Case
Quantity |
| 71501408 |
1/4-20
|
1/2"
|
1"
|
1,000
|
| 71501412 |
1/4-20
|
3/4"
|
1"
|
1,000
|
| 71501416 |
1/4-20
|
1"
|
1"
|
1,000
|
Tack Glide - Cushioned, Plated
Floor Glides - Cushioned, Plated
|
Part Number
|
Base
Width |
Color
|
Case
Quantity |
| 714714C |
7/8"
|
Nickel
|
1,000
|
|
Part Number
|
Stem
Thread |
Stem
Length |
Base
Width |
Case
Quantity |
| 71501412C |
1/4-20
|
3/4"
|
7/8"
|
1,000
|
Tack Glides - 3 Prong Plain
|
Base
Width |
Part Number
|
Case
Quantity |
| 3/4" | 7147323P |
2,500
|

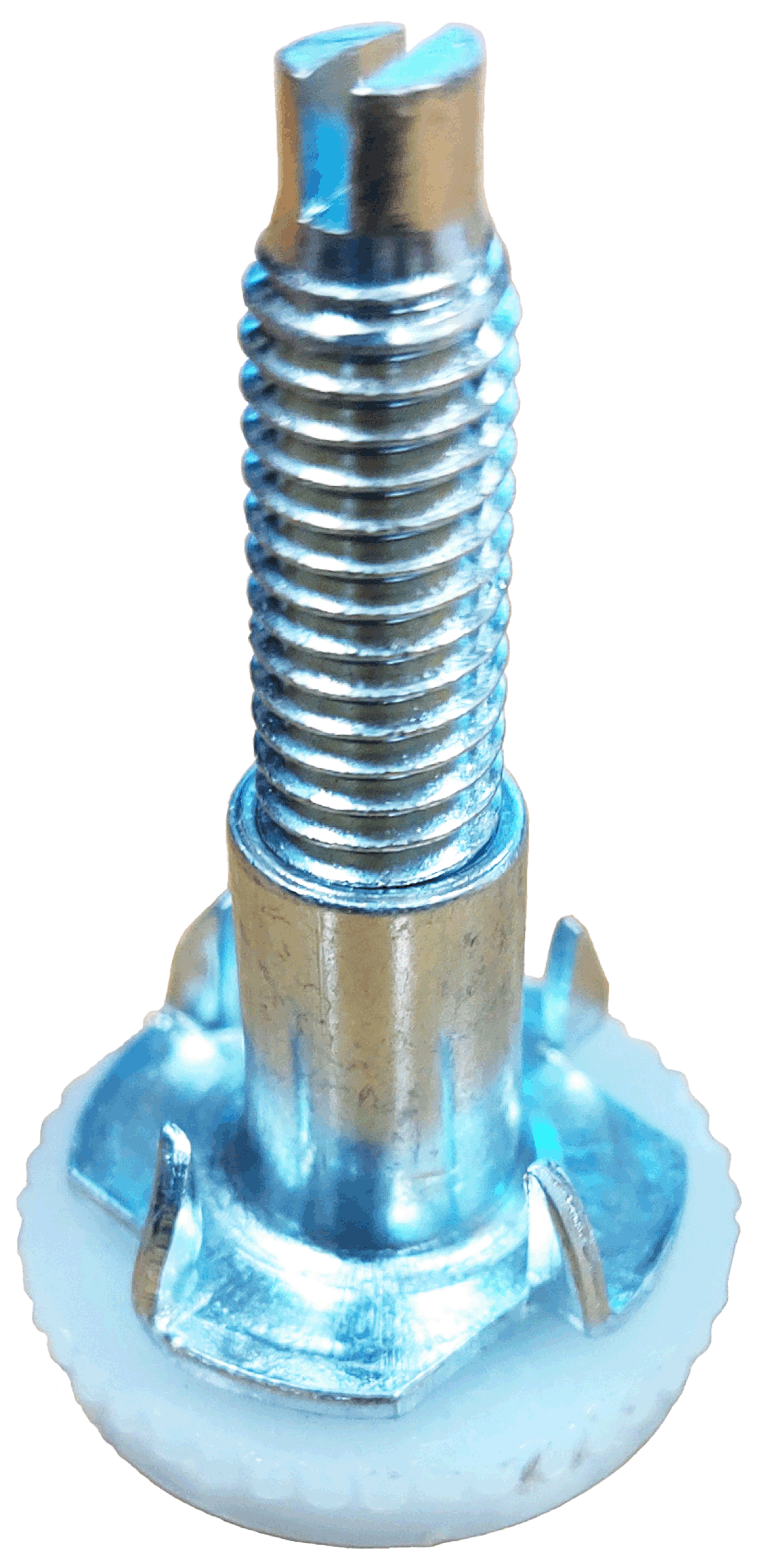

Floor Glide - Type B
|
Part Number
|
Stem
Thread |
Stem
Length |
Base
Width |
Color
|
Case
Quantity |
| 71502521P |
5/16-18
|
1 5/8"
|
1"
|
Natural
|
500
|
