Set Screws

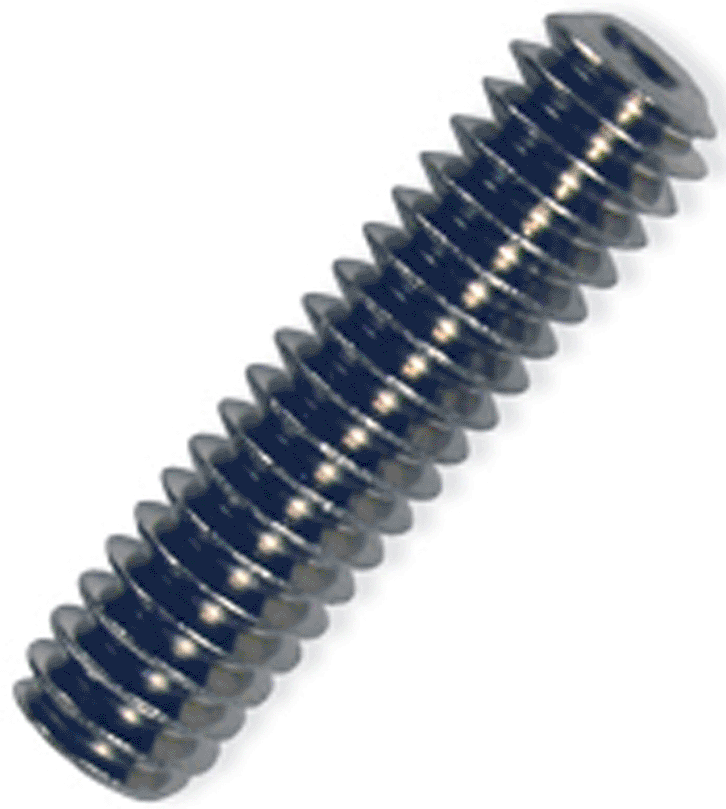

Socket Set Screws NC Cup Point

Socket Set Screws NF

Stocked in steel - plain.
Available in zinc and stainless steel.

Size	Part Number	Weight Pounds/M	Carton Quantity
4-40 x 1/8	23000402xx	1.00	100
4-40 x 3/16	23000403xx	1.00	100
4-40 x 1/4	23000404xx	1.00	100
4-40 x 5/16	23000405xx	1.00	100
4-40 x 3/8	23000406xx	1.00	100
4-40 x 1/2	23000408xx	1.00	100
4-40 x 5/8	23000410xx	2.00	100
4-40 x 1	23000416xx	3.00	100
6-32 x 3/16	23000603xx	1.00	100
6-32 x 1/4	23000604xx	1.00	100
6-32 x 5/16	23000605xx	1.00	100
6-32 x 3/8	23000606xx	1.00	100
6-32 x 7/16	23000607xx	2.00	100
6-32 x 1/2	23000608xx	2.00	100
6-32 x 5/8	23000610xx	2.00	100
6-32 x 3/4	23000612xx	3.00	100
6-32 x 1	23000616xx	4.00	100
8-32 x 1/8	23000802xx	1.00	100
8-32 x 3/16	23000803xx	1.00	100
8-32 x 1/4	23000804xx	1.00	100
8-32 x 5/16	23000805xx	2.00	100
8-32 x 3/8	23000806xx	2.00	100
8-32 x 1/2	23000808xx	2.00	100
8-32 x 3/4	23000812xx	3.00	100
8-32 x 1	23000816xx	5.00	100
8-32 x 1 1/4	23000818xx	6.00	100
10-24 x 3/16	23001003xx	1.00	100
10-24 x 1/4	23001004xx	1.00	100
10-24 x 5/16	23001005xx	2.00	100
10-24 x 3/8	23001006xx	3.00	100
10-24 x 1/2	23001008xx	3.00	100
10-24 x 5/8	23001010xx	3.00	100
10-24 x 3/4	23001012xx	4.00	100
10-24 x 1	23001016xx	5.00	100
1/4-20 x 3/16	23001403xx	3.00	100
1/4-20 x 1/4	23001404xx	3.00	100
1/4-20 x 5/16	23001405xx	3.00	100
1/4-20 x 3/8	23001406xx	4.00	100
1/4-20 x 1/2	23001408xx	5.00	100
1/4-20 x 5/8	23001410xx	6.00	100
1/4-20 x 3/4	23001412xx	8.00	100
1/4-20 x 1	23001416xx	10.00	100
1/4-20 x 1 1/4	23001418xx	13.00	100
1/4-20 x 1 1/2	23001420xx	16.00	100
5/16-18 x 1/4	23002504xx	4.00	100
5/16-18 x 5/16	23002505xx	4.00	100
5/16-18 x 3/8	23002506xx	5.00	100
5/16-18 x 1/2	23002508xx	8.00	100
5/16-18 x 5/8	23002510xx	10.00	100
5/16-18 x 3/4	23002512xx	12.00	100
5/16-18 x 1	23002516xx	17.00	100
5/16-18 x 1 1/4	23002518xx	20.00	100
5/16-18 x 1 1/2	23002520xx	24.00	100
5/16-18 x 2	23002524xx	28.00	100
5/16-18 x 2 1/2	23002526xx	33.00	100
3/8-16 x 1/4	23002604xx	7.00	100
3/8-16 x 5/16	23002605xx	8.00	100
3/8-16 x 3/8	23002606xx	9.00	100
3/8-16 x 1/2	23002608xx	11.00	100
3/8-16 x 5/8	23002610xx	13.00	100
3/8-16 x 3/4	23002612xx	18.00	100
3/8-16 x 1	23002616xx	23.00	100
3/8-16 x 1 1/4	23002618xx	29.00	100
3/8-16 x 1 1/2	23002620xx	35.00	100
3/8-16 x 2	23002624xx	46.00	100
3/8-16 x 2 1/2	23002626xx	60.00	100
3/8-16 x 3	23002628xx	74.00	100
1/2-13 x 3/4	23002812xx	28.00	100
1/2-13 x 1	23002816xx	40.00	100
1/2-13 x 1 1/2	23002820xx	60.00	100

Size	Part Number	Weight Pounds/M	Carton Quantity
10-32 x 3/16	24001003xx	1.00	100
10-32 x 1/4	24001004xx	1.00	100
10-32 x 5/16	24001005xx	2.00	100
10-32 x 3/8	24001006xx	3.00	100
10-32 x 1/2	24001008xx	3.00	100
10-32 x 5/8	24001010xx	3.00	100
10-32 x 3/4	24001012xx	3.00	100
10-32 x 1	24001016xx	3.00	100
1/4-28 x 1/4	24001404xx	3.00	100
1/4-28 x 1/2	24001408xx	5.00	100
1/4-28 x 3/4	24001412xx	8.00	100
5/16-24 x 3/8	24002506xx	5.00	100
5/16-24 x 1/2	24002508xx	8.00	100
5/16-24 x 3/4	24002512xx	12.00	100
3/8-24 x 1/4	24002604xx	7.00	100
3/8-24 x 3/8	24002606xx	9.00	100
3/8-24 x 1/2	24002608xx	11.00	100
3/8-24 x 3/4	24002612xx	18.00	100
3/8-24 x 1	24002616xx	23.00	100

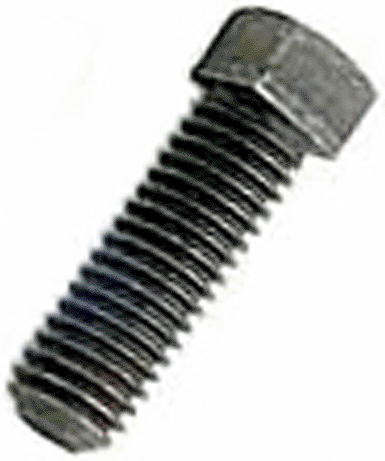

Square Head Set Screws NC Cup Point

Stocked in steel - plain.

Size	Part Number	Weight Pounds/M	Carton Quantity
1/4-20 x 1	23301416xx	24.00	100
1/4-20 x 1 1/4	23301418xx	28.00	100
1/4-20 x 1 1/2	23301420xx	32.00	100
5/16-18 x 1/2	23302508xx	16.00	100
5/16-18 x 1	23302516xx	36.00	100
5/16-18 x 1 1/4	23302518xx	40.00	100
5/16-18 x 1 1/2	23302520xx	44.00	100
5/16-18 x 1 3/4	23302522xx	52.00	100
5/16-18 x 3	23302528xx	76.00	100
3/8-16 x 1	23302616xx	56.00	100
3/8-16 x 1 1/4	23302618xx	64.00	100
3/8-16 x 1 1/2	23302620xx	76.00	100
3/8-16 x 1 3/4	23302622xx	84.00	100
3/8-16 x 2	23302624xx	92.00	100
