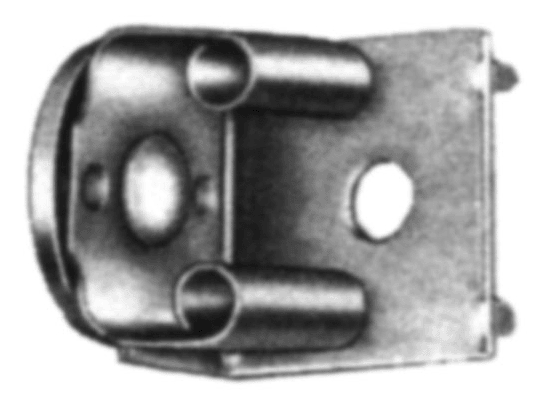

Receiver Catch & Button Sets

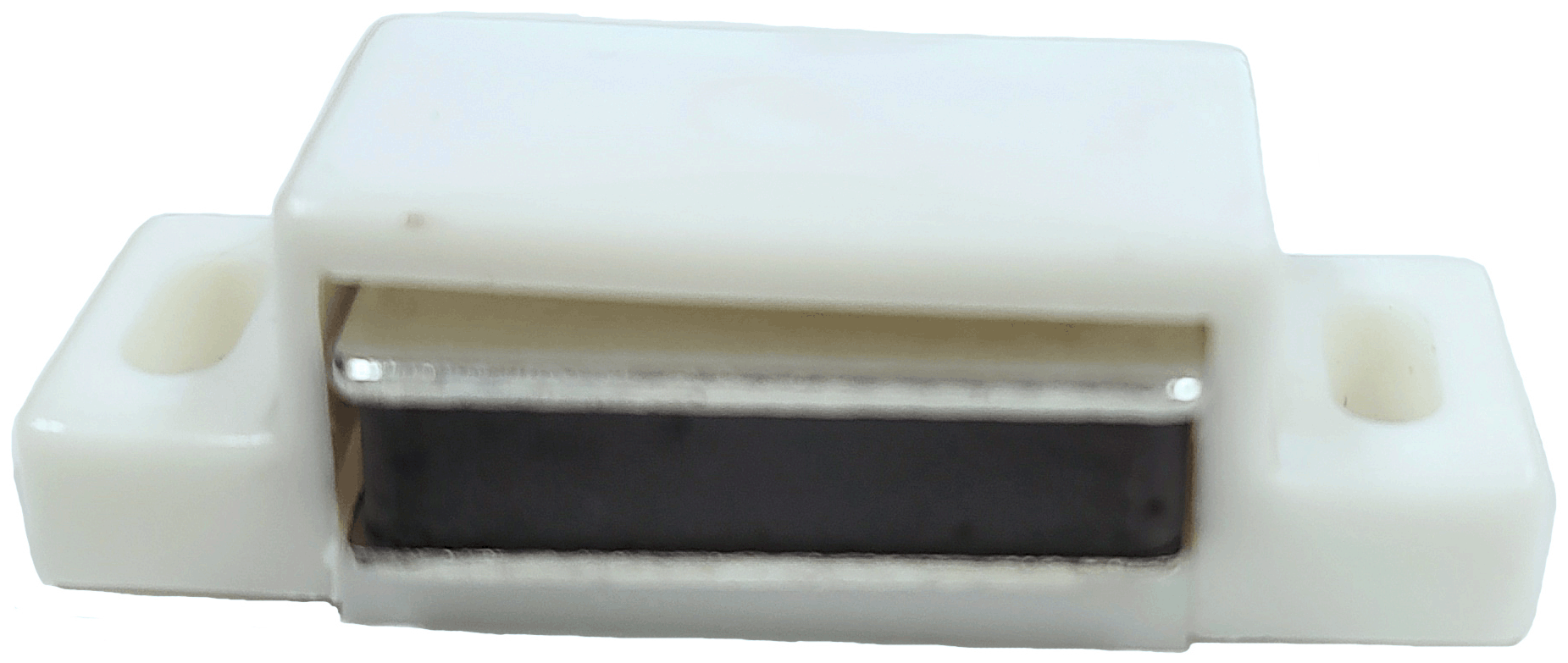

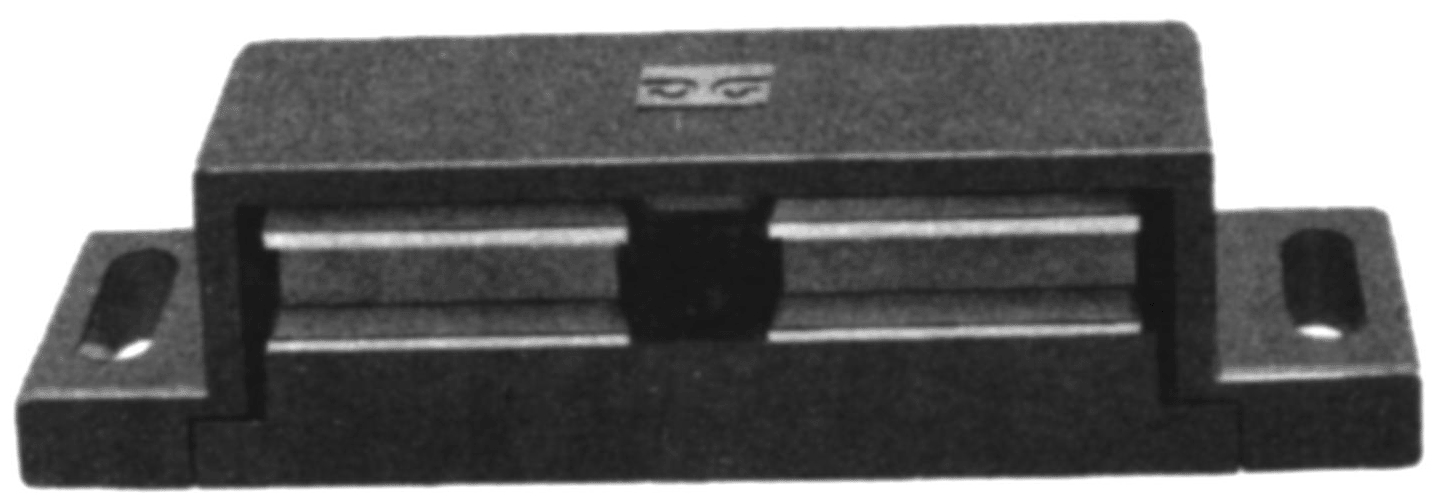

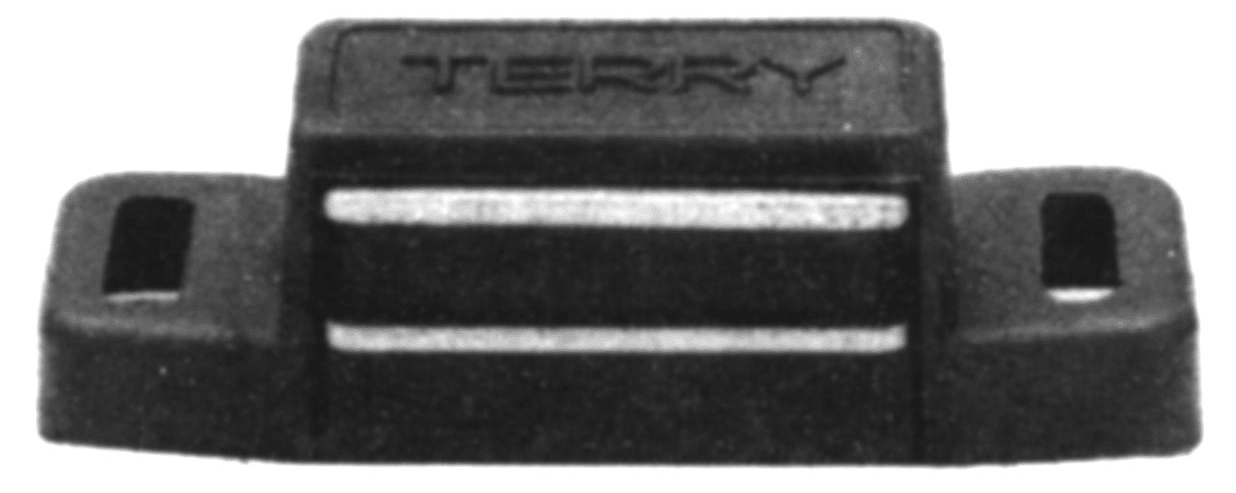

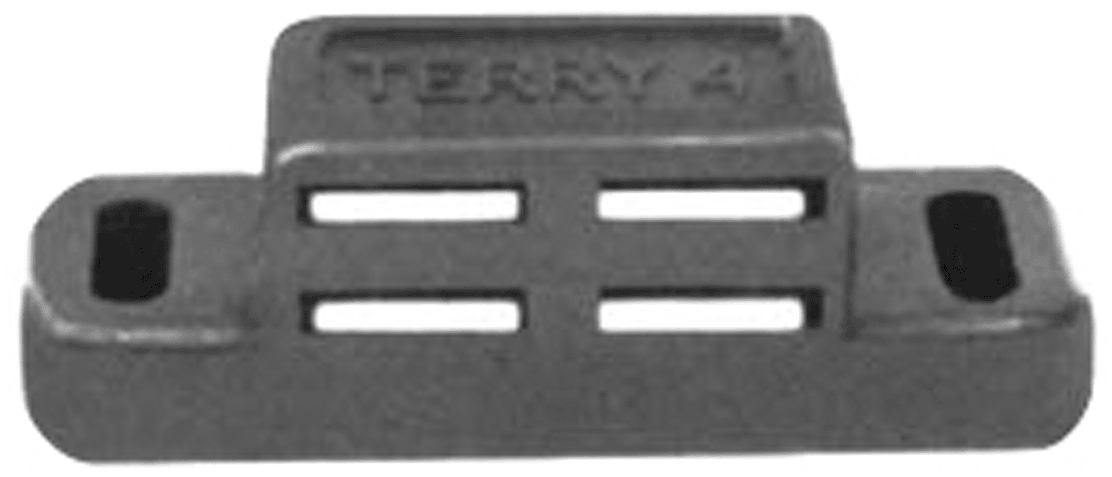

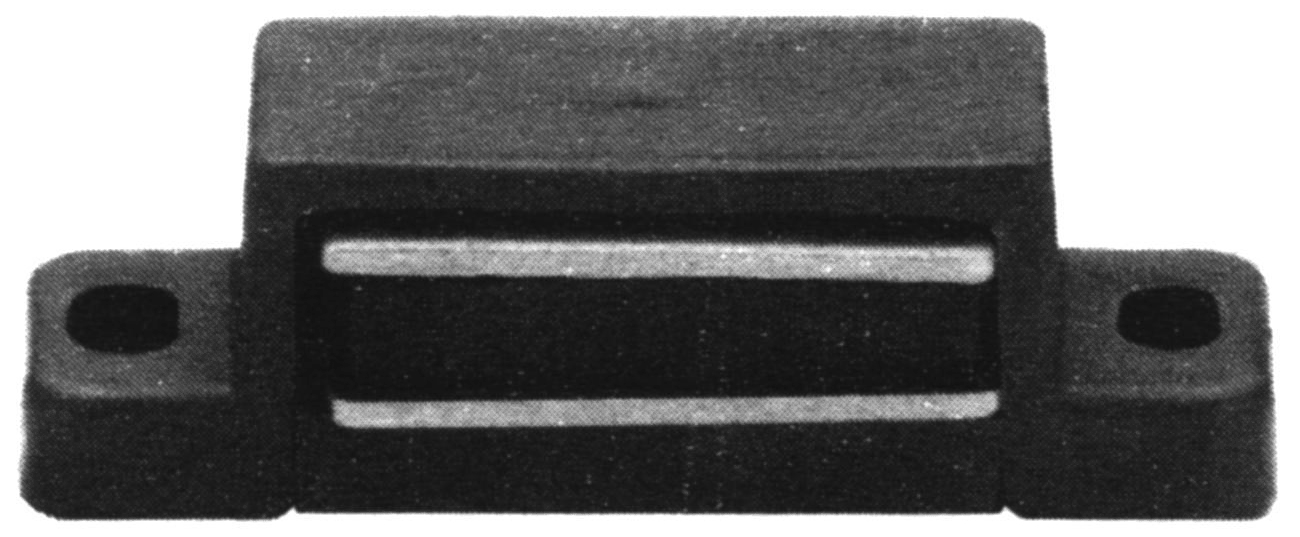

Single Magnetic Catch 13 lb
|
Part Number
|
Color
|
Box Quantity
|
| 7125M02X3921 with Strike & Screws |
White
|
500
|
|
7125M02X3921BR
with Strike & Screws |
Brown
|
500
|
Button
Catch
|
Part Number
|
Color
|
Box Quantity
|
| 7125BSHC2BP |
Brass
|
100
|
| 7125BSHC2WH |
White
|
100
|
| 7125BSHC2ZP |
Zinc
|
100
|

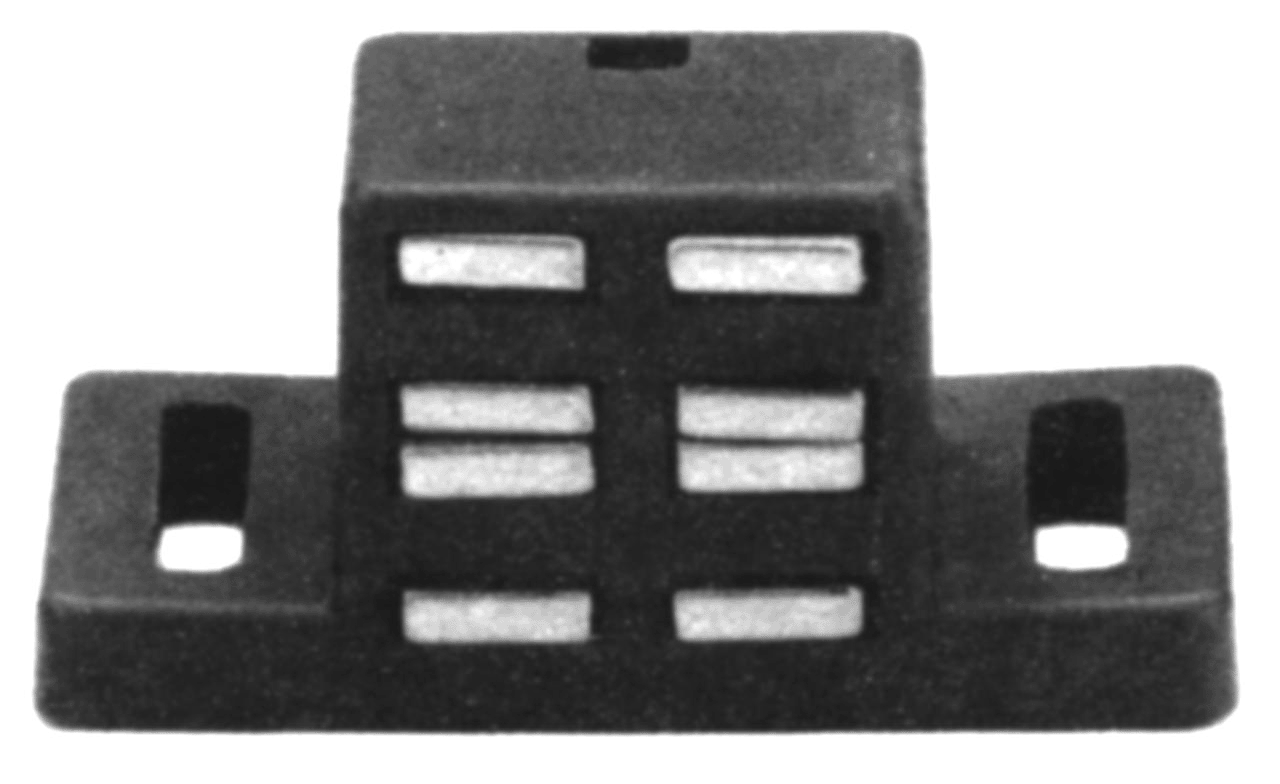

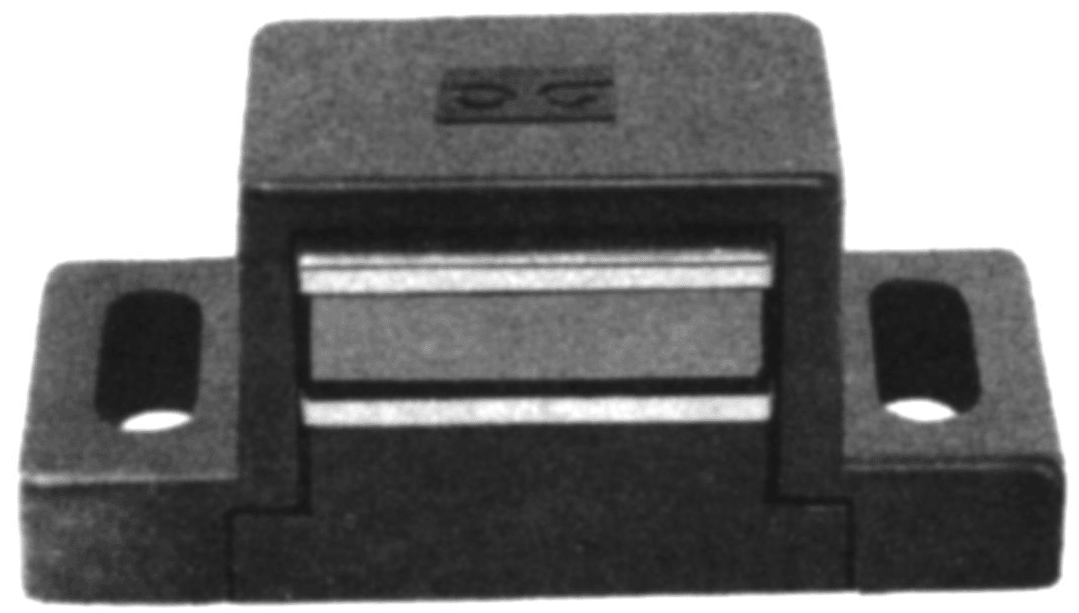

Hi Profile Single Magnetic Catch 25 lb
|
Part Number
|
Color
|
Box Quantity
|
| 7125M0303950 |
Brown
|
100
|
| 7125M0203950W with Strike & Screws |
White
|
100
|

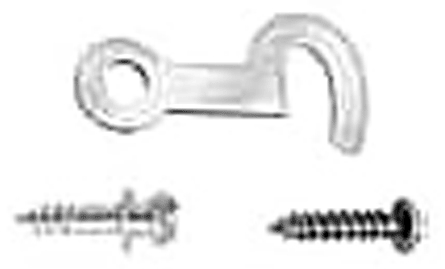

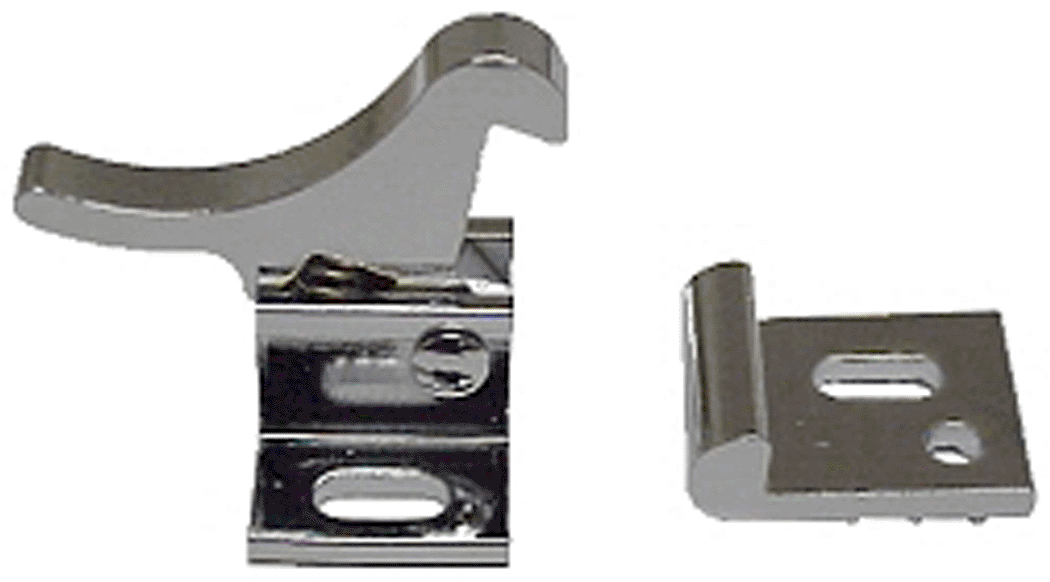

Elbow Catch
Part Number: 7125M0399389
Packed 50 sets per bag
*Recommended screws: 6x5/8 pan head

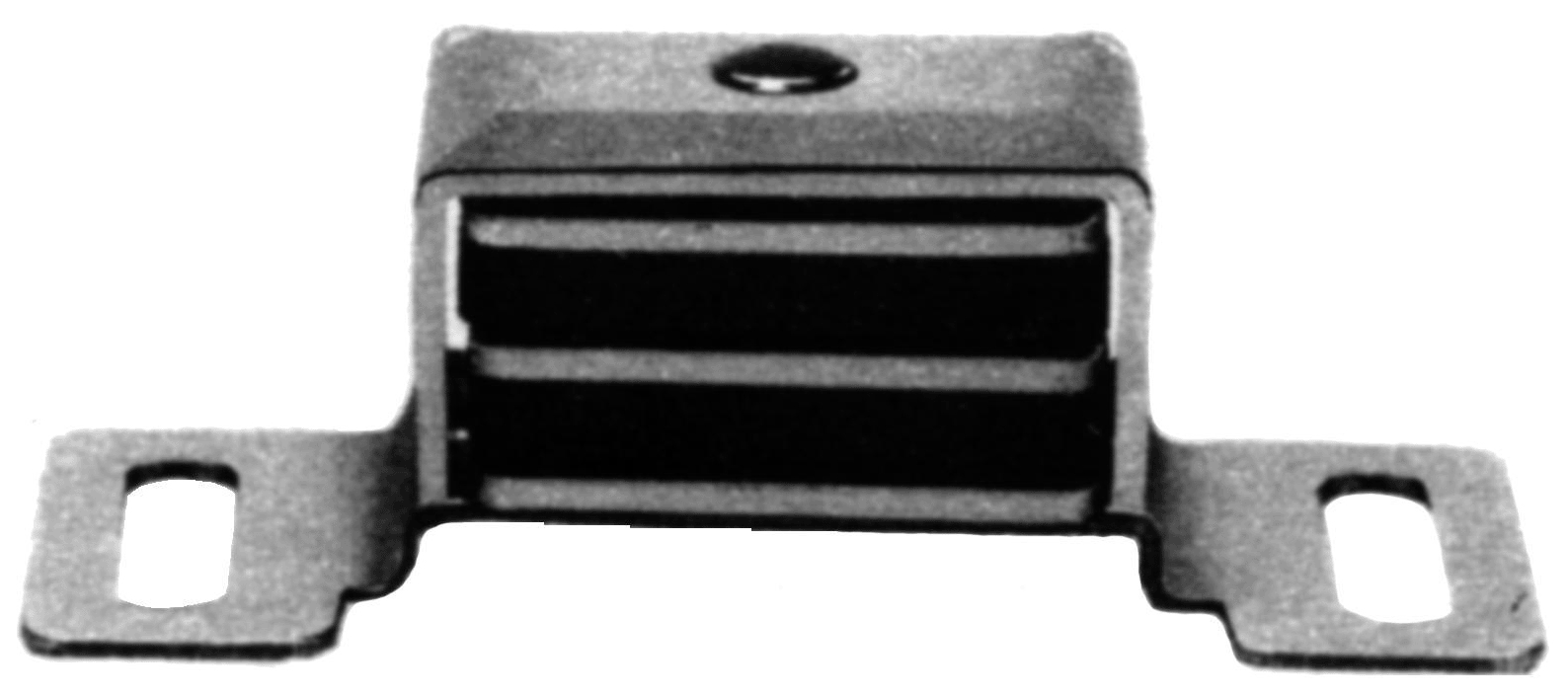

Aluminum Single Magnetic Catch 15 #
Part Number: 7125M0399389ZN
Packed 50 sets per bag
*Recommended screws: 6x5/8 pan head
|
Part Number
|
Color
|
Box Quantity
|
| 7125M0303949 with Strike |
Aluminum
|
100
|
Single Magnetic Catch

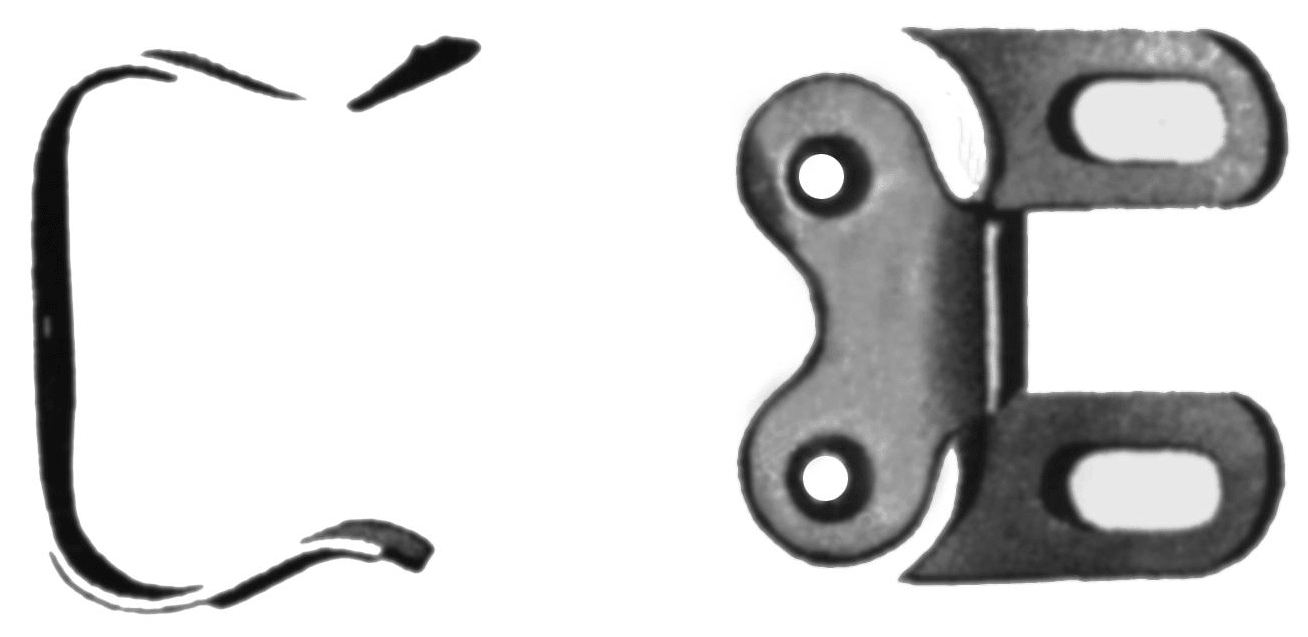

Roller Catch
Zinc
Packed 25 sets per box.
3/8" Part Number: 6698232G
Jumbo Stat Bronze
Packed 25 sets per box.
Part Number: 7125M5CBZ
|
Part Number
|
Color
|
Box Quantity
|
| EP591 |
Aluminum
|
100
|

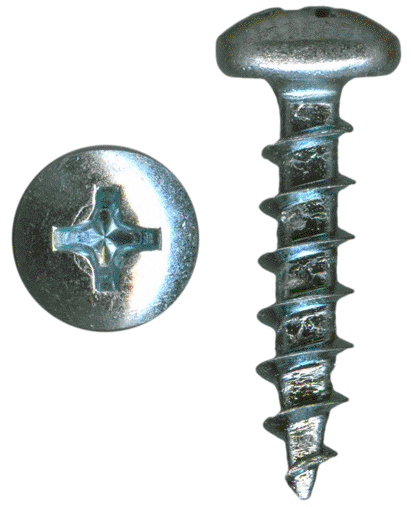

Recommended Screws for Catches

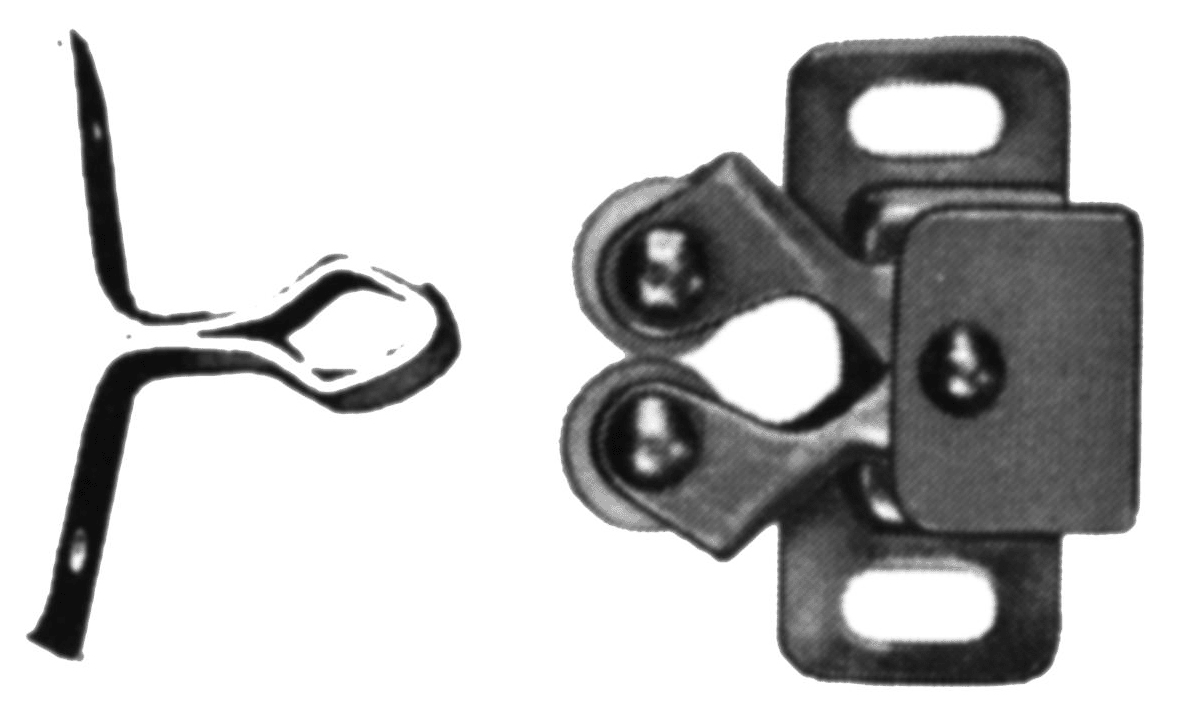

Internal Spring Roller Catch
Packed 100 sets per box.
Part Number: 7125M0399388SB
*Recommended screws: 6x5/8 pan head

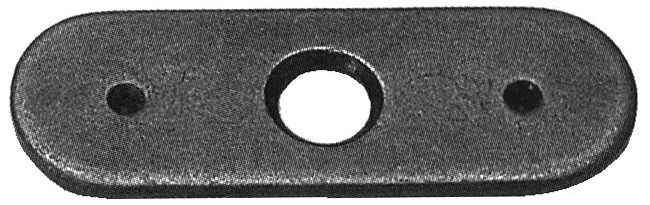

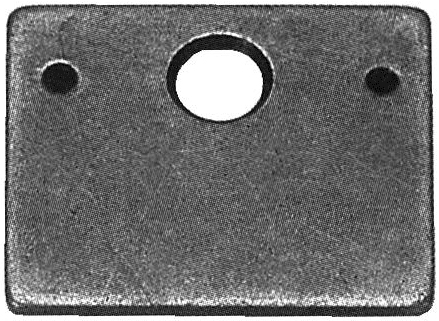

Striker Plates

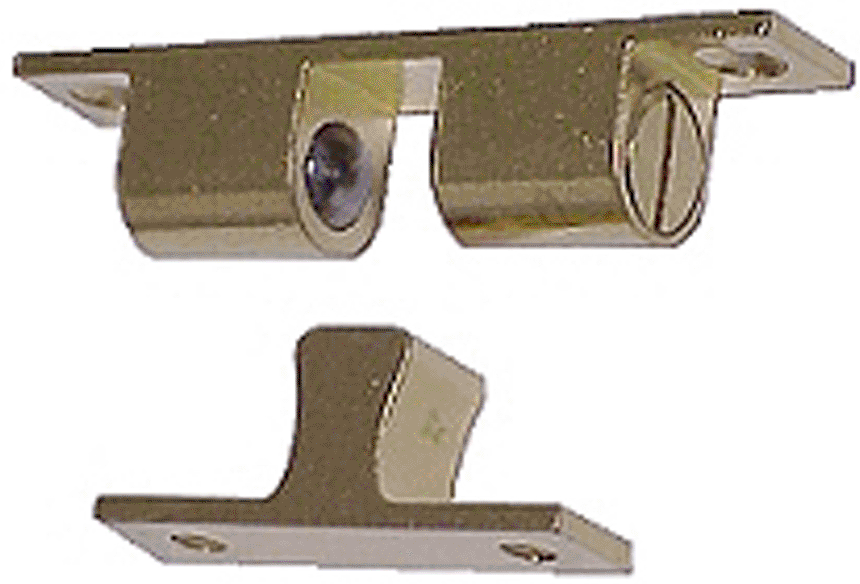

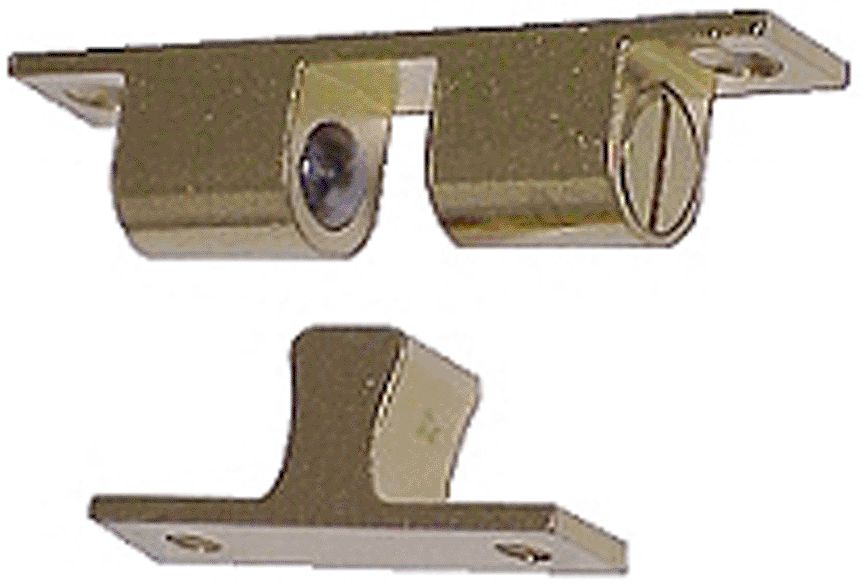

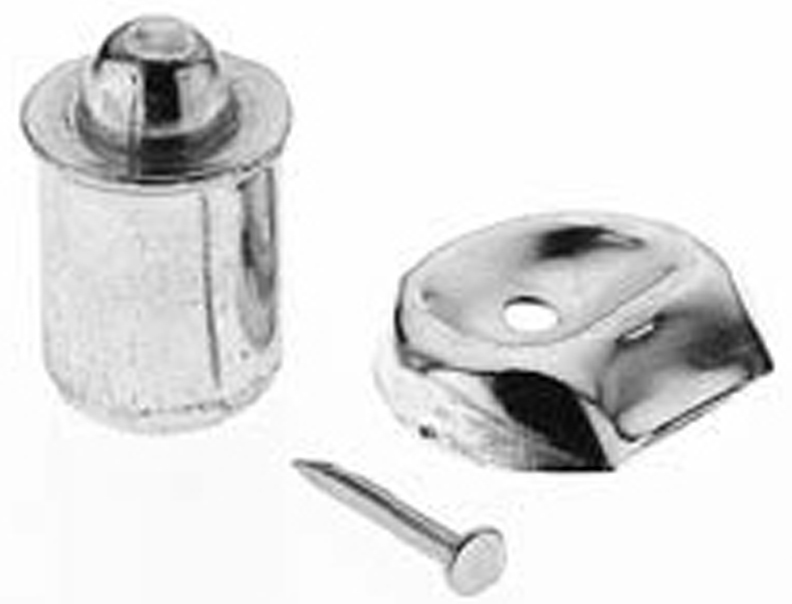

Solid Brass Ball Catches
|
Part Number
|
Size
|
Color
|
Box Quantity
|
| 7125M040290102 |
22mm x 30mm
|
Zinc
|
4,000
|
| 7125M0402901BBL |
22mm x 30mm
|
Bright Brass
|
4,000
|
| 7125M0402901 |
22mm x 30mm
|
Stat Bronze
|
4,000
|
1 3/4" Brass
Part Number: 7125M034400B
2" Brass
Part Number: 7125M034900B
58mm Dull Chrome
Part Number: EP1013DC
Packed 100 sets per box.
*Recommended screws: 4x5/8 flat head.
Stocked in stat bronze only.
Packed 5,000 per box.

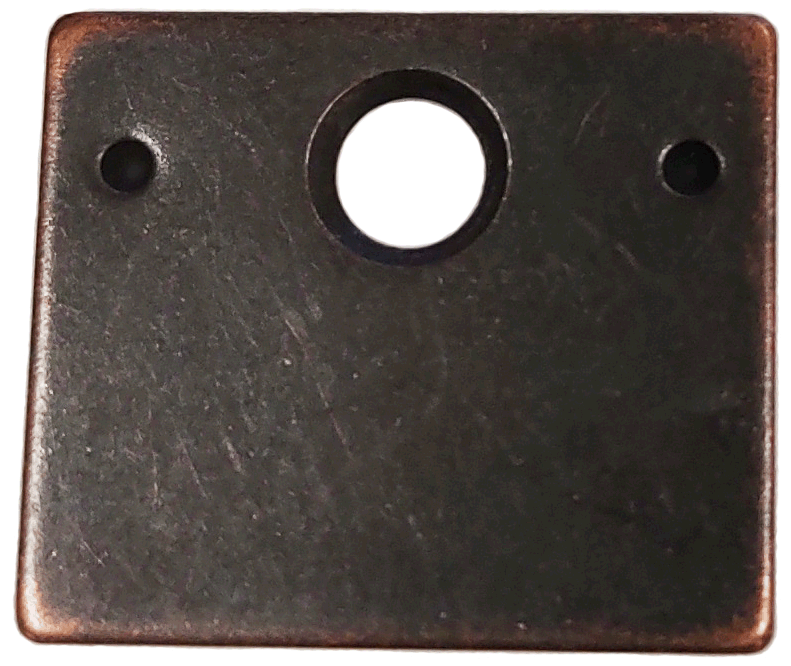

Part Number: 6357280001

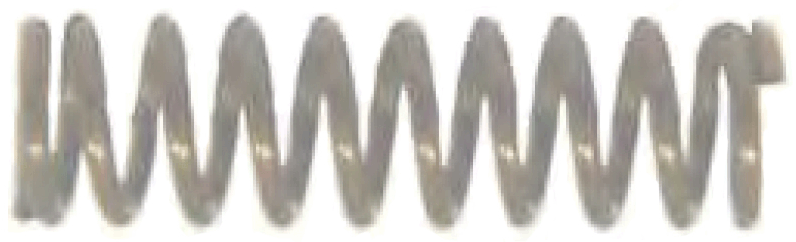

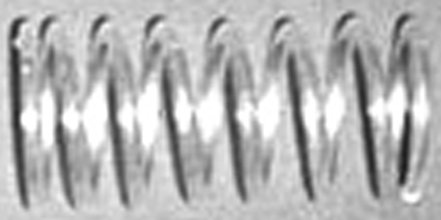

Springs
Recommended Screws for Striker Plates

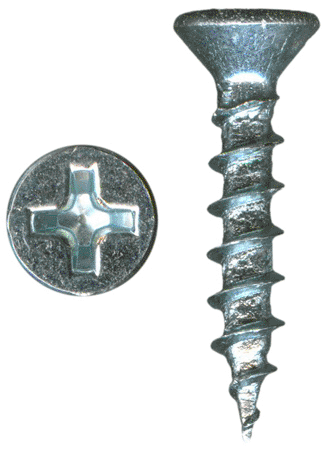

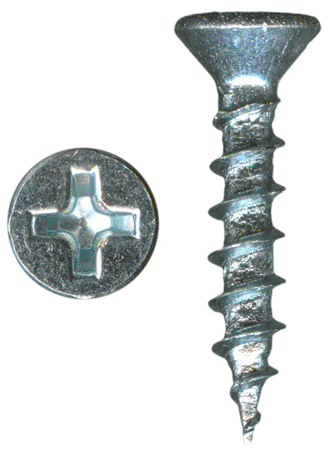

5x1/2 Phil Flat TSA
Diameter: 3/16"
# of coils: 8
Packed 1,000 per box.
Part Number: 7144510
Diameter: 7/32"
# of coils: 11
Packed 1,000 per box.
Part Number: 7144520

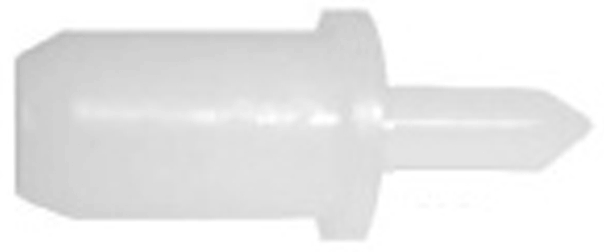

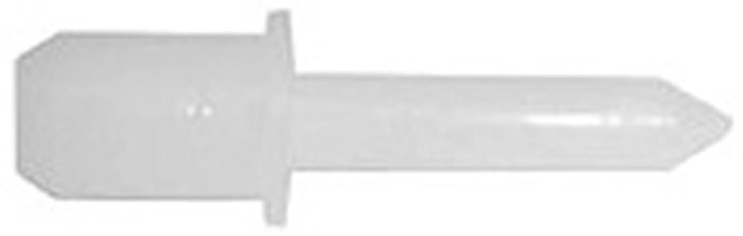

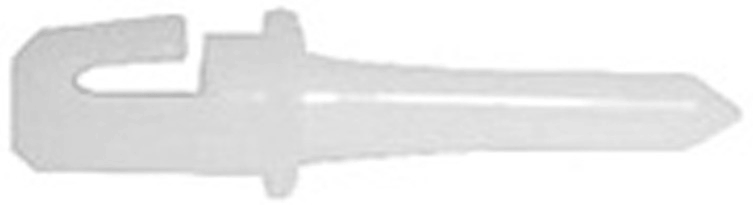

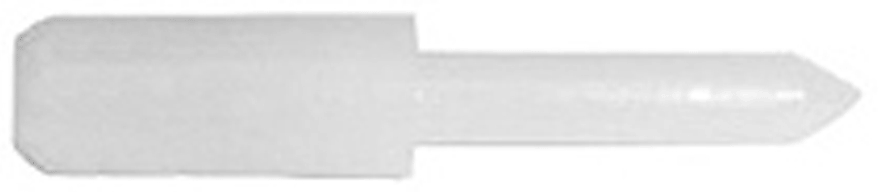

Shutter Pins

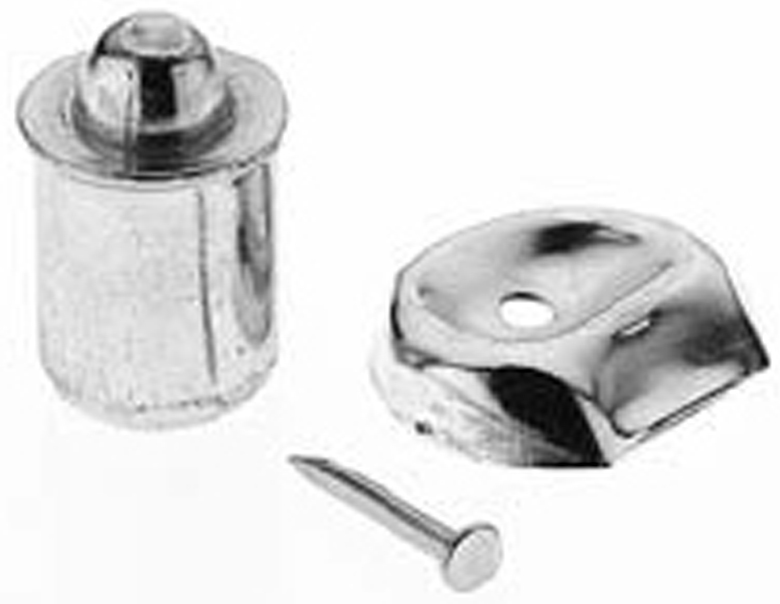

Round Mortise 9 lb Catch
Head diameter: .240
Full length: 1.080
Packed 15,000 per case.
Part Number: 7144M500
Head diameter: .240
Full length: 1.080
Packed 15,000 per case.
Part Number: 7144M515
Part Number: 7125M0303917
14mm diameter, brown.
Part Number: 6357273901
Strike Part Number: 7125M0302908
Packed 1,000 per case.

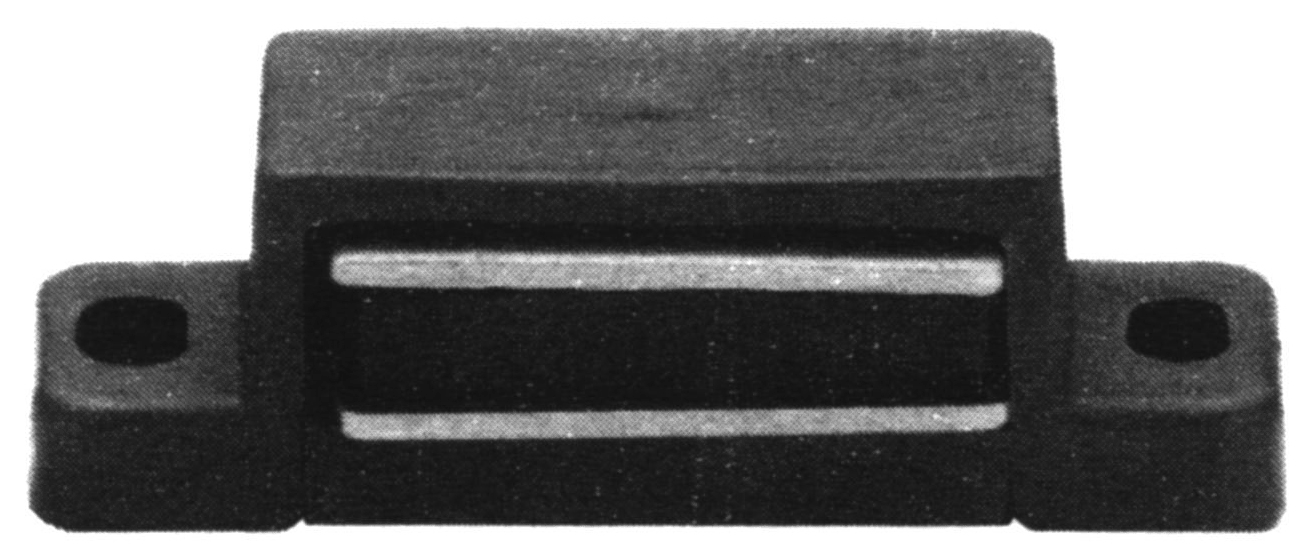

Hi Rise Single Magnetic Catch 8 lb
Head diameter: .240
Spring diameter: .255
Full length: 1.080
Packed 10,000 per case.
Part Number: 7144M550
Head diameter: .242
Full length: .8475
Packed 15,000 per case.
Part Number: 7144M555
|
Part Number
|
Color
|
Box Quantity
|
| 7125M0303932 |
Brown
|
250
|

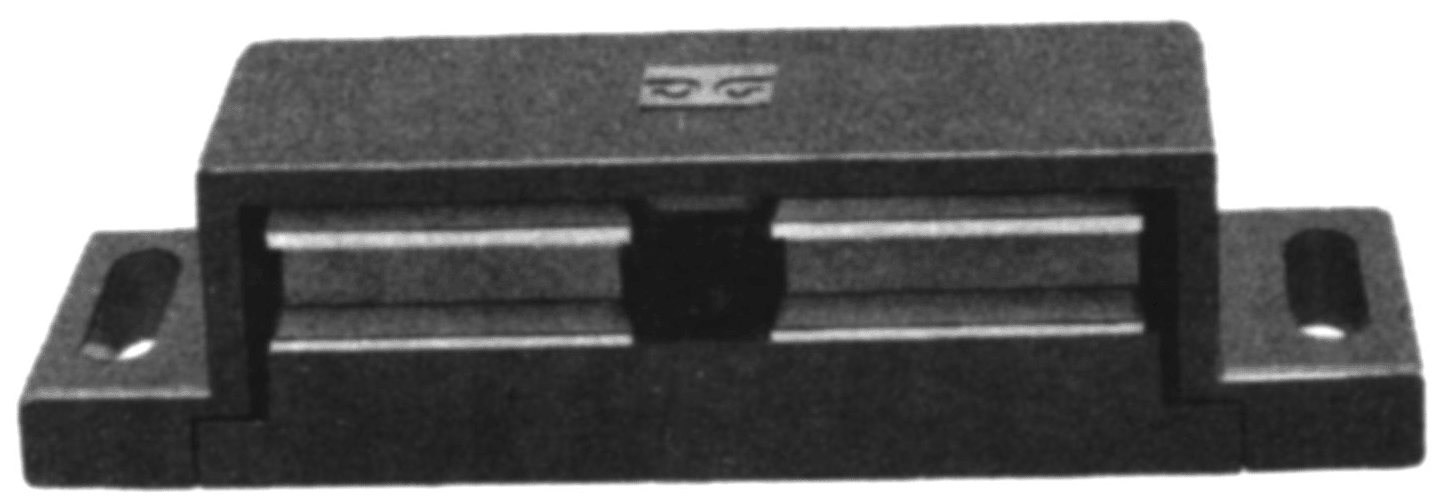

Hi Rise Double Magnetic Catch 8 lb
|
Part Number
|
Color
|
Box Quantity
|
| 7125M0303941 |
Brown
|
100
|
| 7125M0303941W |
White
|
100
|
Inner diameter: .180
Full length: .379
Packed 5,000 per case.
Part Number: 7144M540
Outer diameter: .312
Thickness: .031
Packed 5,000 per case.
Part Number: 42030638S
Single Magnetic Catch 13 lb
|
Part Number
|
Color
|
Box Quantity
|
| 732462610443 |
White
|
100
|
| 7324626300 |
Black
|
100
|

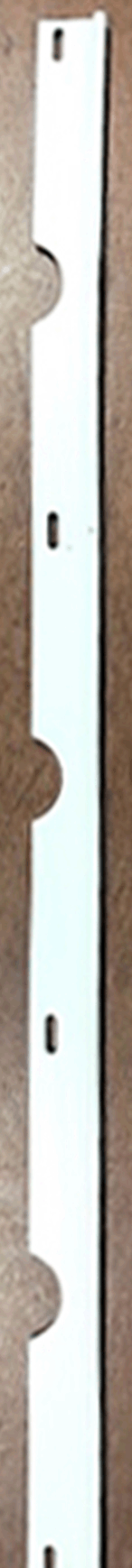

Hidden Tilt Rod
|
Part Number
|
Length
|
For Louver Size
|
Color
|
Box Quantity
|
| JG96A2W |
96"
|
2 1/2"
|
White
|
50
|
| JG96A2B |
96"
|
2 1/2"
|
Brown
|
50
|
| JG96A3W |
96"
|
3 1/2"
|
White
|
50
|
| JG96A3B |
96"
|
3 1/2"
|
Brown
|
50
|
| JG96A4W |
96"
|
4 1/2"
|
White
|
50
|
| JG96A4B |
96"
|
4 1/2"
|
Brown
|
50
|

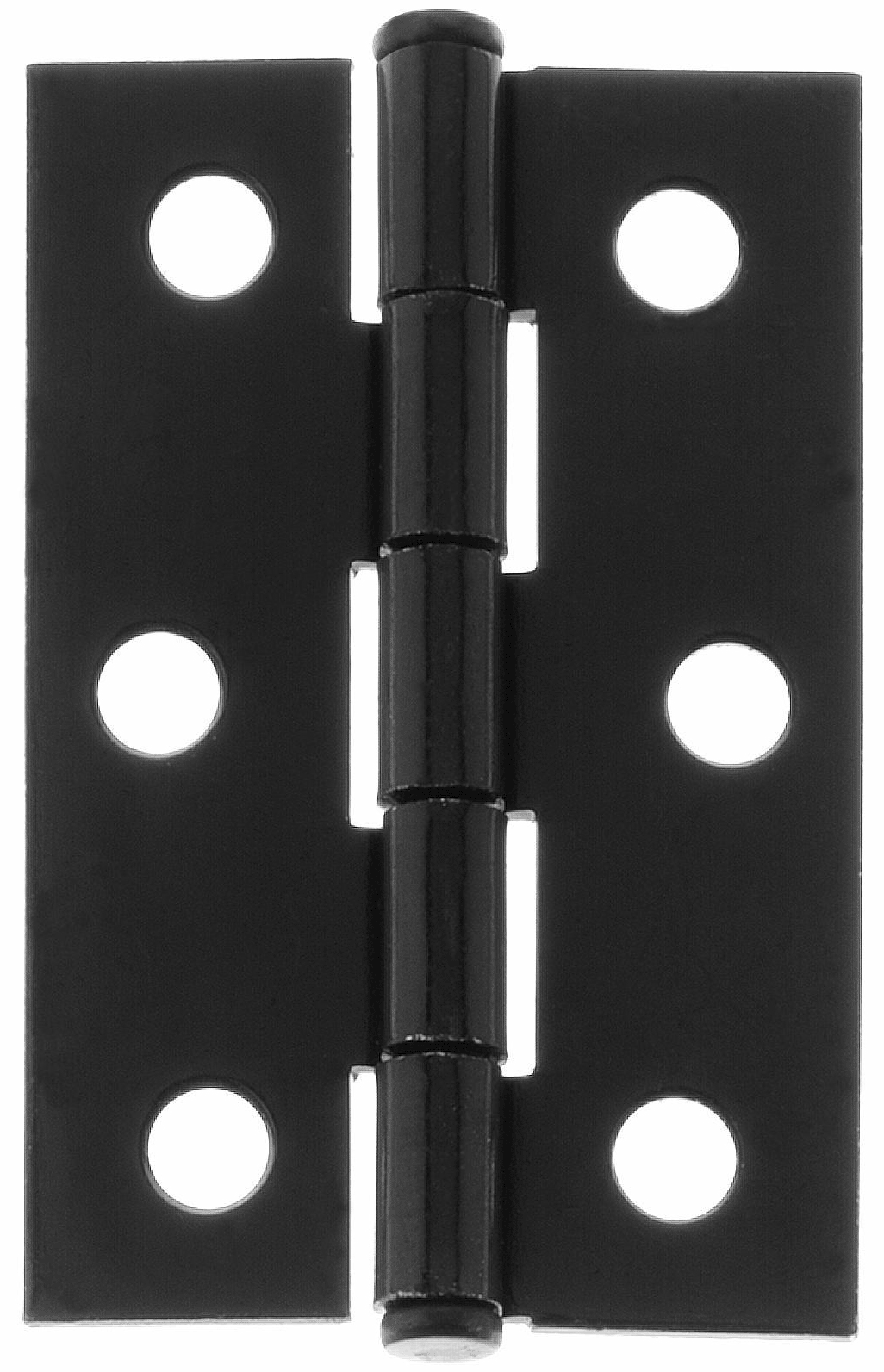

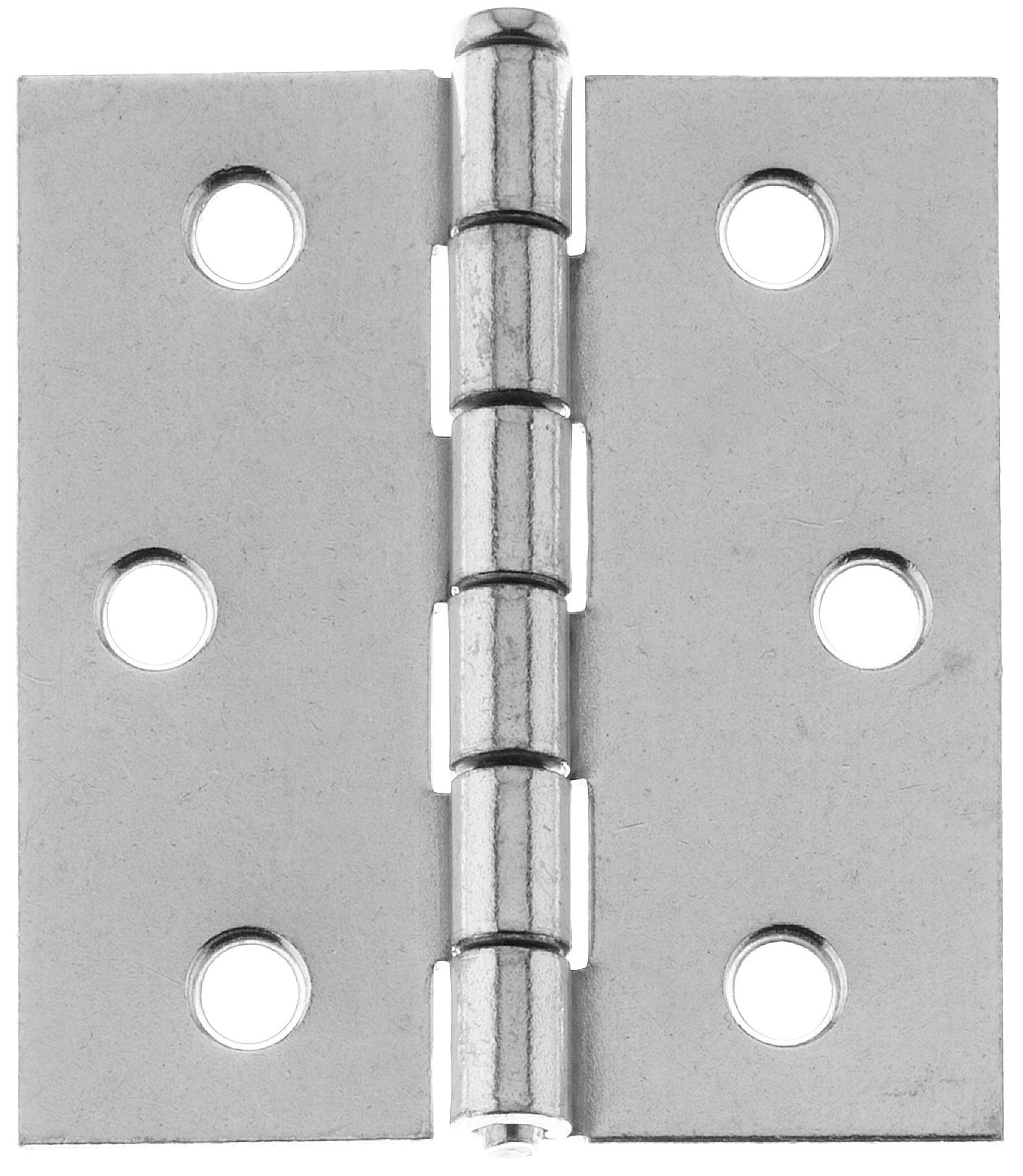

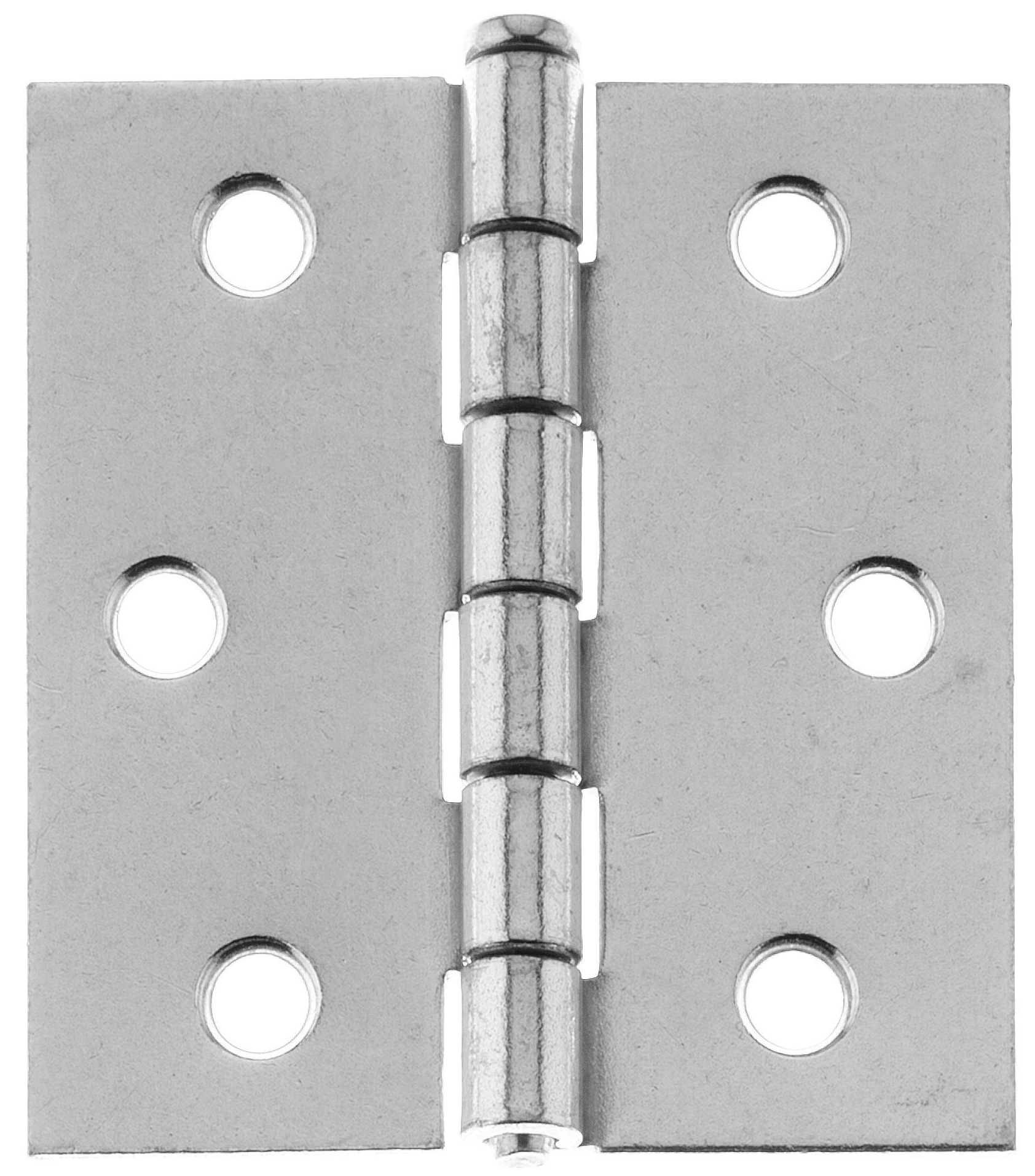

Loose Pin Mortise Type Hanging or Interpanel Hinges

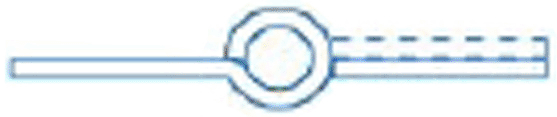

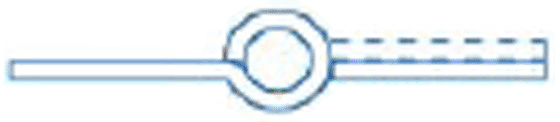

Full Swage

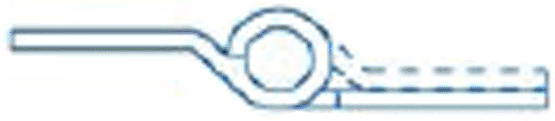

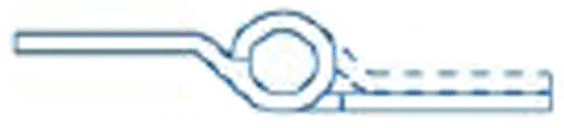

Half Swage

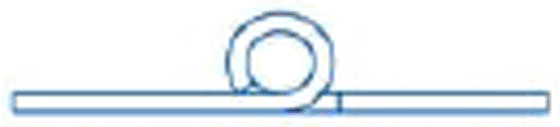

Flat Back
B
|
Part Number
|
Size
|
Length (A)
|
Width (B)
|
Swage
|
Recommended Screw
|
Box Quantity
|
Finish
|
| TEH0357451664 |
1 3/4" x 2"
|
2"
|
1 3/4"
|
Full
|
6x5/8 Flat
|
400
|
White
|
| TEH0357451674 |
1 3/4" x 2"
|
2"
|
1 3/4"
|
Full
|
6x5/8 Flat
|
400
|
Cottage White
|
| TEH03574519R4 |
1 3/4" x 2"
|
2"
|
1 3/4"
|
Full
|
6x5/8 Flat
|
400
|
Oil Rubbed Bronze
|
| TEH0357451154 |
1 3/4" x 2"
|
2"
|
1 3/4"
|
Full
|
6x5/8 Flat
|
500
|
Satin Nickel
|
| TEH0357551054 |
2" x 2"
|
2"
|
2"
|
Full
|
6x5/8 Flat
|
400
|
Antique Brass
|
| TEH0351251034 |
1 1/2" x 2 1/2"
|
2 1/2"
|
1 1/2"
|
Full
|
6x5/8 Flat
|
400
|
Bright Brass
|
| TEH0351251054 |
1 1/2" x 2 1/2"
|
2 1/2"
|
1 1/2"
|
Full
|
6x5/8 Flat
|
400
|
Antique Brass
|
| TEH0351251154 |
1 1/2" x 2 1/2"
|
2 1/2"
|
1 1/2"
|
Full
|
6x5/8 Flat
|
400
|
Satin Nickel
|
| TEH0351251664 |
1 1/2" x 2 1/2"
|
2 1/2"
|
1 1/2"
|
Full
|
6x5/8 Flat
|
400
|
White
|
| TEH0351251674 |
1 1/2" x 2 1/2"
|
2 1/2"
|
1 1/2"
|
Full
|
6x5/8 Flat
|
400
|
Cottage White
|
| TEH03512519R4 |
1 1/2" x 2 1/2"
|
2 1/2"
|
1 1/2"
|
Full
|
6x5/8 Flat
|
400
|
Oil Rubbed Bronze
|
| TEH0355451034 |
1 11/16" x 2 1/2"
|
2 1/2"
|
1 11/16"
|
Full
|
6x5/8 Flat
|
400
|
Bright Brass
|
| TEH0357651034 |
2" x 2 1/2"
|
2 1/2"
|
2"
|
Full
|
6x3/4 Flat
|
400
|
Bright Brass
|
| TEH0357651124 |
2" x 2 1/2"
|
2 1/2"
|
2"
|
Full
|
6x3/4 Flat
|
400
|
Primer
|
| TEH0357651664 |
2" x 2 1/2"
|
2 1/2"
|
2"
|
Full
|
6x3/4 Flat
|
400
|
White
|
| TEH03576519R4 |
2" x 2 1/2"
|
2 1/2"
|
2"
|
Full
|
6x3/4 Flat
|
400
|
Oil Rubbed Bronze
|
| TEH0357751034 |
2 1/2" x 2 1/2"
|
2 1/2"
|
2 1/2"
|
Full
|
6x3/4 Flat
|
400
|
Bright Brass
|
| TEH0357751664 |
2 1/2" x 2 1/2"
|
2 1/2"
|
2 1/2"
|
Full
|
6x3/4 Flat
|
400
|
White
|
*Screws are Available in Different Finishes Please Click Here for More Information

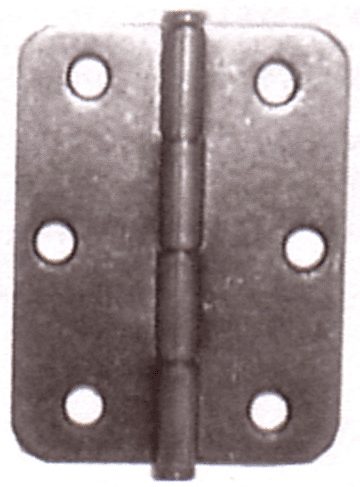

Round Cornered Hinges
H0325801/H0825801
|
Part Number
|
Length
|
Width
|
Material Thickness
|
Pin Diameter
|
Swage
|
Recommended Screw
|
Case Quantity
|
Case Weight
|
Finish
|
| 7124H0325801 |
2 1/2"
|
2"
|
0.065
|
0.12
|
Full
|
6x3/4 Flat
|
400
|
60 lbs
|
Bright Brass
|
| 7124H0325801P |
2 1/2"
|
2"
|
0.065
|
0.12
|
Full
|
6x3/4 Flat
|
400
|
60 lbs
|
Prime Coat
|

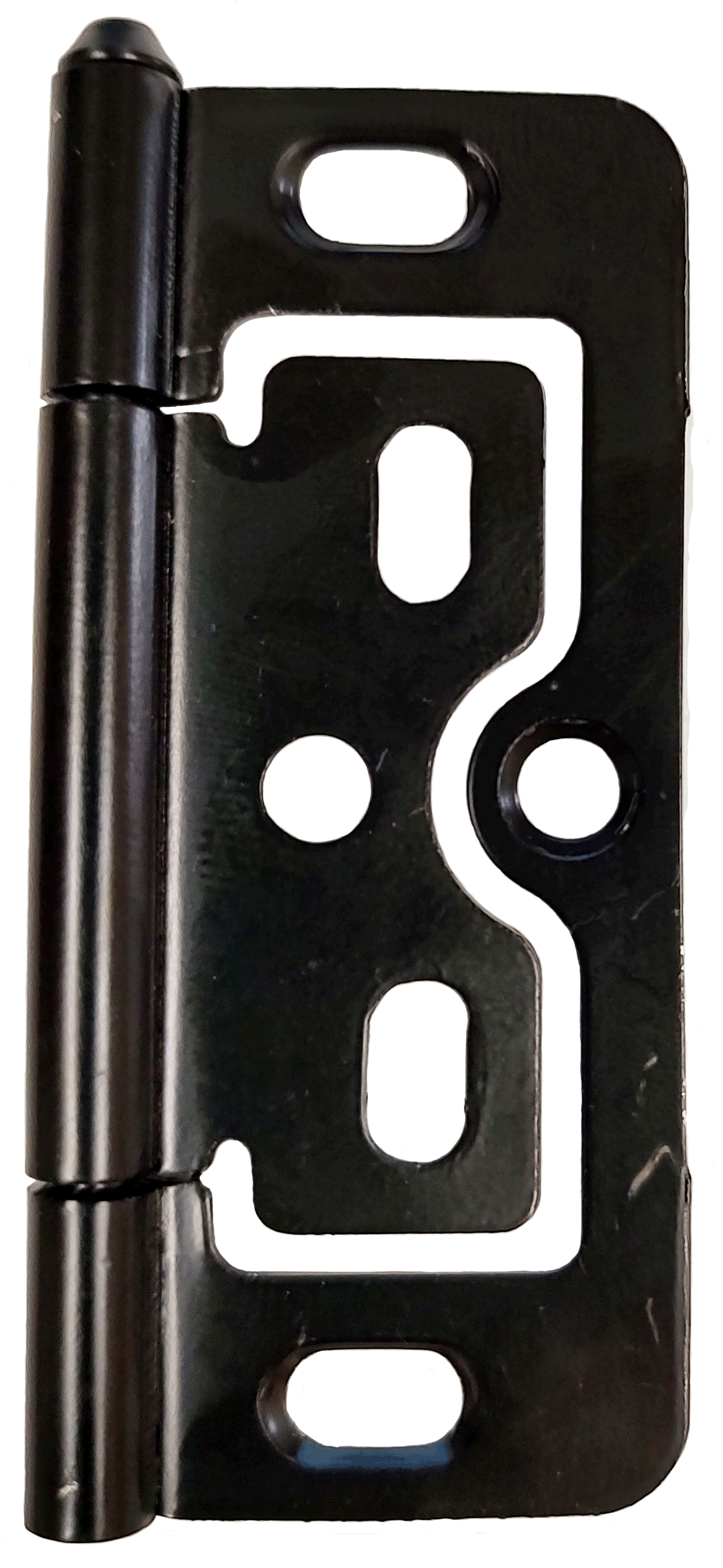

Nonmortise Hinges
|
Part Number
|
Length
|
Large Leaf Width
|
Material
Thickness |
Pin
Diameter |
Pin
Type |
Swage
|
Recommended
Screw |
Case Quantity
|
Case Weight
|
Finish
|
| 7124H0303205SB |
2 1/2"
|
3/4"
|
0.054
|
0.098
|
Tight
|
Flat Back
|
5x5/8 Flat
|
1,000
|
56 lbs
|
Stat Bronze
|
| 7124H0303305SB |
3"
|
13/16"
|
0.064
|
0.102
|
Tight
|
Flat Back
|
5x5/8 Flat
|
500
|
49 lbs
|
Stat Bronze
|
| 7124HR9802CW |
3"
|
1"
|
0.060
|
0.150
|
Loose
|
Full
|
6x5/8 Flat
|
300
|
60 lbs
|
Cottage White
|
| 7124HR9802AB |
3"
|
1"
|
0.060
|
0.150
|
Loose
|
Full
|
6x5/8 Flat
|
250
|
50 lbs
|
Antique Brass
|
| 7124HR9802BC |
3"
|
1"
|
0.060
|
0.150
|
Loose
|
Full
|
6x5/8 Flat
|
250
|
50 lbs
|
Brushed Chrome
|
| 7124HR9802BN |
3"
|
1"
|
0.060
|
0.150
|
Loose
|
Full
|
6x5/8 Flat
|
250
|
50 lbs
|
Bright Nickel
|
| 7124HR9802BWH |
3"
|
1"
|
0.060
|
0.150
|
Loose
|
Full
|
6x5/8 Flat
|
250
|
50 lbs
|
White
|
| 7124HR9802DACM |
3"
|
1"
|
0.060
|
0.150
|
Loose
|
Full
|
6x5/8 Flat
|
250
|
50 lbs
|
Oil Rubbed Bronze
|
| 7124HR9802PB |
3"
|
1"
|
0.060
|
0.150
|
Loose
|
Full
|
6x5/8 Flat
|
250
|
50 lbs
|
Bright Brass
|

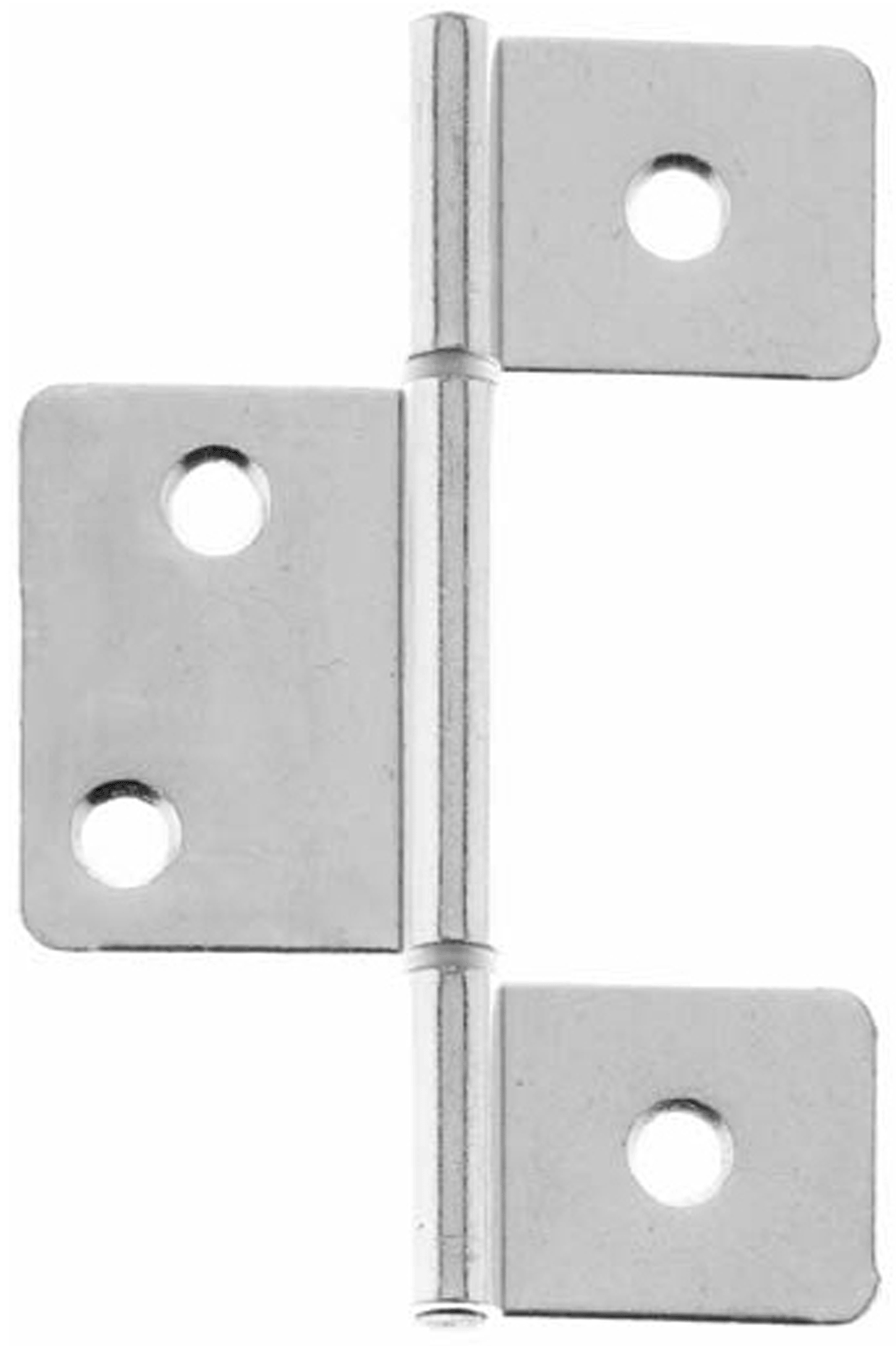

Nonmortise Hinges Tight Pin
|
Part Number
|
Length
|
Width
|
Material Thickness
|
Pin Diameter
|
Swage
|
Recommended Screw
|
Case Quantity
|
Case Weight
|
Finish
|
| 7124H0303970 |
3 1/2"
|
2 1/4"
|
0.05
|
0.12
|
Full
|
6x5/8 Flat
|
500
|
89 lbs
|
Bright Brass
|
| 7124H0303970AB |
3 1/2"
|
2 1/4"
|
0.05
|
0.12
|
Full
|
6x5/8 Flat
|
500
|
89 lbs
|
Antique Brass
|
| 7124H0303970BZ |
3 1/2"
|
2 1/4"
|
0.05
|
0.12
|
Full
|
6x5/8 Flat
|
500
|
89 lbs
|
Rubbed Bronze
|
| 7124H0303970NKL |
3 1/2"
|
2 1/4"
|
0.05
|
0.12
|
Full
|
6x5/8 Flat
|
500
|
89 lbs
|
Nickel
|
| 7124H0303970WH |
3 1/2"
|
2 1/4"
|
0.05
|
0.12
|
Full
|
6x5/8 Flat
|
500
|
89 lbs
|
White
|
Double Wrap-A-Round Hinges
|
Part Number
|
Length
|
Door
Thickness |
Material
Thickness |
Pin
Diameter |
Return
|
Recommended
Screw |
Case
Quantity |
Case
Weight |
Finish
|
| 7124H0363F53ABC |
1 1/2"
|
5/8"
|
0.05
|
0.098
|
1 1/4"
|
5x5/8 Flat
|
300
|
37 lbs
|
Antique Brass Crimped
|
Wrap Hinges - 270 Degree of Opening
|
Part Number
|
Size
|
Finish
|
Recommended Screw
|
Case Quantity
|
| 7124H089MX83BLK |
5/8" x 5/8" x 2"
|
Black
|
6x3/4 Flat
|
200
|
| 7124H089MX83 |
5/8" x 5/8" x 2"
|
Bright Brass
|
6x3/4 Flat
|
200
|

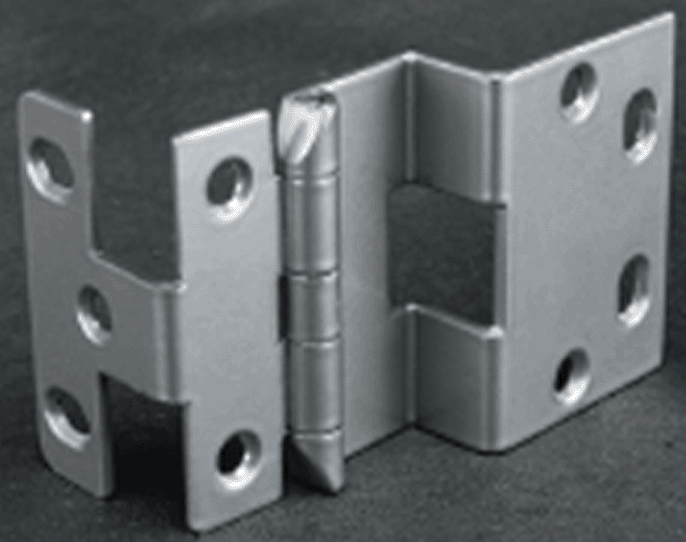

Institutional Hinges
.095 Steel
Hospital Tips
|
Part Number
|
Size
|
Side Panel
|
Door Thickness
|
Overlay
|
Brand
|
Designed For
|
Finish
|
Recommended Screw
|
Box Quantity
|
| 712385626D |
2 3/4"
|
3/4"
|
13/16"
|
23/32"
|
RPC
|
32mm System
|
Chrome
|
8x3/4 Flat
|
100
|
| 7123856SGB |
2 3/4"
|
3/4"
|
13/16"
|
23/32"
|
RPC
|
32mm System
|
Gloss Black
|
8x3/4 Flat
|
100
|
| 7123H76045DC |
2 3/4"
|
3/4"
|
13/16"
|
23/32"
|
Import
|
32mm System
|
Dull Chrome
|
8x3/4 Flat
|
100
|
| 7123H760GBK |
2 3/4"
|
3/4"
|
13/16"
|
23/32"
|
Import
|
32mm System
|
Gloss Black
|
8x3/4 Flat
|
100
|
| 712345626D |
2 3/4"
|
3/4"
|
13/16"
|
23/32"
|
Import
|
32mm & 45mm Systems
|
Satin Chrome
|
8x3/4 Flat
|
100
|
| 712345426D |
2 3/4"
|
3/4"
|
3/4"
|
1"
|
RPC
|
32mm System
|
Dull Chrome
|
8x3/4 Flat
|
100
|
Terry Hinge - Tight Pin Butt Hinges
|
Part Number
|
Length
|
Open Width
|
Swage
|
Recommended Screw
|
Case Quantity
|
Case Weight
|
Finish
|
| 7124H0350454MAB |
2 1/2"
|
1 9/16"
|
Full
|
6x5/8 Flat
|
400
|
34 lbs
|
Antique Brass with Minaret
|
| 7124H0340753 |
2 1/2"
|
2"
|
Full
|
6x5/8 Flat
|
500
|
48 lbs
|
Bright Brass
|
| 7124PRH0054AB |
2 1/2"
|
1 5/8"
|
Full
|
6x5/8 Flat
|
500
|
44 lbs
|
Antique Brass
|
| 7124PRH0054BK |
2 1/2"
|
1 5/8"
|
Full
|
6x5/8 Flat
|
500
|
44 lbs
|
Black
|
Sheared Pin Butt Hinges
|
Part Number
|
Length
|
Open Width
|
Material Thickness
|
Pin Diameter
|
Swage
|
Recommended Screw
|
Case Quantity
|
Case Weight
|
Finish
|
| 7104H931112ZN |
1 1/2"
|
1 1/2"
|
0.042
|
0.09
|
Flat
|
5x5/8 Flat
|
400
|
14#
|
Zinc
|
| 7124H0330200 |
1 1/2"
|
1 3/8"
|
0.042
|
0.09
|
Flat
|
5x5/8 Flat
|
400
|
14#
|
Bright Brass
|
Large Butt Hinges
|
Part Number
|
Length
|
Width
|
Finish
|
Recommended Screw
|
Case Quantity
|
| 7122282806R |
3"
|
3"
|
Bright Brass
|
8x3/4 Flat
|
100
|
