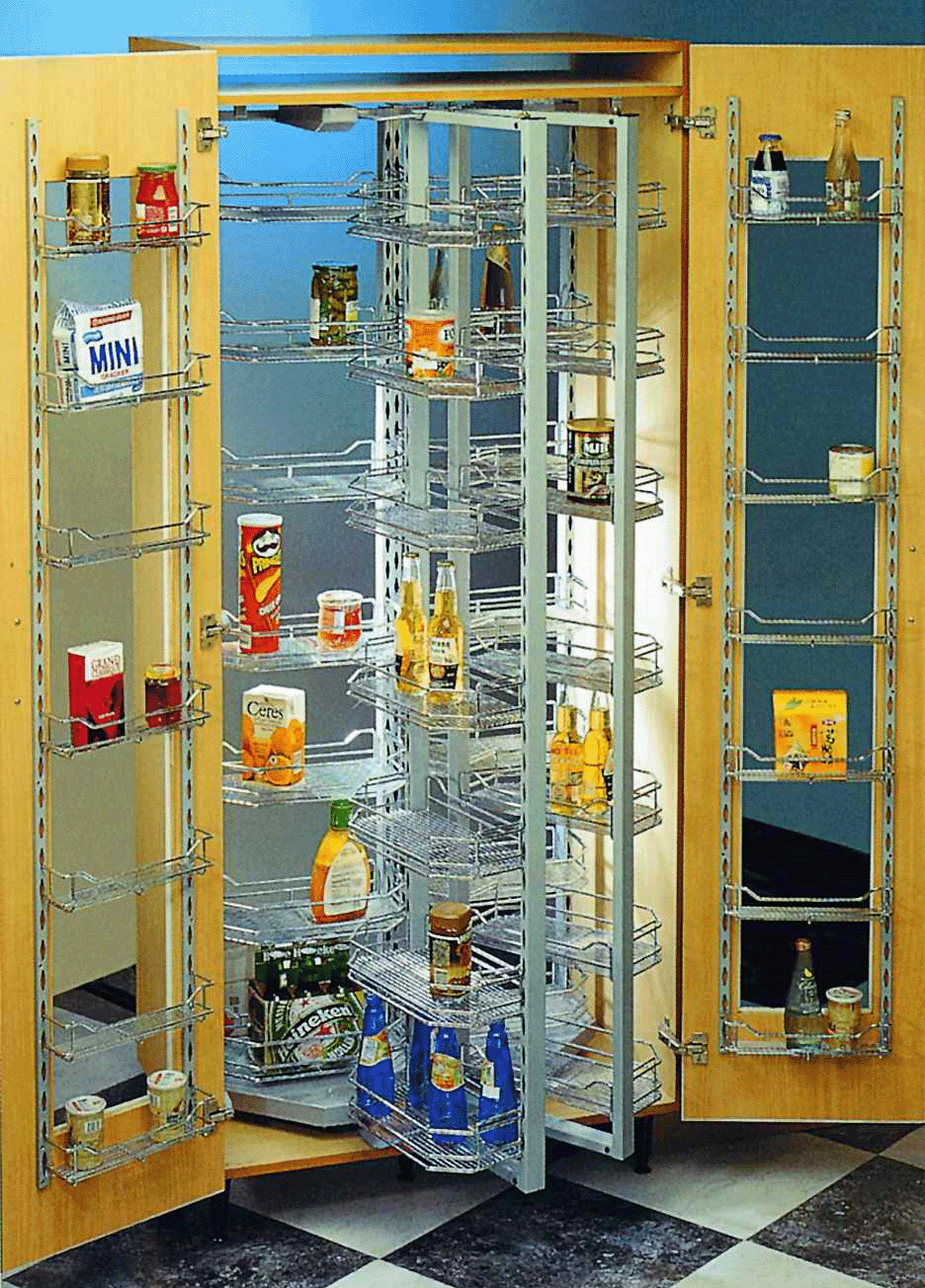

Chef's Pantry Unit

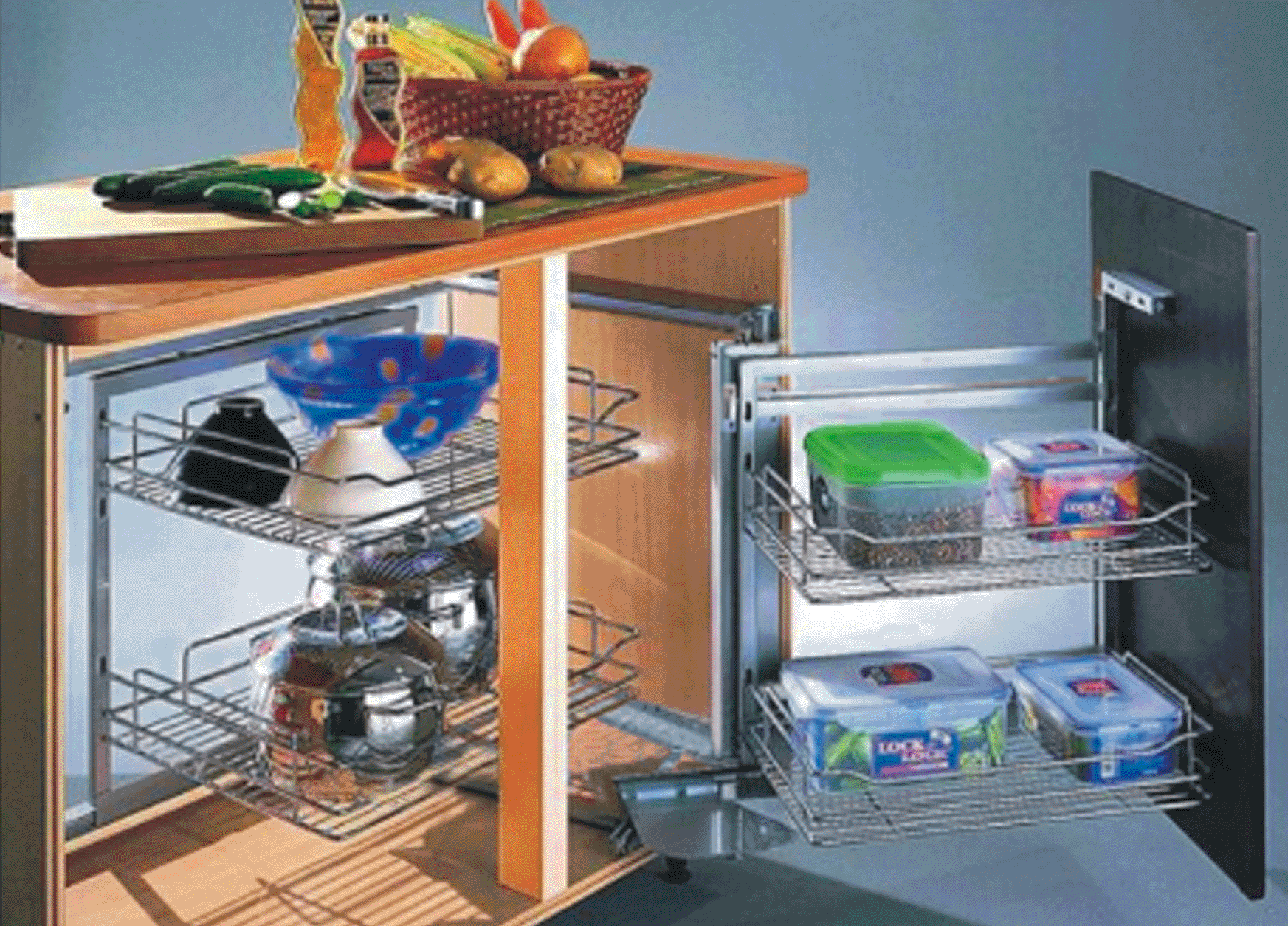

Corner Organizer
The item can assembled for left and right hand.
Door mount hardware makes for easy installation.
Frame mounted to full extension heavy duty slide.
Adjustable basket locations.
Door width: 400-450mm
Load capacity: Side frame 15kg/33lbs
Load capacity: Inner frame 20kg/44lbs
Steel chrome plated.
Part Number: FUJASMH111A
Set includes:
1 frame set (inner cabinet dimensions)
540mm H x 860-968mm W x 490mm D
2 MA11 wire basket 89mm H x 263mm W x 436mm D
2 MA12 wire basket 88mm H x 378mm W x 435mm D
Dual action allows rear baskets to move forward.
Ladder brackets and baskets fit on to back of doors to provide extra storage.
All basket locations are adjustable.
Part Number: FUCA120
Set Includes:
1 C20 Frame set (inner cabinet dimensions)
1270mm H x 860mm W x 510mm D

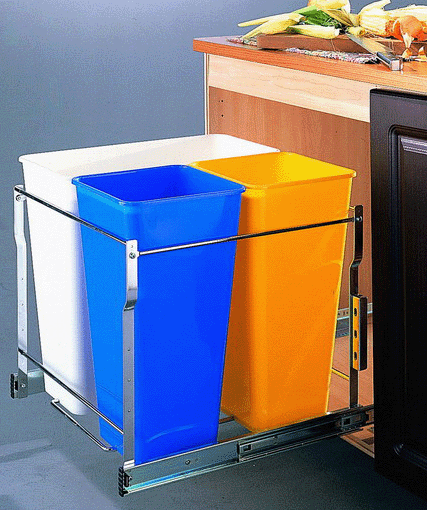

Pull-Out Recycle Unit

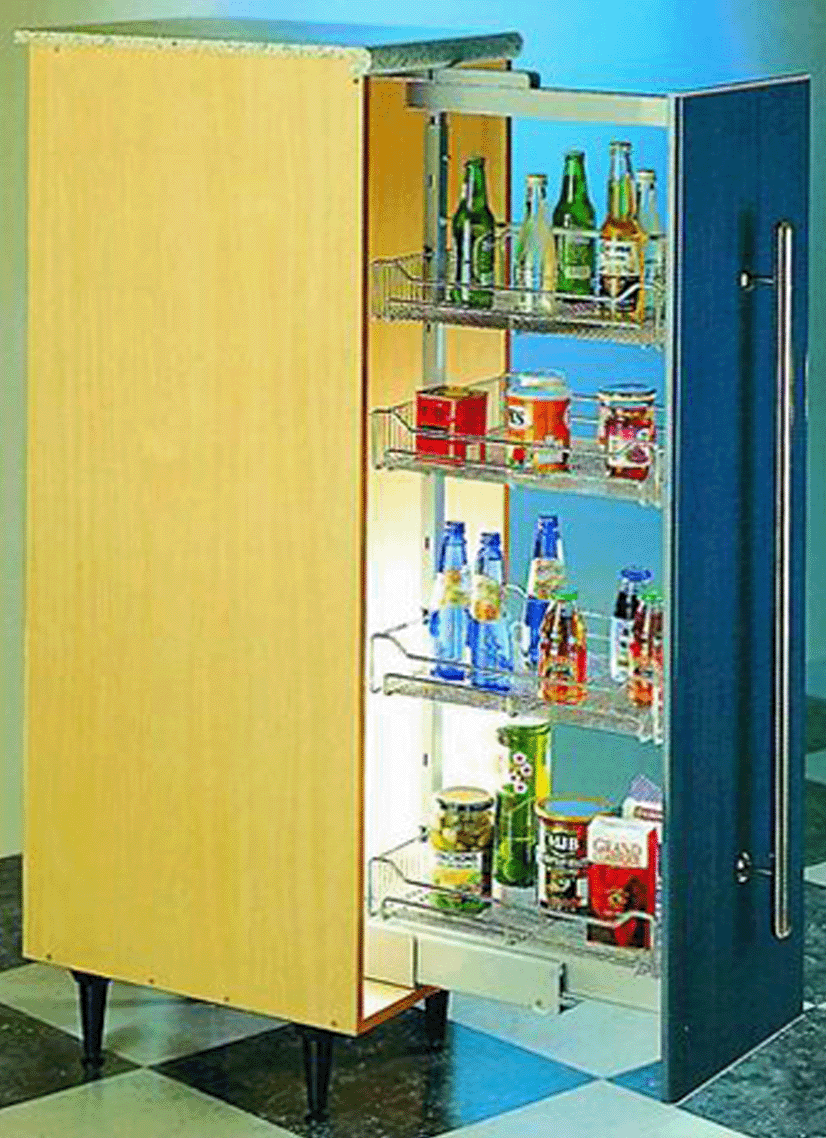

High Pull-Out Unit
Waste bins are sold separately.
All steel frame mounted to 100lb capacity full extension slides.
1 set of slides are included 500mm.
Door mount hardware included.
Single 12" width Part Number: FUF5300
Double 24" width Part Number: FUF5600
Adjustable basket locations.
Heavy 450 lb full extension slide.
Each pull-out includes:
H200 clip on basket 250mm x 470mm x 85mm
H300 clip on basket 350mm x 470mm x 85mm
1 set of H901 full extension slides 490mm
Waste Bins
|
Part Number
|
Size
|
Baskets Included
|
| FUHA131C | 12" x 50" - 61 3/4" |
4 H200 & 4 H300
|
| FUHA141C | 15 3/4" x 50" - 61 3/4" |
4 H200 & 4 H300
|
| FUHB131C | 12" x 65 3/4" - 77 1/2" |
5 H200 & 5 H300
|
| FUHB141C | 15 3/4" x 65 3/4" - 77 1/2" |
5 H200 & 5 H300
|
| FUHC131C | 12" x 73 5/8" - 85 3/8" |
6 H200 & 6 H300
|
| FUHC141C | 15 3/4" x 73 5/8" - 85 3/8" |
6 H200 & 6 H300
|
16 Quart
37 Quart
|
Part Number
|
Color
|
| FUBIN1030S |
White
|
| FUBIN1135S |
Blue
|
| FUBIN1120S |
Yellow
|
| FUBIN1112S |
Green
|
|
Part Number
|
Color
|
| FUBIN1030L |
White
|
| FUBIN1135L |
Blue
|
| FUBIN1120L |
Yellow
|
| FUBIN1112L |
Green
|

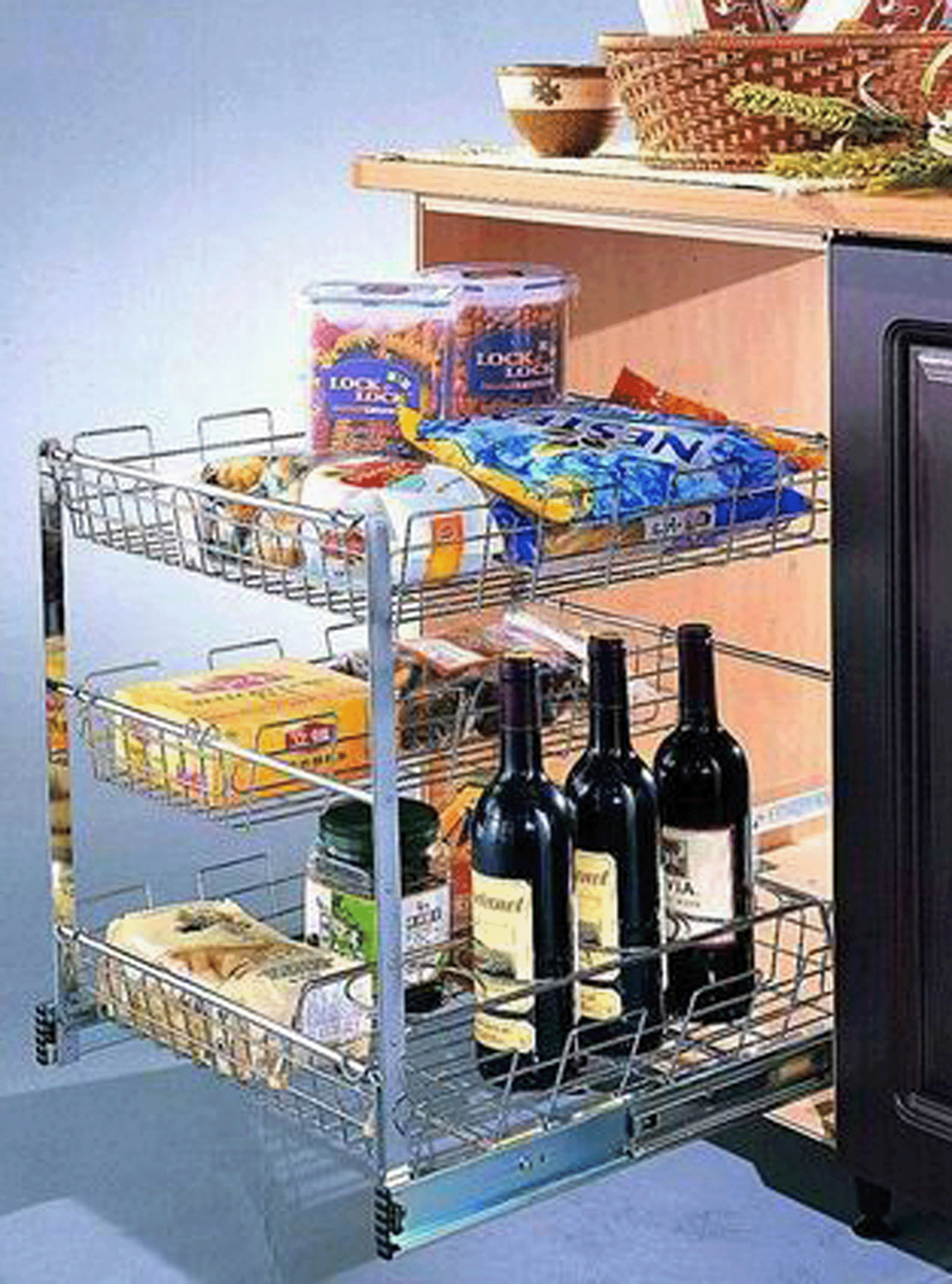

3 Basket Pull-Out Unit

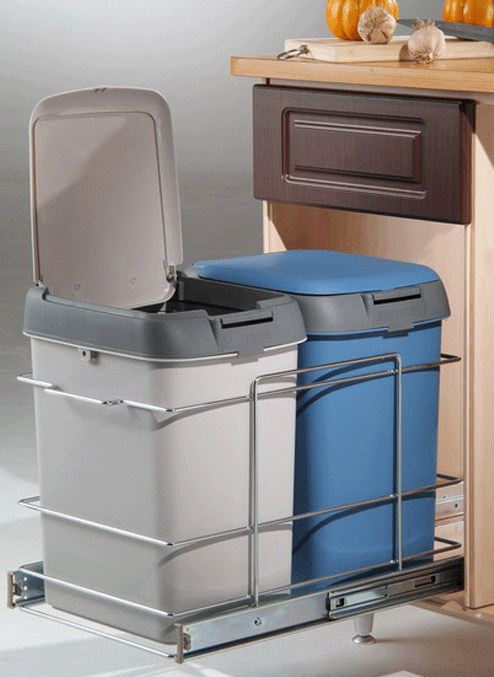

Double Waste Bin Pull-Out With Cover
All steel frame mounted to 100lb capacity full extension slides.
Door mount hardware included.
Each set includes:
1 upright assembly
1 base assembly
1 F120 bottle holder 485mm x 100mm x 20mm
1 set of full extension slides 500mm
3 various clip-on baskets depending on the part number.
Height: 436mm
Width: 364mm
Depth: 525mm
Cabinet width: 400mm
Chrome finish
Part Number: FUJASFJ162A
Part Number: FUJASFJ162C
|
Part Number
|
Size
|
| FUFR125A |
12" x 20"
|
| FUFR130A |
15" x 20"
|
| FUFR140A |
18" x 20"
|
| FUFR150A |
21" x 20"
|
| FUFR160A |
24" x 20"
|

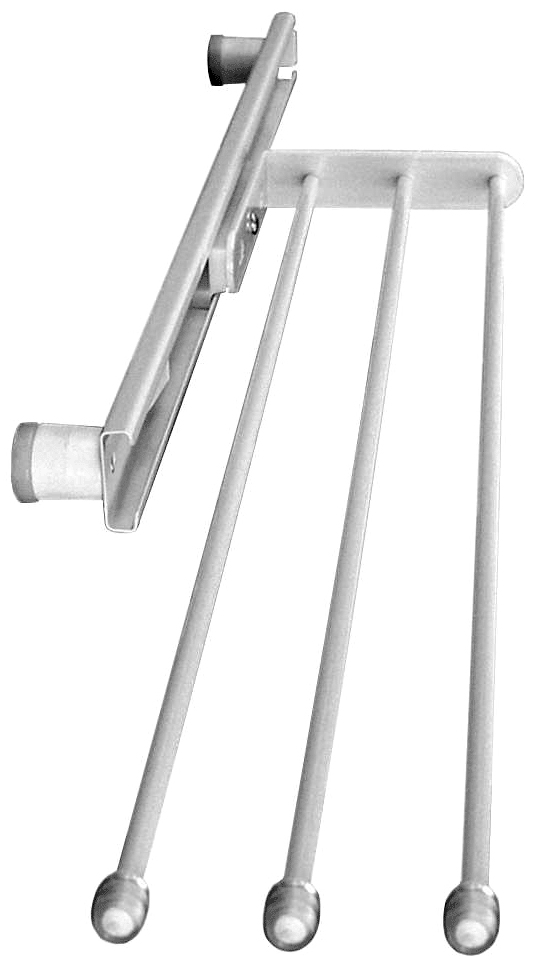

Towel Bar

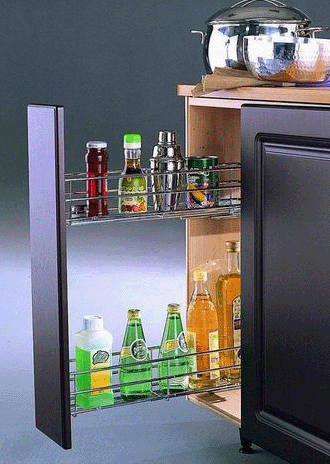

Space Genie Pull-Out
|
Part Number
|
Length
|
Extension
|
Color
|
| FUTBC17 |
17"
|
12"
|
White
|
Height: 20 55/64"
Width: 4 31/64"
Depth: 18 29/32"
Cabinet Width: 5 29/32"
Chrome finish.
Part Number: FUFC100

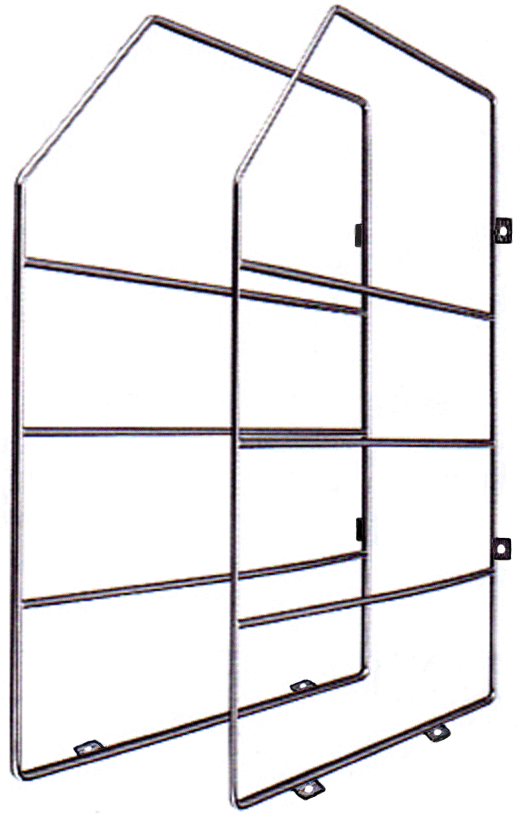

Tray Divider
Soft Closing Bus Door
|
Part Number
|
Height
|
Tray Depth
|
Finish
|
| FUJASDVD12C |
12"
|
18"
|
Chrome
|
| FUJASDVD18C |
18"
|
18"
|
Chrome
|
Door pulls out away from the cabinet, then moves to the side revealing contents of cabinet.
Soft close for quiet operation and current design demands.
Vertical stabilizer bar ensures parallel operation.
Vertical bar can be cut to handle smaller doors.
Maximum door height is 2164mm (85"), plus overlay.
Maximum door thickness 30mm (1 3/16")
Works for right or left openings.
Silver gray epoxy finish.
|
Part Number
|
Min Cabinet Interior Width
|
Depth
|
Max Door Width
|
Door Movement
|
| FUAD145 |
414mm
|
200mm
|
445mm
|
445mm
|
| FUAD150 |
464mm
|
200mm
|
500mm
|
500mm
|
| FUAD160 |
564mm
|
200mm
|
600mm
|
600mm
|
