U.S. Industrial Fasteners of Arizona, Inc.
 |
Washers

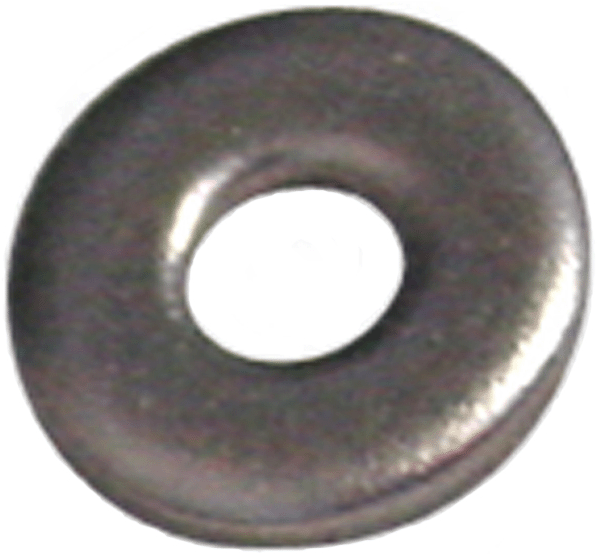

USS Flat Washers

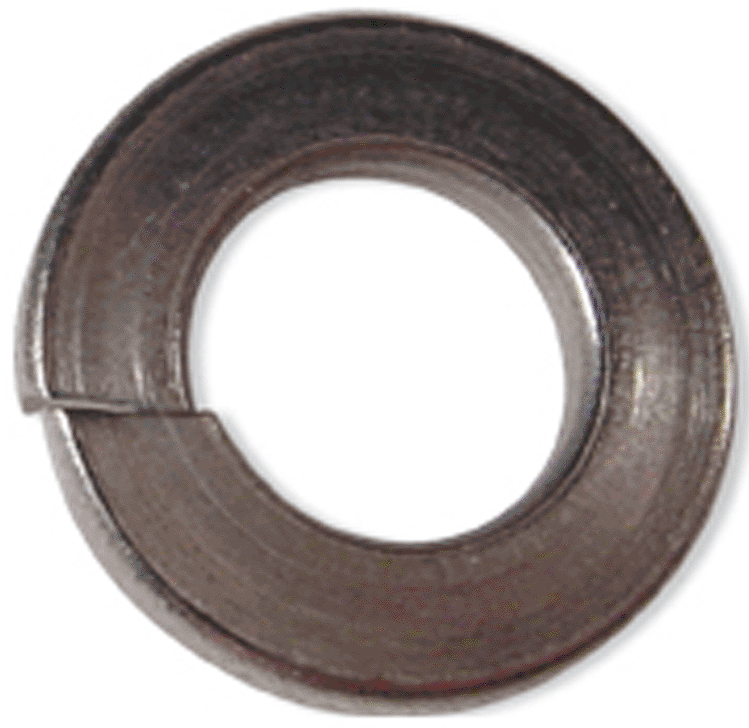

Medium Split Lock Washers
Available in 18-8 stainless steel, hot dipped galvanized, black oxide, and plain.
Available in 18-8 stainless steel, brass, black oxide, and plain.
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| 3/16 | 420110xx |
2.77
|
18,100
|
| 1/4 | 420114xx |
6.71
|
7,450
|
| 5/16 | 420125xx |
11.49
|
4,500
|
| 3/8 | 420126xx |
14.93
|
3,350
|
| 7/16 | 420127xx |
24.39
|
2,050
|
| 1/2 | 420128xx |
38.46
|
1,300
|
| 9/16 | 420129xx |
45.45
|
1,100
|
| 5/8 | 420130xx |
76.92
|
650
|
| 3/4 | 420132xx |
110.00
|
405
|
| 7/8 | 420134xx |
154.00
|
325
|
| 1 | 420136xx |
188.70
|
265
|
| 1 1/8 | 420137xx |
222.20
|
225
|
| 1 1/4 | 420138xx |
263.00
|
190
|
| 1 1/2 | 420140xx |
385.00
|
130
|
| 2 | 420144xx |
633.00
|
80
|
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| #4 | 423104xx |
.10
|
150,000
|
| #5 | 423105xx |
.20
|
150,000
|
| #6 | 423106xx |
.30
|
150,000
|
| #8 | 423108xx |
.50
|
100,000
|
| #10 | 423110xx |
.70
|
75,000
|
| #12 | 423112xx |
1.00
|
45,000
|
| 1/4 | 423114xx |
2.20
|
22,500
|
| 5/16 | 423125xx |
3.80
|
12,500
|
| 3/8 | 423126xx |
6.00
|
8,000
|
| 7/16 | 423127xx |
9.00
|
5,500
|
| 1/2 | 423128xx |
13.00
|
3,750
|
| 9/16 | 423129xx |
18.50
|
2,500
|
| 5/8 | 423130xx |
24.00
|
2,000
|
| 3/4 | 423132xx |
40.00
|
1,250
|
| 7/8 | 423134xx |
60.00
|
750
|
| 1 | 423136xx |
88.00
|
500
|
| 1 1/4 | 423138xx |
178.00
|
350
|
| 1 1/2 | 423140xx |
282.00
|
138
|
SAE Flat Washers

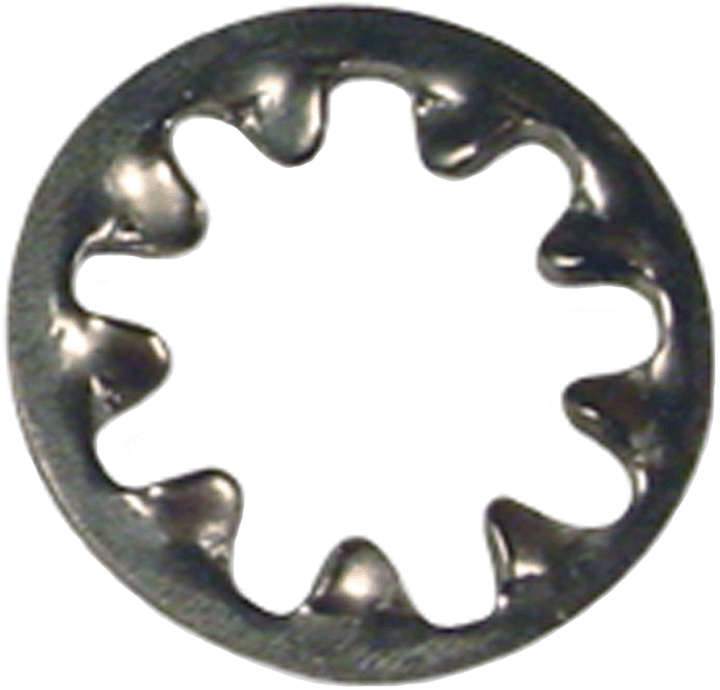

Internal Tooth Lock Washers
Available in 18-8 stainless steel, brass, hot dipped galvanized, black oxide, and plain.
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| #2 | 420302xx |
1.00
|
2,500
|
| #4 | 420304xx |
1.00
|
2,500
|
| #6 | 420306xx |
1.27
|
39,500
|
| #8 | 420308xx |
1.69
|
29,250
|
| #10 | 420310xx |
2.20
|
21,750
|
| 1/4 | 420314xx |
4.50
|
11,100
|
| 5/16 | 420325xx |
5.13
|
9,600
|
| 3/8 | 420326xx |
7.14
|
7,000
|
| 7/16 | 420327xx |
9.09
|
5,250
|
| 1/2 | 420328xx |
17.86
|
2,750
|
| 9/16 | 420329xx |
22.22
|
2,150
|
| 5/8 | 420330xx |
27.03
|
1,800
|
| 3/4 | 420332xx |
47.62
|
1,050
|
| 7/8 | 420334xx |
64.52
|
800
|
| 1 | 420336xx |
85.47
|
600
|
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| #4 | 423404xx |
.10
|
50,000
|
| #6 | 423406xx |
.20
|
50,000
|
| #8 | 423408xx |
.30
|
50,000
|
| #10 | 423410xx |
.40
|
50,000
|
| 1/4 | 423414xx |
.60
|
25,000
|
| 5/16 | 423425xx |
1.10
|
25,000
|
| 3/8 | 423426xx |
1.60
|
25,000
|
| 1/2 | 423428xx |
3.00
|
25,000
|

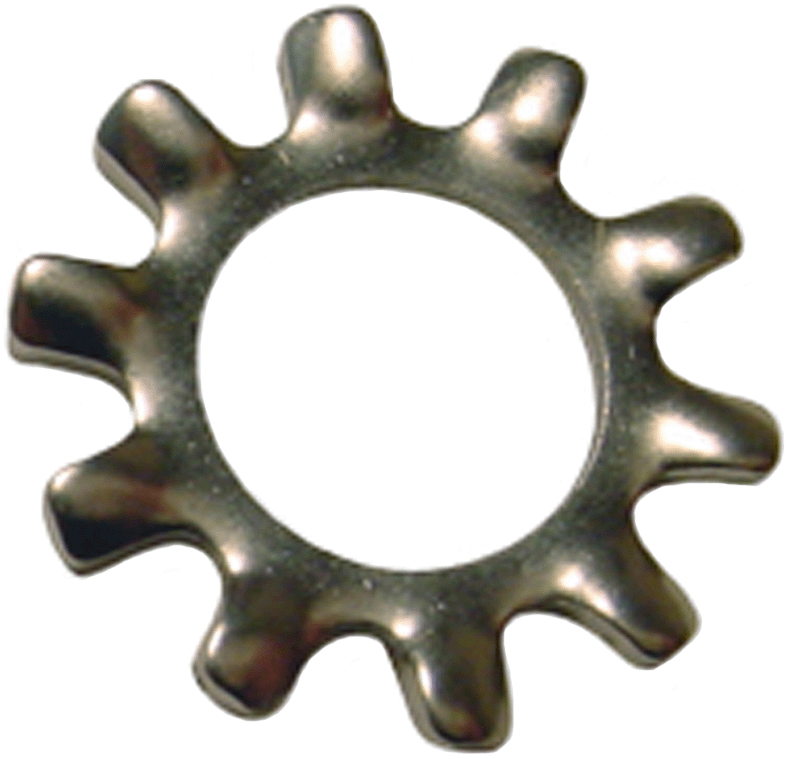

External Tooth Lock Washers
USS Flat Washers Grade 8
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| #4 | 423304xx |
.10
|
50,000
|
| #6 | 423306xx |
.20
|
50,000
|
| #8 | 423308xx |
.30
|
50,000
|
| #10 | 423310xx |
.40
|
50,000
|
| 1/4 | 423314xx |
.60
|
50,000
|
| 5/16 | 423325xx |
1.10
|
25,000
|
| 3/8 | 423326xx |
1.60
|
25,000
|
| 7/16 | 423327xx |
2.10
|
25,000
|
| 1/2 | 423328xx |
3.00
|
25,000
|
| 3/4 | 423332xx |
7.80
|
10,000
|
Available in plain.
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| 1/4 | 420714xx |
7.70
|
6,000
|
| 5/16 | 420725xx |
10.40
|
4,500
|
| 3/8 | 420726xx |
18.40
|
2,500
|
| 7/16 | 420727xx |
30.00
|
1,500
|
| 1/2 | 420728xx |
44.00
|
1,000
|
| 9/16 | 420729xx |
52.20
|
900
|
| 5/8 | 420730xx |
86.00
|
500
|
| 3/4 | 420732xx |
137.10
|
350
|
| 7/8 | 420734xx |
174.50
|
275
|
| 1 | 420736xx |
213.30
|
225
|
Dome Washers
SAE Flat Washers Grade 8
Available in plain.
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| 3/8 | 423926xxD |
20.72
|
2,000
|
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| 1/4 | 420814xx |
5.30
|
8,500
|
| 5/16 | 420825xx |
6.00
|
7,500
|
| 3/8 | 420826xx |
8.40
|
5,500
|
| 7/16 | 420827xx |
14.30
|
3,000
|
| 1/2 | 420828xx |
23.50
|
2,000
|
| 9/16 | 420829xx |
30.00
|
1,500
|
| 5/8 | 420830xx |
43.00
|
1,000
|
| 3/4 | 420832xx |
65.70
|
700
|
| 7/8 | 420834xx |
90.00
|
500
|
| 1 | 420836xx |
120.00
|
400
|
Metric Flat Washers
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| 4mm | 426104xx |
.70
|
1,000
|
| 5mm | 426105xx |
1.00
|
1,000
|
| 6mm | 426106xx |
2.50
|
1,000
|
| 7mm | 426107xx |
3.10
|
1,000
|
| 8mm | 426108xx |
4.70
|
1,000
|
| 10mm | 426110xx |
9.00
|
1,000
|
| 12mm | 426112xx |
13.80
|
1,000
|
| 14mm | 426114xx |
19.00
|
1,000
|
| 16mm | 426116xx |
24.90
|
1,000
|
A-325 Flat Washers
Available in hot dipped galvanized.
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| 3/8 | 421526xx |
16.30
|
6,000
|
| 1/2 | 421528xx |
19.00
|
2,500
|
| 5/8 | 421530xx |
38.60
|
1,000
|
| 3/4 | 421532xx |
45.00
|
1,000
|
| 7/8 | 421534xx |
66.60
|
500
|
| 1 | 421536xx |
88.00
|
375
|
| 1 1/4 | 421538xx |
132.00
|
300
|
Metric Medium Split Lock Washers
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| 3mm | 426203xx |
.20
|
1,000
|
| 4mm | 426204xx |
.40
|
1,000
|
| 5mm | 426205xx |
.80
|
1,000
|
| 6mm | 426206xx |
1.80
|
1,000
|
| 7mm | 426207xx |
2.10
|
1,000
|
| 8mm | 426208xx |
3.50
|
1,000
|
| 10mm | 426210xx |
5.60
|
1,000
|
| 12mm | 426212xx |
8.40
|
1,000
|

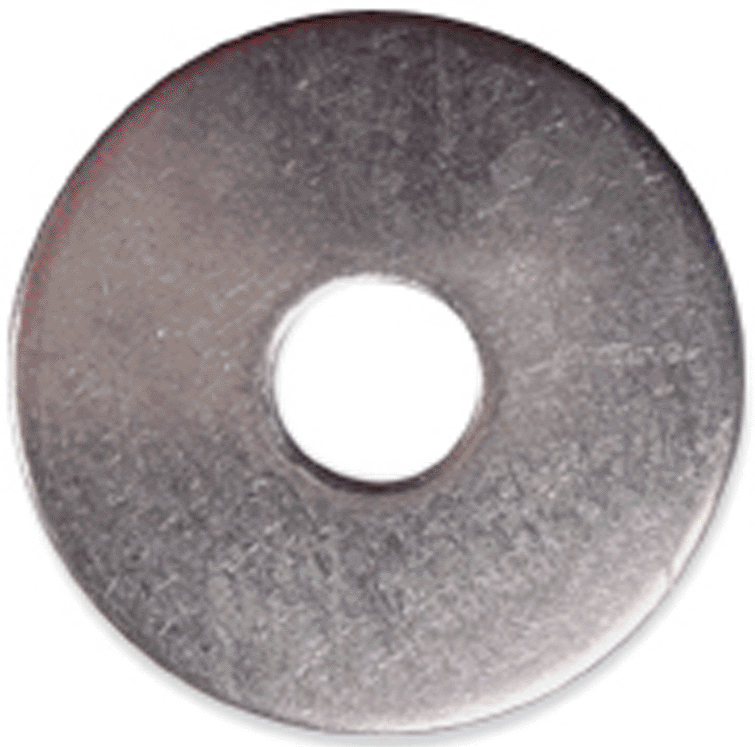

Fender Washers
Available in stainless steel, black oxide, and plain.
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| 4 x 5/8 | 42110410xx |
4.00
|
2,500
|
| 1/8 x 3/4 | 42110612xx |
9.00
|
2,400
|
| 3/16 x 1/2 | 42111008xx |
11.30
|
2,400
|
| 3/16 x 7/8 | 42111014xx |
14.00
|
2,400
|
| 3/16 x 1 | 42111016xx |
14.29
|
3,775
|
| 3/16 x 1 1/4 | 42111018xx |
23.30
|
2,092
|
| 1/4 x 1 | 42111416xx |
13.33
|
3,450
|
| 1/4 x 1 1/4 | 42111418xx |
21.74
|
2,138
|
| 1/4 x 1 1/2 | 42111420xx |
32.26
|
1,458
|
| 5/16 x 1 1/4 | 42112518xx |
20.83
|
2,193
|
| 5/16 x 1 1/2 | 42112520xx |
31.25
|
1,458
|
| 3/8 x 1 1/2 | 42112620xx |
30.30
|
1,510
|
| 1/2 x 2 | 42112824xx |
52.63
|
853
|
| 1/2 x 2 12 Gauge |
42122824xx |
83.33
|
600
|
Finish Washers
Available in 18-8 stainless steel, brass, and black oxide.
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| 6 | 424306xx |
.80
|
10,000
|
| 8 | 424308xx |
1.10
|
10,000
|
| 10 | 424310xx |
1.40
|
10,000
|
| 12 | 424312xx |
2.10
|
10,000
|
| 1/4 | 424314xx |
2.70
|
10,000
|

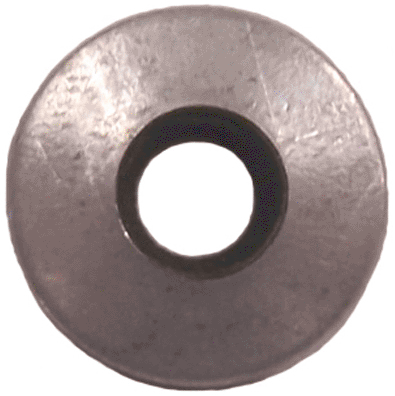

Steel Backed Neoprene Washers
AN Washers
|
Size
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| #8 - #10 x 1/2 | 42440808xx |
2.40
|
12,500
|
| #8 - #10 x 5/8 | 42441010xx |
4.00
|
7,500
|
| #8 - #10 x 3/4 | 42441012xx |
4.00
|
6,000
|
| #8 - #10 x 7/8 | 42440814xx |
8.60
|
4,000
|
| #8 - #10 x 1 1/8 | 42440817xx |
13.50
|
2,000
|
| #12 x 5/8 | 42441210xx |
3.00
|
7,500
|
| #14 x 5/8 | 42441410xx |
3.60
|
7,500
|
| #14 x 1 | 42441416xx |
7.00
|
2,500
|
| 3/8 x 3/4 | 42442612xx |
14.00
|
1,200
|
|
Size
|
Part Number
|
Carton Quantity
|
| #6 x .267 x .032 | 421306xxL |
1,000
|
| #8 x .375 x .032 | 421308xxL |
1,000
|
| #10 x .438 x .032 | 421310xxL |
1,000
|
| 1/4 x .500 x .063 | 421514xx |
1,000
|
| 1/4 x .500 x .032 | 421514xxL |
1,000
|
| 5/16 x .562 x .062 | 421325xx |
1,000
|
| 5/16 x .562 x .032 | 421325xxL |
1,000
|
| 3/8 x .625 x .063 | 421326xx |
1,000
|
| 3/8 x .625 x .032 | 421326xxL |
1,000
|
| 7/16 x .750 x .062 | 421327xx |
1,000
|
| 1/2 x .785 x .063 | 421328xx |
1,000
|
| 5/8 x 1.188 x .063 | 421330xx |
1,000
|
| 3/4 x 1.312 x .032 | 421332xxL |
1,000
|

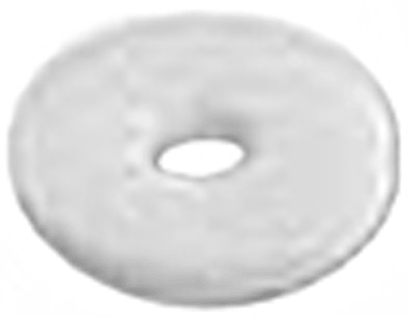

Nylon Flat Washers
|
Size
|
Part Number
|
Carton Quantity
|
| #4 x 1/4 x .032 | 42030438 |
1,000
|
| #6 x 5/16 x .032 | 42030638 |
1,000
|
| #6 x 5/16 x .062 | 4203063862 |
1,000
|
| #8 x 3/8 x .032 | 42030838 |
1,000
|
| #8 x 3/8 x .062 | 4203083862 |
1,000
|
| #10 x 3/8 x .032 | 42031038 |
1,000
|
| #10 x 3/8 x .062 | 4203103862 |
1,000
|
| 1/4 x 1/2 x .062 | 42031438 |
1,000
|
| 5/16 x 3/4 x .040 | 42032538L |
1,000
|
| 5/16 x 3/4 x .062 | 42032538 |
1,000
|
| 3/8 x 5/8 x .062 | 42032638 |
1,000
|
