Drawer Slides
Euro Style Drawer Slides
24" 600mm
22" 550mm
20" 500mm
18" 450mm
16" 400mm
14" 350mm
12" 300mm
35mm
128mm
96mm
128mm
128mm
Self Closing Import Slides
Premium Import Slides
Size
White
Brown
Black
Stay Close
Box
Quantity
12" - 300mm 7111KSC12W
20 sets
14" - 350mm 7111KSC14W 7111KSC14B 7110214IXF
20 sets
16" - 400mm 7111KSC16W 7111KSC16B 7110216IXF
20 sets
18" - 450mm 7111KSC18W 7111KSC18B
20 sets
20" - 500mm 7111KSC20W 7111KSC20B
20 sets
22" - 550mm 7111KSC22W 7111KSC22B
20 sets
24" - 600mm 7111KSC24W
20 sets
Size
Part Number
Color
Box
Quantity
12" - 300mm FGV5408201300
White
25 sets
14" - 350mm FGV5408201350
White
25 sets
16" - 400mm FGV5408201400
White
25 sets
18" - 450mm FGV5408201450
White
25 sets
20" - 500mm FGV5408201500
White
25 sets
22" - 550mm FGV5408201550
White
25 sets
24" - 600mm FGV5408201600
White
25 sets
Rear Sockets
Recommended Screws for Drawer Slides
Euro Screws are available please see Particle Board Screw Section.
Fixed Socket
Adjustable Socket
Size
Thread Type
Part Number
Carton
Quantity
6 x 1/2 Coarse Thread 01610608xx
30,000
6 x 5/8 Coarse Thread 01610610xxS
25,000
6 x 3/4 Coarse Thread 01610612xx
20,000
Part Number
Type
711222KSCRA Adjustable Rear Right Socket
711222KSCLA Adjustable Rear Left Socket
711222EUSKT1R Fixed Rear Right Socket
711222EUSKT1L Fixed Rear Left Socket
Euro Drawer Slides - Salice
Selby Cabinet Mounted Double and Queen Size Platform Bed Mechanism
Part Number
Size
Load Rating lbs/pr
Color
Box
Quantity
65A108351350
14"
75
White
100 sets
65A108401400
16"
75
White
100 sets
65A108451450
18"
75
White
100 sets
65A108501500
20"
75
White
100 sets
65A108551550
22"
75
White
100 sets
Wood frame is built on back side of door to receieve mattress or box spring. Adjustable-tension counterbalanced spring units control descent and assist ascent. Fully mounted inside cabinet, not bolted to the floor! Pivoting footrest folds inside cabinet when closed. Cabinet fastens to the wall with a small "L" bracket at top. Cabinet depth only 14"!

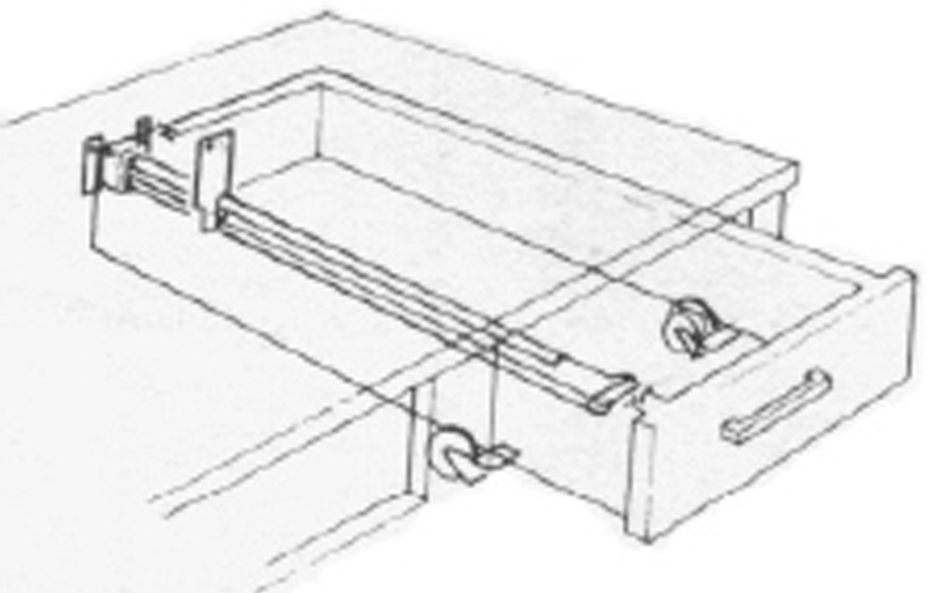

Monorail Slide
Inside Mount
Part Number: 7104XSMVO138
Outside Mount
Part Number: 7104XSMVO138X
Roller and rail sold as a unit.
22" length.
35 lb capacity.
Part Number: 71118422
100 per box.
Selby INDAmatic
Back Slide for Wooden Slides
*Works with any euro slide or ball bearing slide requiring 1/2" side clearance.
*Mechanism mounts to cabinet side and actuator mounts to drawer.

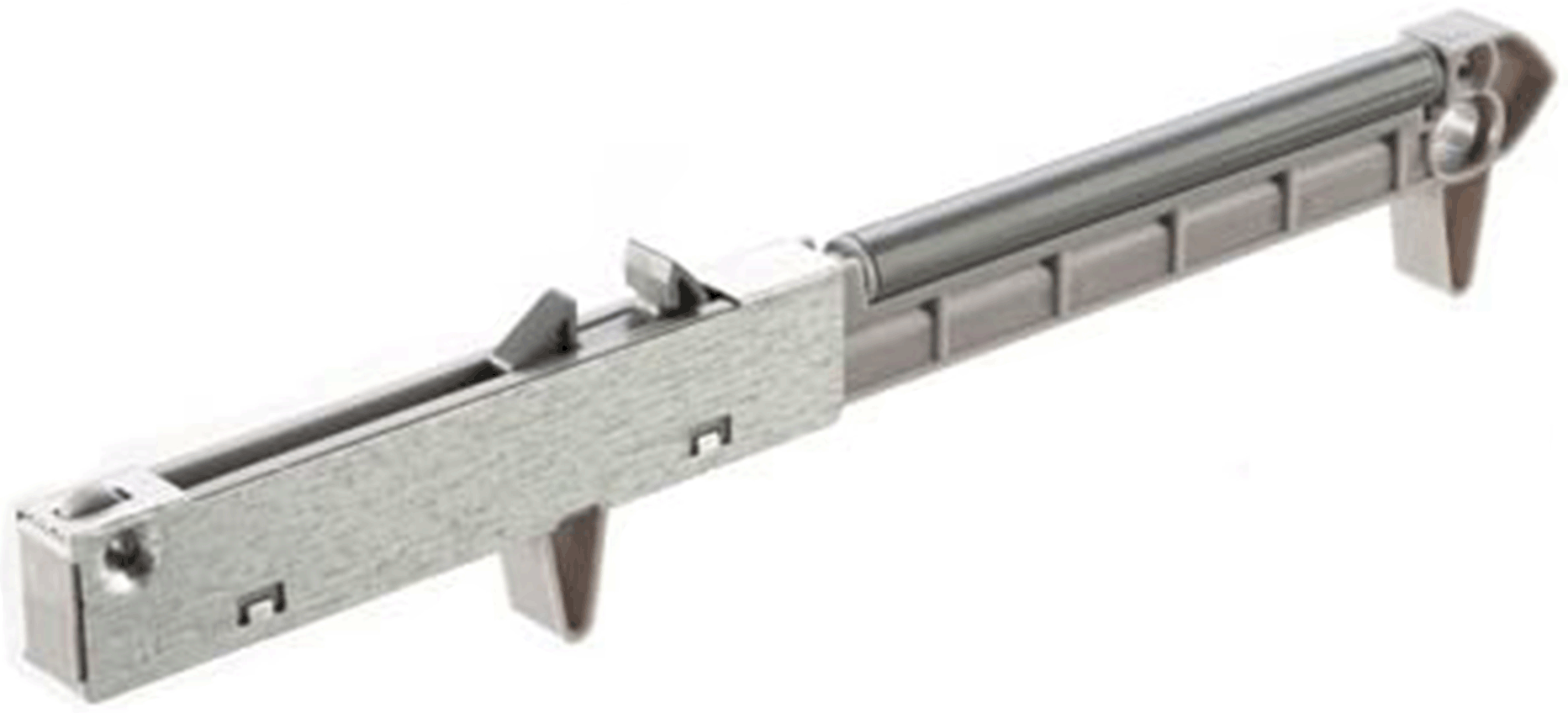

*Soft close adapter picks up the drawer 2" from the cabinet front and closes it softly and securely.
*Use a single adapter for light weight drawers up to 16" and one adapter for each side of the drawer for slides over 18" or carrying heavy loads.
*For use with all ball bearing slides, two adapters are required and the rubber retainer at the back end of the slide must be removed for drawer to close completely.
Backslide
1 3/16" x 5/16" slide holding area.
Part Number: 711202509
Drawer Slide Accessories
Part Number: 710497980101
Packed 50 per box.
Front Plate
Throat dimensions:
1/8" x 11/16" x 1/4"
Part Number: 711203
Impaz Drawer System
Roller
5/8" flanged roller to facilitate drawer alignment.
Can be installed with nails or staples.
Part Number: 711206
"Impaz" is the complete solution for all your cabinet drawer needs.
"Impaz" offers unique features:
*Three heights (3.3", 4.6", 5.8")
*Steel drawer side panels
*Self closing
*Epoxy coated
*Two way front adjustments
*Clip-on front brackets
*RTA assembly (no machines required)
*Rail system
*Single extension
*Load capacity 25 kg/55 lbs
*Smooth rolling mechanism
*Double out-stop safety feature
*Locked-in position when extended
Backslide
1 3/16" x 5/16" slide holding area.
Part Number: 711202
Rear Socket
Throat dimensions:
1 9/16" x 9/16" x 5/8"
Part Number: 711201
Drawer Systen
Drawer Slide Accessories
Drawer Glide
1/4" thick can be stapled on each end for extra holding strength.
Part Number: 7146230W		 1. Cabinet members left & right
2. Drawers sides left & right
3. Front fixing brackets (Sold Separately)
4. Cover caps (Sold Separately)
Drawer Glide
1 1/8" x 1 1/8" x 1/2"
1/8" thick.
Staple tabs are 5/16" long and .05" thick.
Part Number: 711214
Drawer Glide
1 1/8" x 1 1/8" x 1/2"
1/8" thick.
Staple tabs are 5/16" long and .05" thick.
Part Number: 711204
Part Number
Length
Height
Color
Box
Quantity
FU4021400
400mm 16"
3.3"
White
10
FU4021450
450mm 18"
3.3"
White
10
FU4021500
500mm 20"
3.3"
White
10
FU4021550
550mm 22"
3.3"
White
10
FU4321400
400mm 16"
4.6"
White
5
FU4321450
450mm 18"
4.6"
White
5
FU4321500
500mm 20"
4.6"
White
5
FU4321550
550mm 22"
4.6"
White
5
FU4621400
400mm 16"
5.8"
White
5
FU4621450
450mm 18"
5.8"
White
5
FU4621500
500mm 20"
5.8"
White
5
FU4621550
550mm 22"
5.8"
White
5
L Clip Tack Glide
1/2" x 3/4" x 1/2"
Part Number: 711213
Step Spacer
Step spacer brown.
Used for squaring cabinets.
Part Number: 631000466
1,000 per box
Front Fixing Bracket - Clip-On
Type
Right
Left
Screw-On
FU16040R
FU16040L
Stand Off
Stand off for drawer alignment correction.
Cover Cap for Brackets
Right - Part Number: FU66040R
Left - Part Number: FU66040L
3602
3603
Size
Part Number
Color
Box
Quantity
3mm 7144H052006BK
Black
2,000
1/2" 71443600
White
1,000
3/4" 71443601
White
2,500
3/4" 71443601BK
Black
2,500
13/16" 71443628W
White
2,500
1" 71443602
White
2,500
1" 71443602BK
Black
2,000
32mm 7144H052008BK
Black
1,000
1 1/2" 71443603BK
Black
1,000
1 1/2" 71443608AL
Almond
1,000
1 1/2" 71443608
White
1,000
1 1/2" 7144H052005BK
Black
1,000
1 7/8" 71443630BK
Black
500
Drawer Front Marking Jigs
For 4021, 4321, 4621
Part Number: FU91040
Railing Marking Template
Side Spacers
For marking single and double railing.
Part Number: FU92404
3618
3611
3612/3625
Drilling Template is available.
Part Number: FU93000
3617
3646
Size
Part Number
Color
Outer
Diameter
Stackable
Box
Quantity
1/16" 71443618
Natural
3/4"
No
2,500
1/4" 71443612BK
Black
1"
Yes
5,000
7mm 71443650BK
Black
7/8"
Yes
5,000
3/8" 71443625
Natural
1"
Yes
5,000
1/2" 71443617BK
Black
5/8"
No
7,500
1/2" 71443611
White
1"
No
5,000
3/4" 71443646BK
Black
3/4"
No
3,000

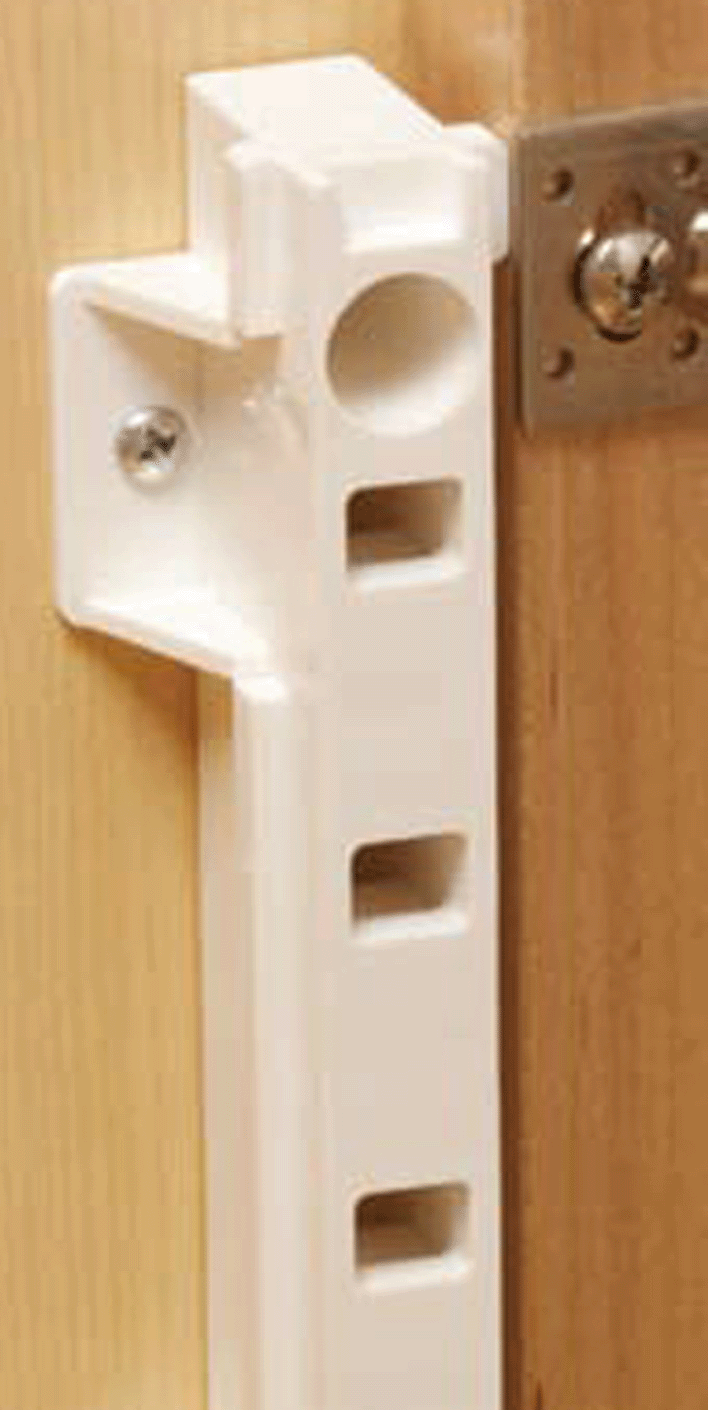

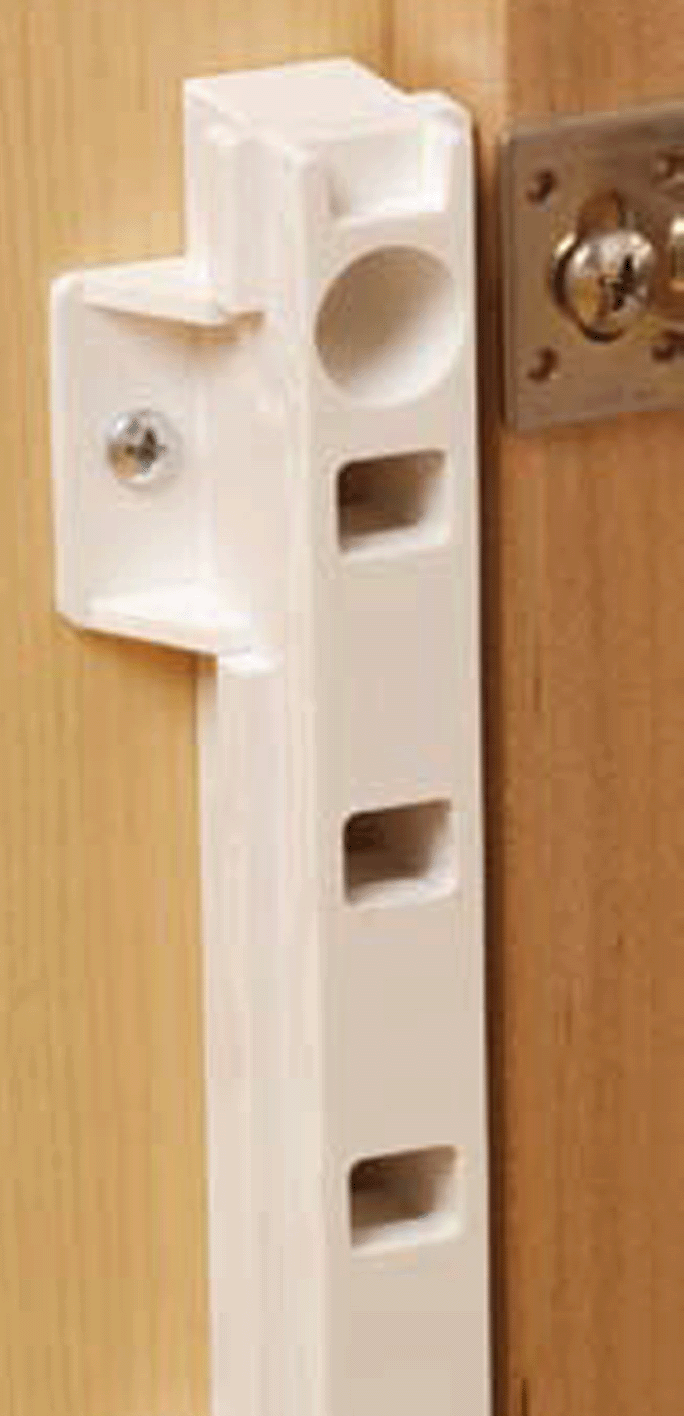

QuikTRAY™ Supports
Click Here to Watch the
QuickTRAY™ Installation Video.
1"
1 1/4"
2"
QuikTRAY™ install easily and adjusts without tools, useful with frame or frameless cabinets. With QuikTRAY™ there's no need to change your current specifications in order to maximize storage space in new or existing cabinets. The versatility and simplicity of the system works with any standard cabinet and most brands of drawer slides.
Set Includes:
4 - QuikTRAY™ Supports
8 - T-506 Hook Dowels for Machine Screw
8 - HAR-031 6-32x3/8 Machine Screw
20 - HAR-020 #6x7/16" Pan Head Phillips Zinc Screw
1 - INS-015 Instruction Sheet
Part Number
Size
Color
Box Quantity
TNB52000
1" x 20"
White
20 sets
TNB52001
1" x 20"
Beige
20 sets
TNB52200
1 1/4" x 20"
White
20 sets
TNB52201
1 1/4" x 20"
Beige
20 sets
TNB52500
2" x 20"
White
10 sets
TNB52501
2" x 20"
Beige
10 sets
Short QuikTRAY™ 1 1/4" Supports
Set Includes:
4 - QuikTRAY™ Supports
4 - T-506 Hook Dowels for Machine Screws
4 - HAR-031 6-32x3/8 Machine Screw
Part Number
Size
Color
Box Quantity
TNB52300
1 1/4" x 3 3/4"
White
20 sets
TNB52301
1 1/4" x 3 3/4"
Beige
20 sets
Center Partition Support for 3" Center Stile
Set Includes:
2 - QuikTRAY™ Center Partition Supports
1 - B-231 (20 x HAR-020 Mounting Screws)
Part Number
Type
Length
Color
Box Quantity
TNB23500
Center Partition
20"
White
12 sets
TNB23501
Center Partition
20"
Beige
12 sets
Rollout Tray Bumper
Screw on or staple.
Truss head screw is recommended
Part Number
Size
Color
Box Quantity
TNT16100
11.5 mm
Natural
2,000
TNT16102
11.5 mm
Beige
2,000
Hook Dowels
T-506
T-507
T-508
Part Number
For
Box Quantity
TNT506
Side Mount Slides
1,000
TNT507
Side Mount Slides with 1/4" Spacer
1,000
TNT508
Undermount Slides
1,000
Hook Dowel Screws
6-32 x 3/8 Phillips Flat Machine Screws for QuikTRAY™ Hook Dowels.
Packed 2,000 per box
Part Number: TNHAR031
