European Hinges

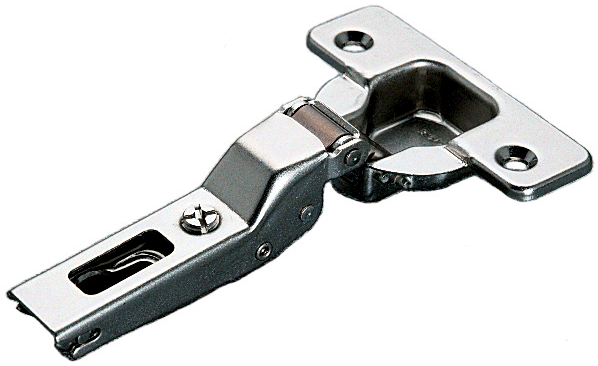

European Hinges - Salice

Swing

Attach

94 Degree
Thick Door

105 Degree

110 Degree

120 Degree

155 Degree

Cup
Width

Cup
Depth

Box
Quantity

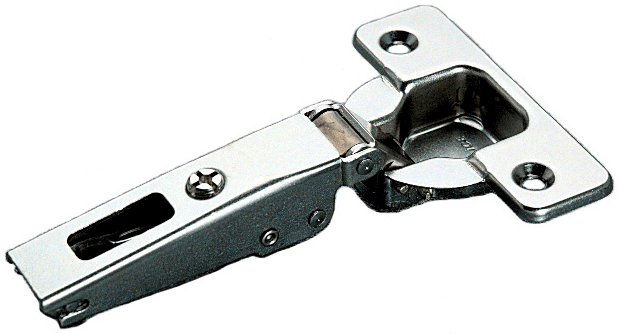

Full Overlay - 3/4 Side Panel

Free Swing	Screw In	65C2PAA99		65C2P4A99	65C2P8A99	35mm	11mm	300
Free Swing	Dowel			65C2R4A99	65C2R8A99	35mm	11mm	300
Self Closing	Screw In	65C2PBA99		65C2P6A99	65C2P9A99	35mm	11mm	300
Self Closing	Dowel	65C2RBA99		65C2R6A99	65C2R9A99	35mm	11mm	300
Self Closing	Rapido			65C276A99	65C279A99	35mm	11mm	300
Self Closing	Logica			65C2J6A99		35mm	11mm	300

Soft Closing	Screw In		65C1P6AD9			35mm	13mm	300
Soft Closing	Dowel		65C1R6AD9			35mm	13mm	300
Soft Closing	Rapido		65C176AD9			35mm	13mm	300
Soft Closing	Logica			65C7J6AD9		35mm	14mm	300

Full Overlay - 5/8 Side Panel

Self Closing	Screw In		65C2P9D99		35mm	11mm	300
Self Closing	Dowel		65C2R9D99		35mm	11mm	300

Soft Closing	Dowel	65C1R6DD9			35mm	13mm	300
Soft Closing	Dowel			65C2RMDD9	35mm	14mm	100
Soft Closing	Rapido	65C176DD9			35mm	13mm	300

Half Overlay

Free Swing	Dowel			65C2R4G99	65C2R8G99	35mm	11mm	300
Self Closing	Screw In	65C2PBG99		65C2P6G99	65C2P9G99	35mm	11mm	300
Self Closing	Dowel	65C2RBG99		65C2R6G99	65C2R9G99	35mm	11mm	300
Self Closing	Rapido			65C276G99	65C279G99	35mm	11mm	300
Self Closing	Logica			65C2J6G99		35mm	11mm	300

Soft Closing	Screw In		65C1P6GD9			35mm	13mm	300
Soft Closing	Dowel		65C1R6GD9			35mm	13mm	300

Inset

Free Swing	Screw In	65C2PAP99			35mm	11mm	300
Free Swing	Dowel	65C2RAP99			35mm	11mm	300
Self Closing	Screw In	65C2PBP99			35mm	11mm	300
Self Closing	Dowel	65C2RBP99			35mm	11mm	300
Self Closing	Rapido	65C27BP99			35mm	11mm	300
Self Closing	Logica			65C2J6P99	35mm	11mm	300

Soft Closing	Dowel		65C1R6PD9		35mm	13mm	300

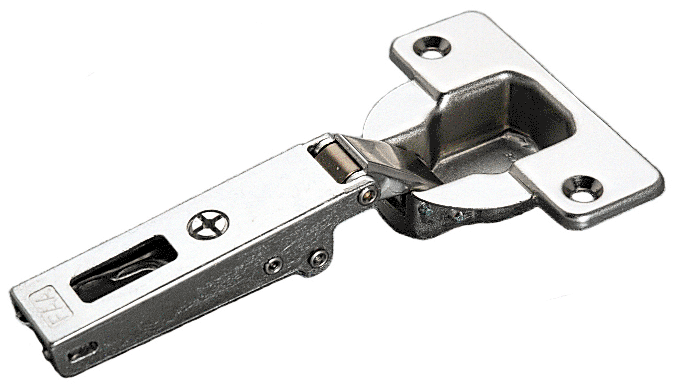

Thick Door Hinges

Full Overlay

Half Overlay

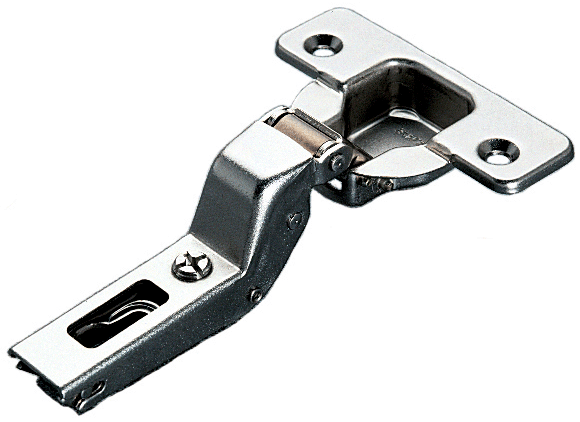

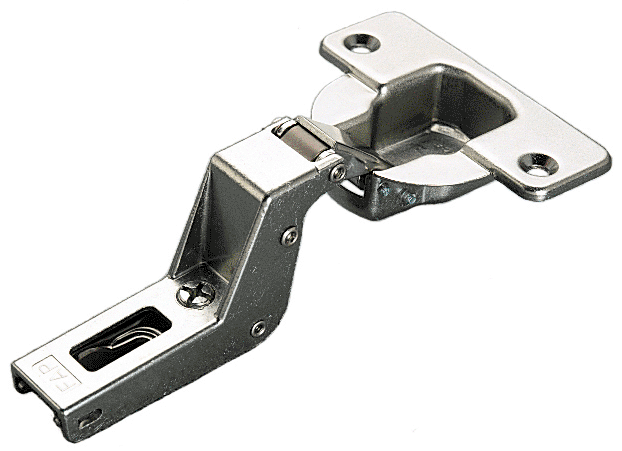

Inset

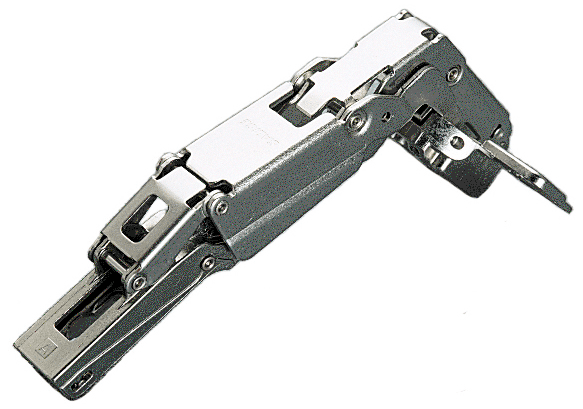

155 Degree Full Overlay

Swing	Attach	Degree	Cup Width	Cup Depth	For Door Thickness up to	Full Overlay	Half Overlay	Inset	Box Quantity
Free Swing	Screw In	94	40mm	13mm	1 1/2"	65CFA5A99	65CFA5G99	65CFA5P99	300
Self Closing	Screw In	94	40mm	13mm	1 1/2"	65CFA7A99	65CFA7G99	65CFA7P99	300
Self Closing	Dowel	155	35mm	11mm	1 1/4"	65C2RDA99			100

155 Degree "0" Protrusion, 35mm Cup, 11mm Depth

Swing	Attach	Cup Width	Cup Depth	Full Overlay	Full Overlay 5/8	Box Quantity
Self Closing	Dowel	35mm	8mm	65C2RMA99		100
Soft Closing	Dowel	35mm	8mm	65C2RMAD9	65C2RMDD9	100

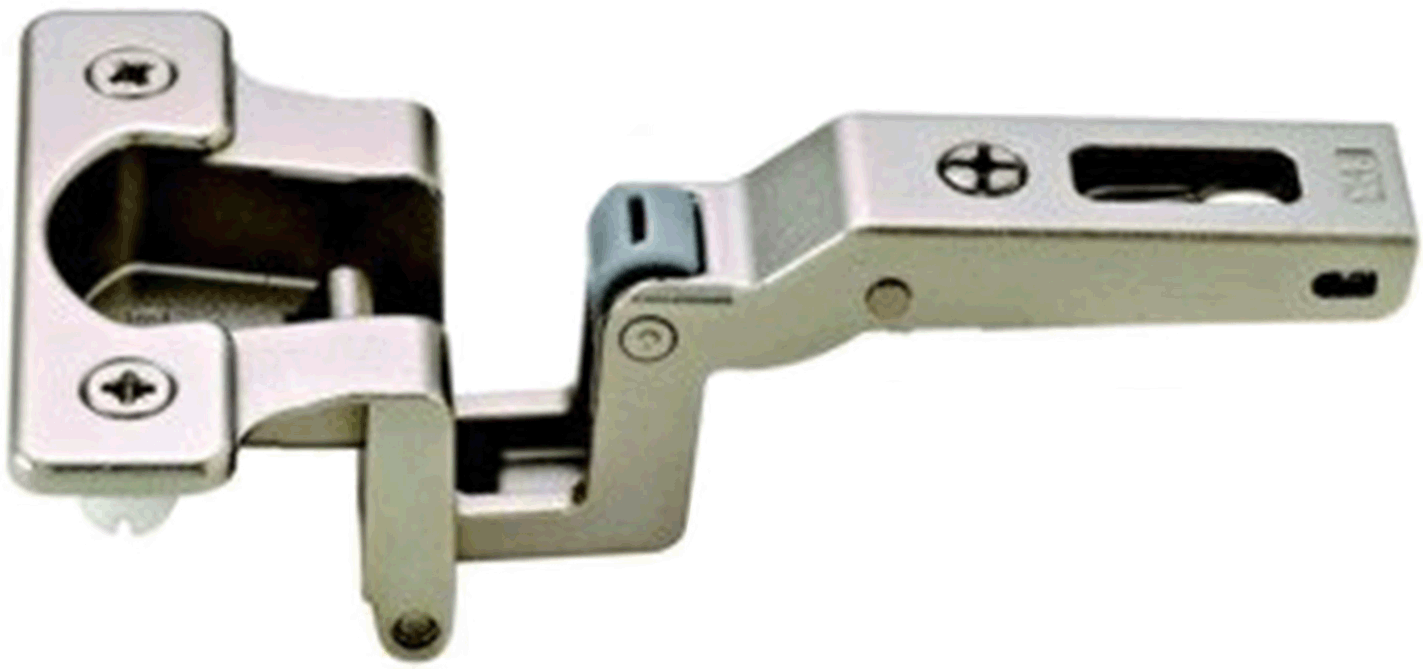

0 Protrusion Hinge

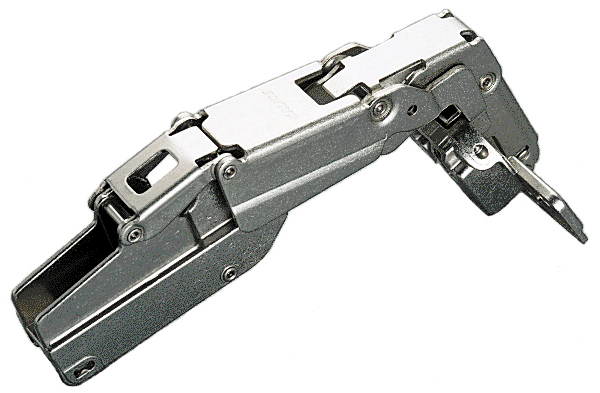

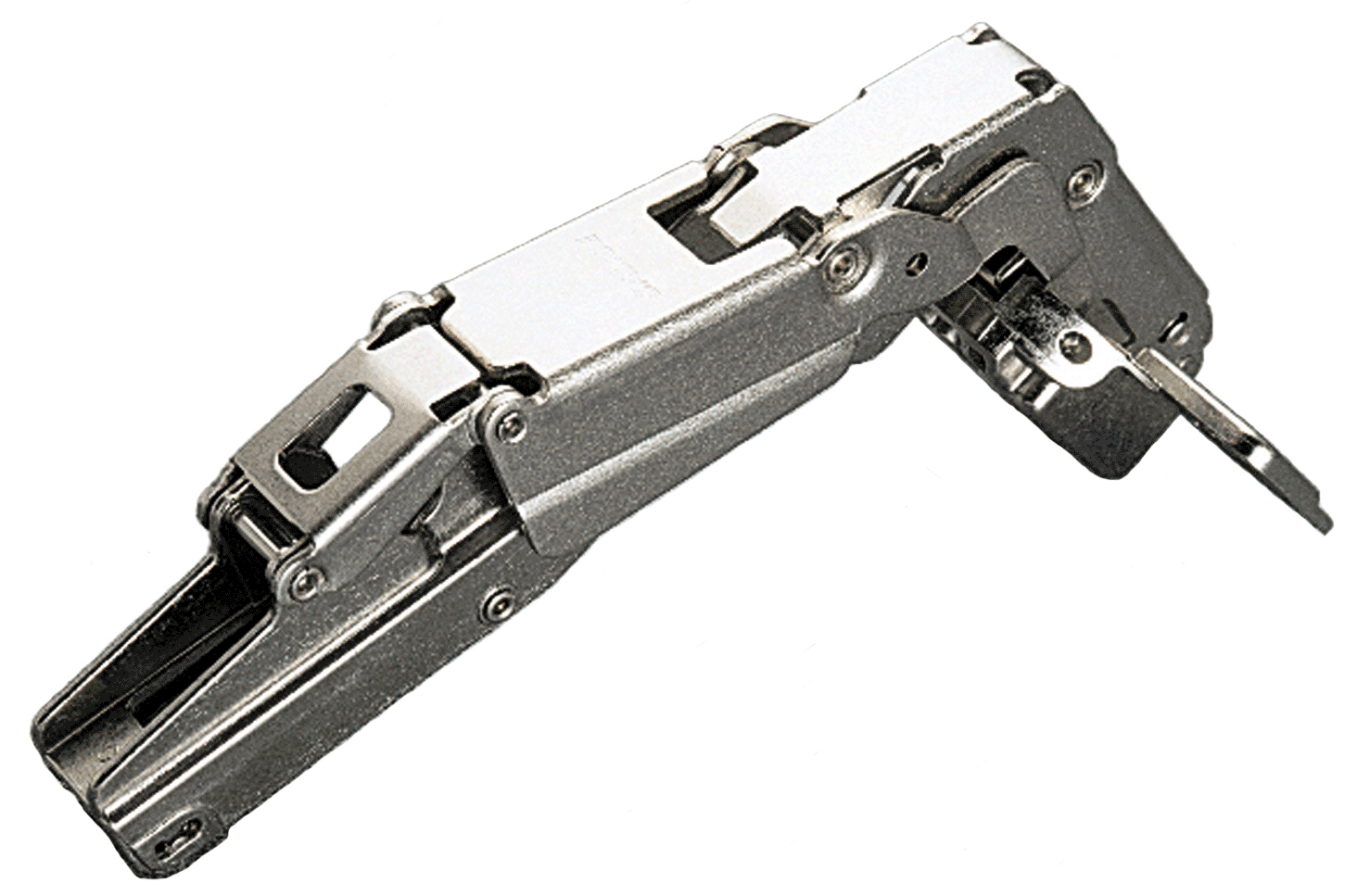

165 Degree, 35mm Cup, 11mm Depth

Full Overlay

Half Overlay

Inset

Swing	Attach	Full Overlay	Half Overlay	Inset	Box Quantity
Free Swing	Screw In	65C2PEA99		65C2PEP99	100
Free Swing	Dowel	65C2REA99			100
Self Closing	Screw In	65C2PFA99	65C2PFG99	65C2PFP99	100
Self Closing	Dowel	65C2RFA99	65C2RFG99	65C2RFP99	100
Self Closing	Rapido	65C27FA99			100

Specialty Hinges

Corner Hinge

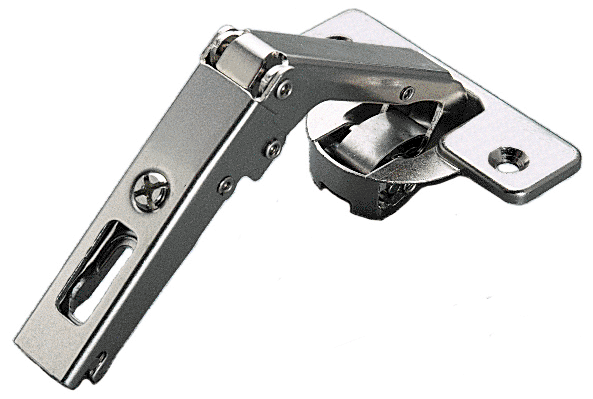

Pie Corner Hinge

Negative Angle Hinge

Blind Corner Hinge

Specialty Profile Hinges

Type	Swing	Attach	Part Number	Cup Width	Cup Depth	Box Quantity

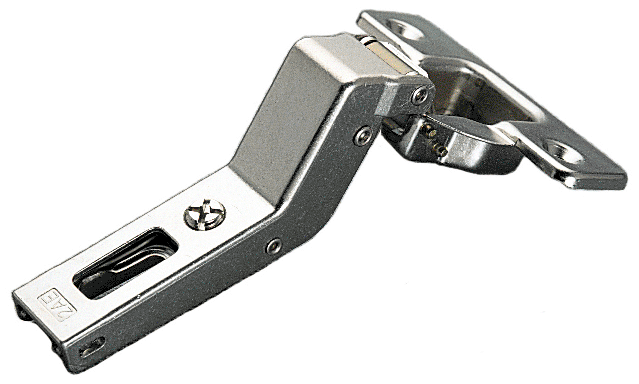

30 Degree Corner	Self Closing	Dowel	65C2RBE99*	35mm	11mm	150
30 Degree Corner Overlay	Self Closing	Dowel	65C2R7T99	35mm	11mm	150
45 Degree Corner	Self Closing	Dowel	65C2RBM99AC*	35mm	11mm	150
Pie Corner	Self Closing	Dowel	65C2RYA99	35mm	11mm	150

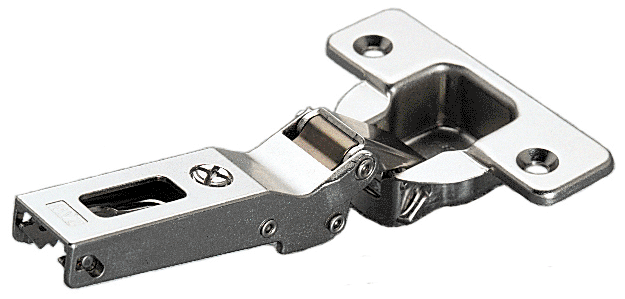

-30 Degree Negative Angle	Self Closing	Dowel	65C2RBW99*	35mm	11mm	150
-45 Degree Negative Angle	Self Closing	Dowel	65C2RBH99*	35mm	11mm	150
Blind Corner Overlay	Self Closing	Dowel	65C2R6N99AM	35mm	11mm	150

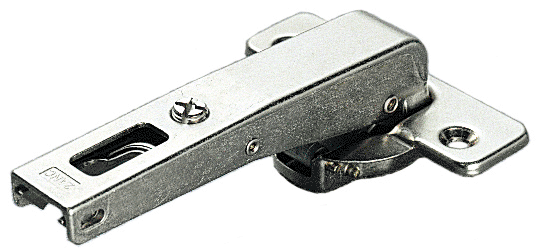

Blind Corner	Self Closing	Dowel	65C2RBN99AC*	35mm	11mm	150
Blind Corner	Self Closing	Screw In	65C2PBN99AC*	35mm	11mm	150

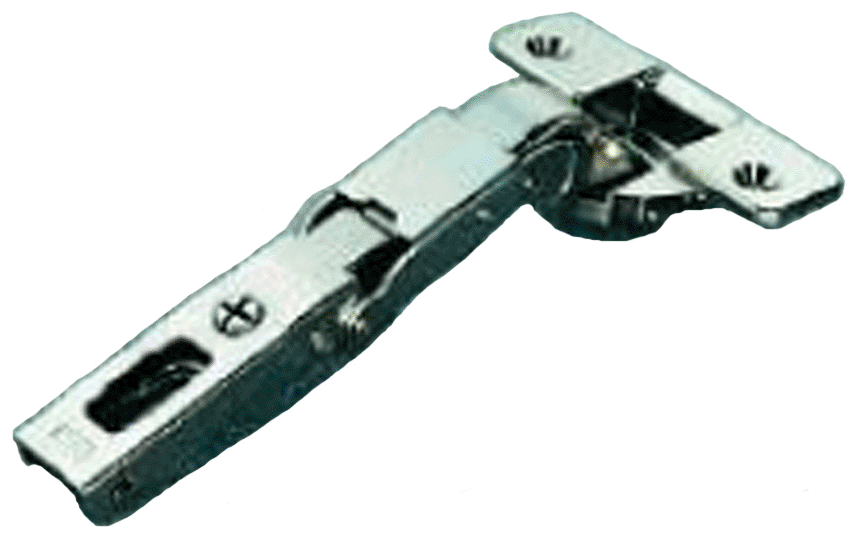

110 Degree Special Profiles	Self Closing	Screw In	65CBP2A99	35mm	11mm	150

45 Degree Corner	Soft Closing	Dowel	65C7R6ND9AC	35mm	13mm	150
Blind Corner	Soft Closing	Dowel	65C7R6MD9AC	35mm	13mm	150

*Thick Door Hinges

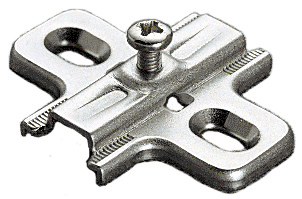

Salice 37 x 32 Mounting Plates

65B2V3H

65B2VGH

65B2R3E

65B2RGE

65BAV3E + 3L

65BAVGE + GL

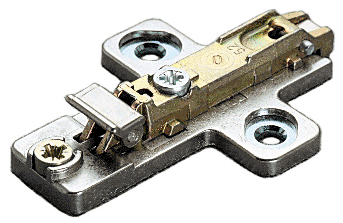

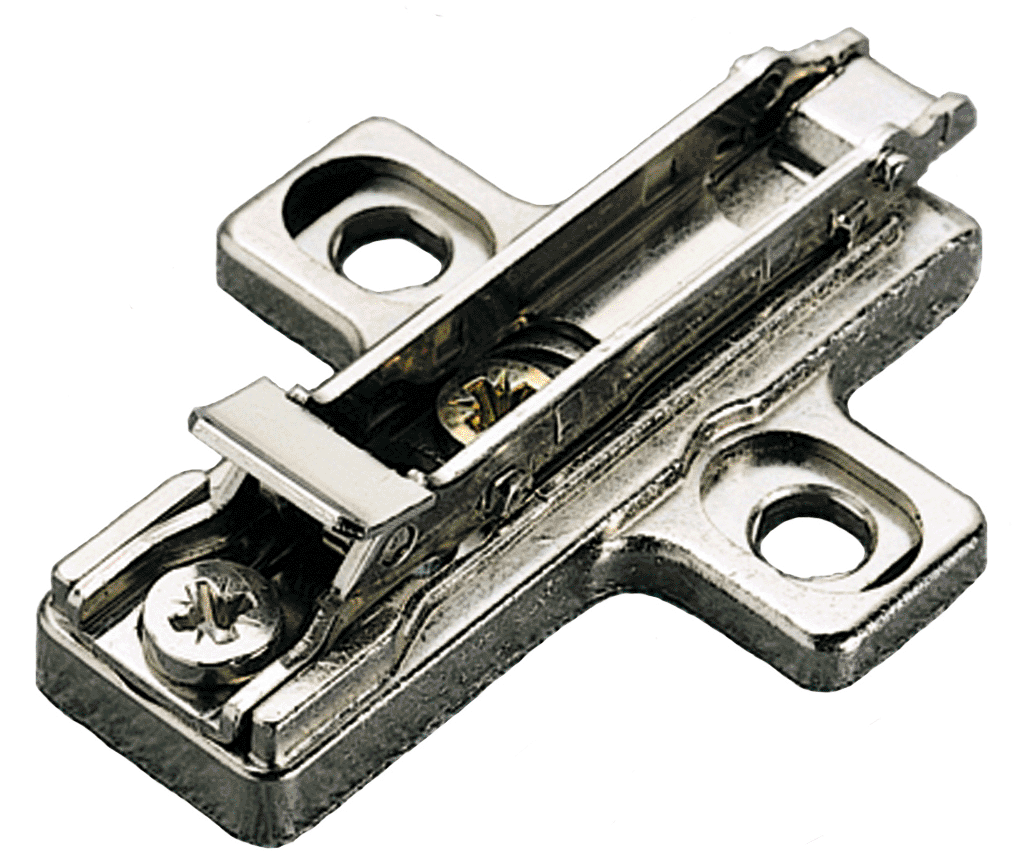

65BAR3R

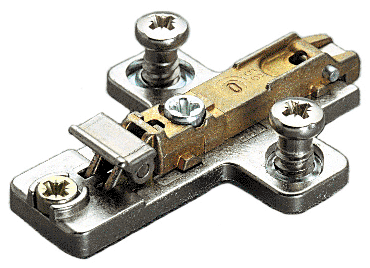

65BARGR

Attach	Type	0mm	2mm	3mm	6mm	9mm	12mm	18mm	Box Quantity
Screw In	Steel	65B2V3H09		65B2V3H39	65B2V3H69	65B2V3H99	65B2V3BC9 Die-Cast		600
Euro Screw Pre-Inserted	Steel	65B2VGH09		65B2VGH39	65B2VGH69	65B2VGH99	65B2VGBC9 Die-Cast		600
Screw In	Die-Cast Adjustable	65B2R3E09		65B2R3E39	65B2R3E69	65B2R3E99			600
Euro Screw Pre-Inserted	Die-Cast Adjustable	65B2RGE09		65B2RGE39	65B2RGE69	65B2RGE99			600
Screw In	Die-Cast	65BAV3E09		65BAV3E39	65BAV3E69	65BAV3E99		65BAV3EV9 Die-Cast	300
Screw In	Steel	65BAV3L09		65BAV3L39					300
Euro Screw Pre-Inserted	Die-Cast			65BAVGE39	65BAVGE69	65BAVGE99	65BAVGEC9	65BAVGEV9	300
Euro Screw Pre-Inserted	Steel	65BAVGL09		65BAVGL39					300
Euro Screw Pre-Inserted	Steel	65BAVKL09		65BAVKL39					300
Screw In	Die-Cast	65BAR3R09	65BAR3R29	65BAR3R39	65BAR3R69				300
Euro Screw Pre-Inserted	Die-Cast	65BARGR09	65BARGR29	65BARGR39	65BARGR69				300
Euro Screw Pre-Inserted	Steel	65BARGL09		65BARGL39					300

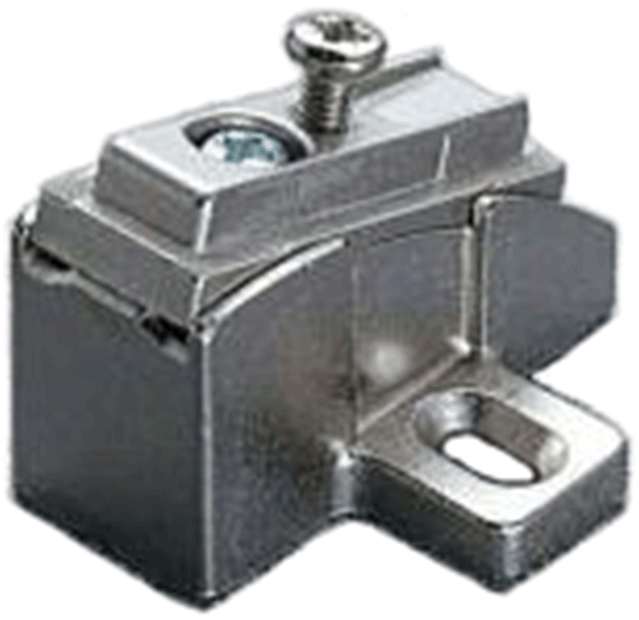

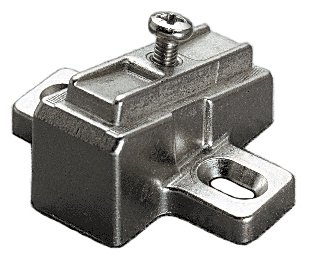

Angle Mounting Plates

Type	15 Degree	7.5 Degree	10-30 Degree	Box Quantity
Screw In	65B2V3BW9	65B2V3BW9R	65B2V3BW9S	300
Euro Pre-Inserted	65B2VGBW9	65B2VGBW9R	65B2VGBW9S	300

15 Degree

7.5 Degree

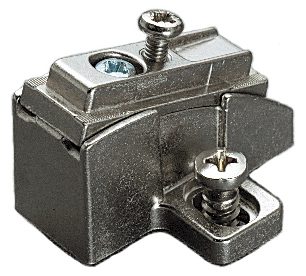

10-30 Degree

Angle Mounting Plate Adapters

Type	5 Degree	10 Degree	Box Quantity

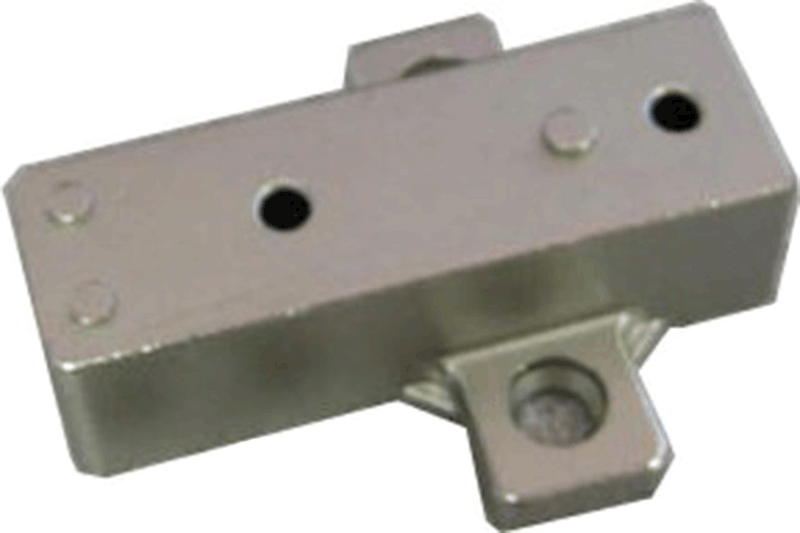

Adapter	65SAV354X9R	65SAV354X9S	50

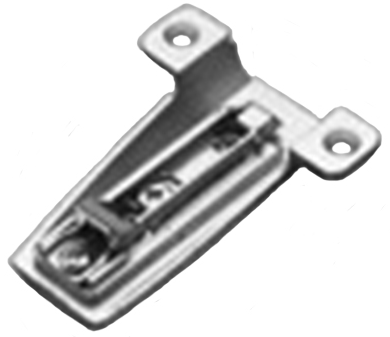

Face Frame Mounting Plates

Type	1mm	4mm	Box Quantity
Clip-On Steel	65BAU3L19	65BAU3L49	300

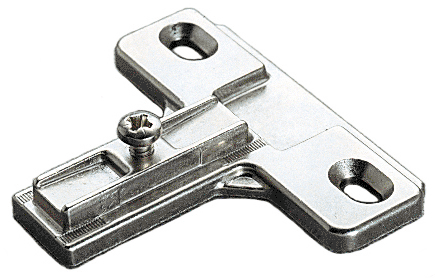

Slide-On	65B2U3B19		600

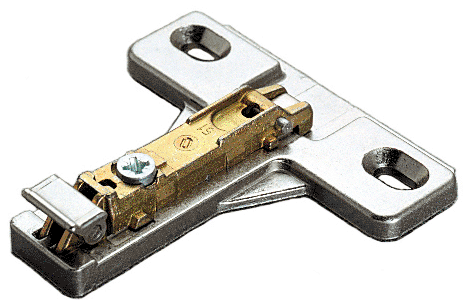

Cam Adjustable Clip-On Die-Cast	65BAU3R19	65BAU3R49	300

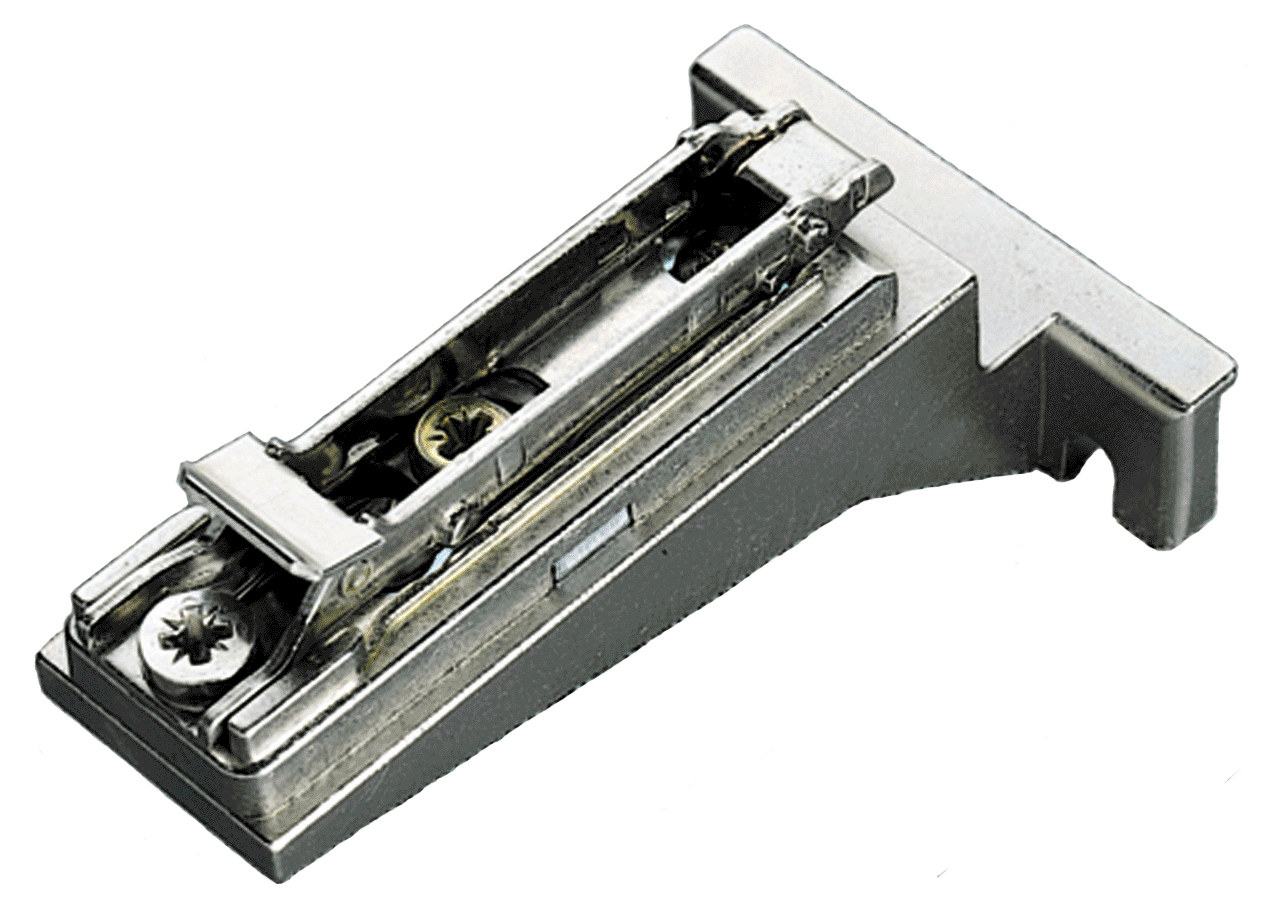

Inset Clip-On Die-Cast	65BAL3R59		300

Slide-On

Clip-On

Inset

Recommended Screws

* 6 x 5/8 Flat Head Coarse Thread.

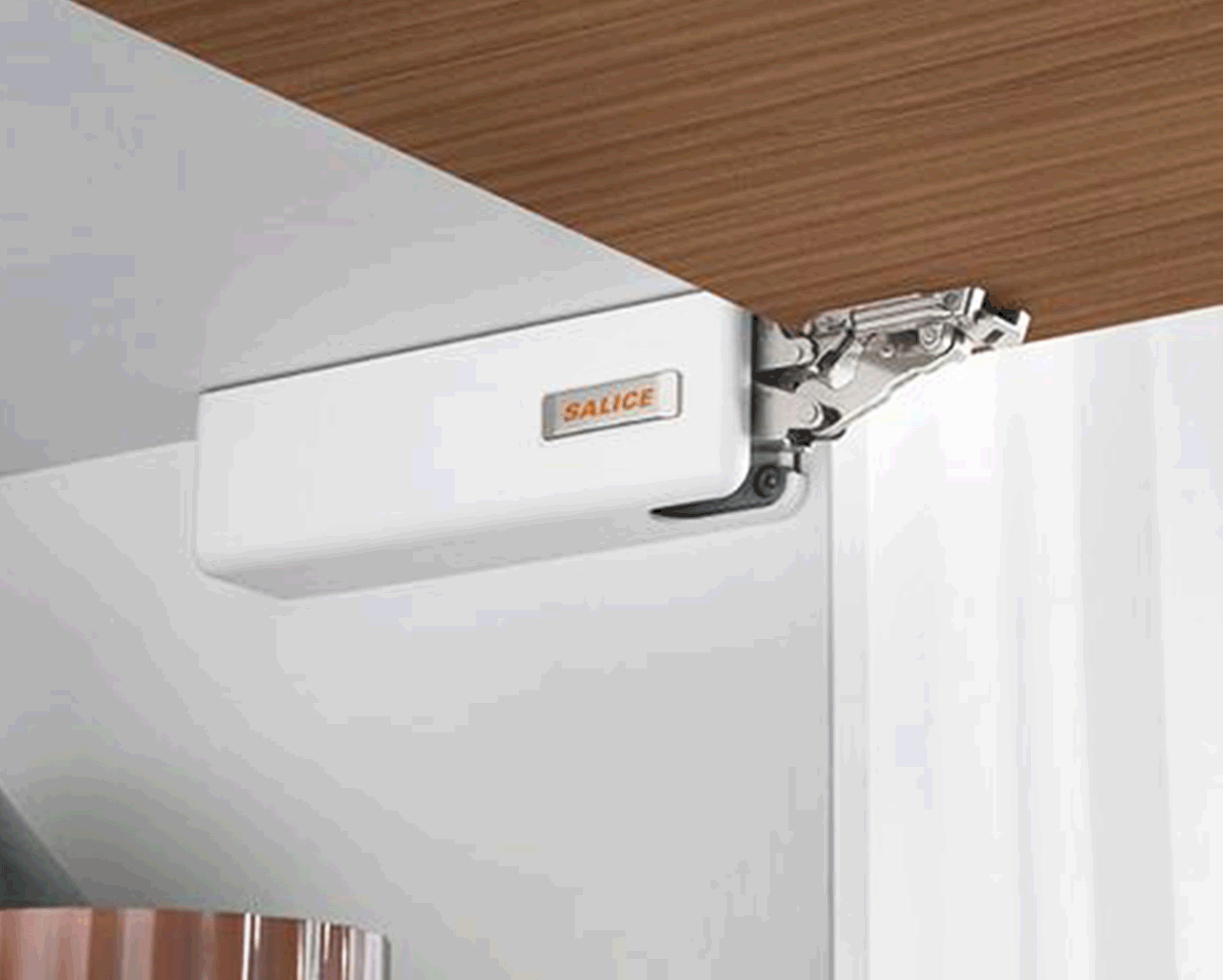

Salice Lifts

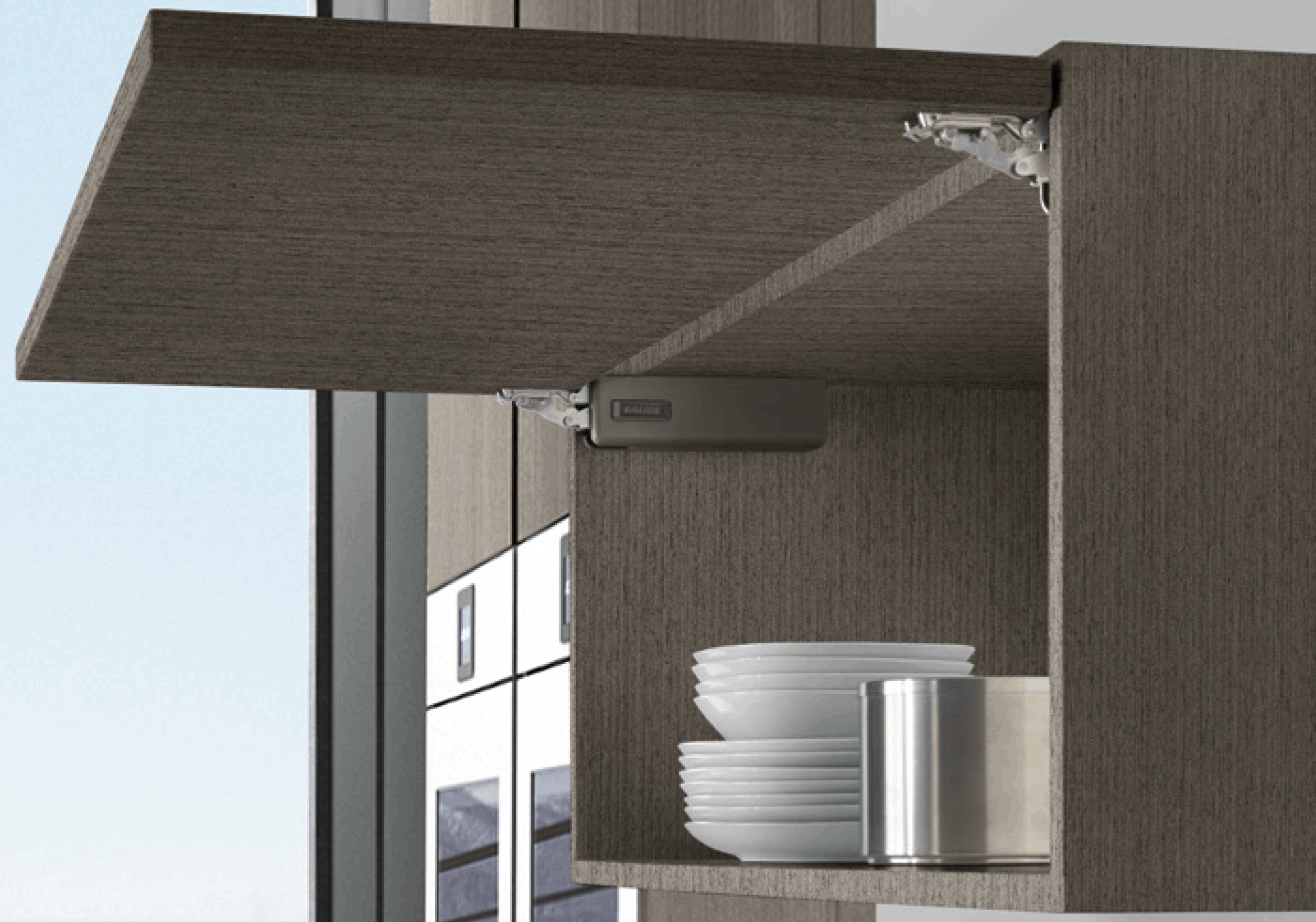

Flap Lift

Parrallel Lift

*Please contact U.S. Industrial Fasteners for more information on the Salice Lifts. There are different pistons, hinges, and plates available for the lifts depending on your application. Pistons, hinges, and plates are all sold separately.

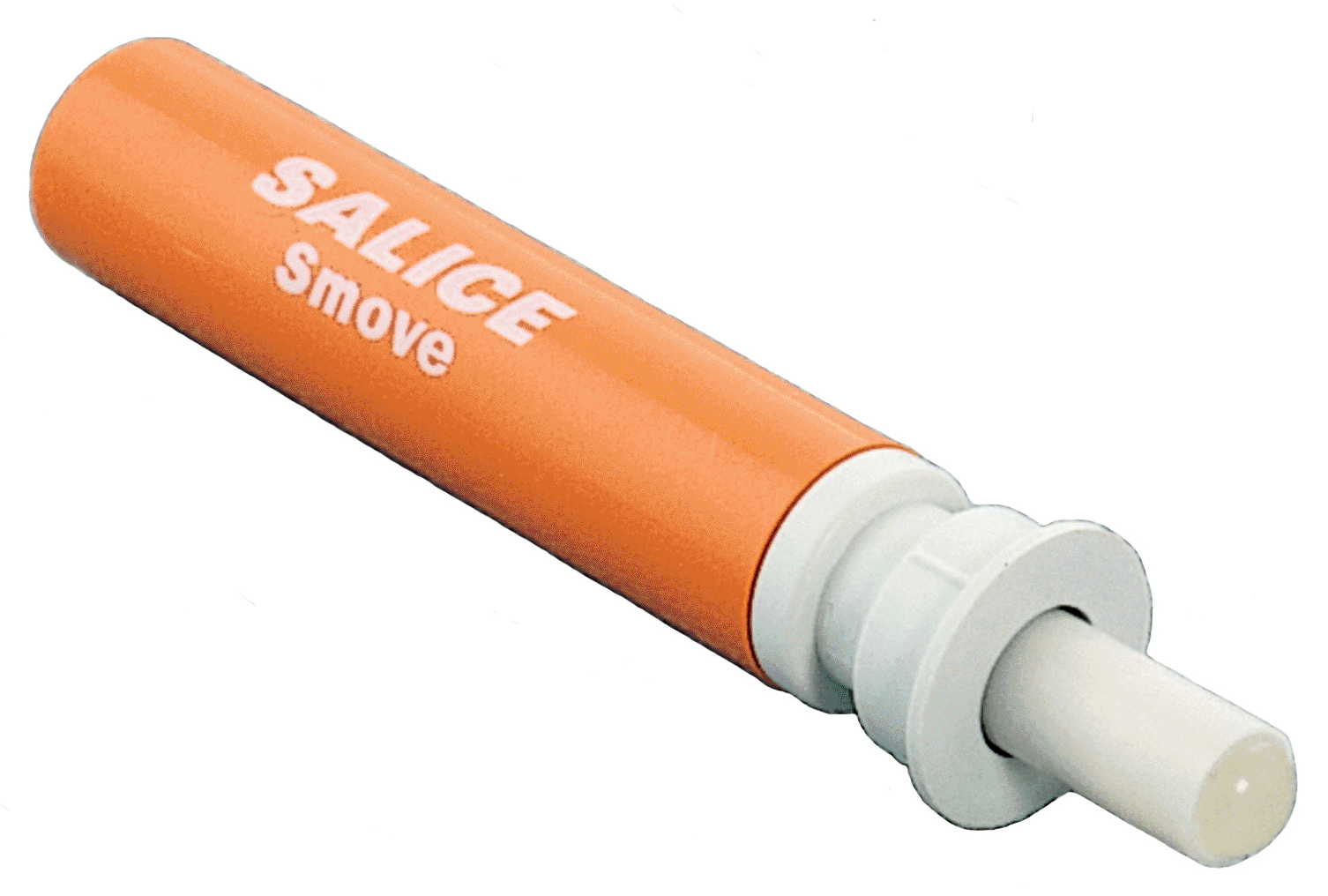

Salice Smove System

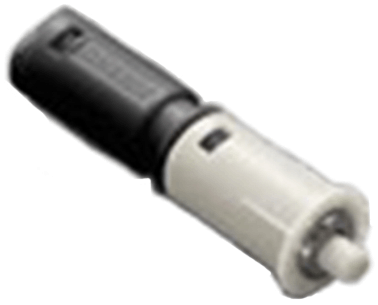

Smove

Part Number	Action Type	Color	Box Quantity
65D005SNQ	Light	Brown	250
65D005SNB	Light	Beige	250
65D006SNQ	Medium	Brown	250
65D006SNB	Medium	Beige	250
65D008SNQ	Strong	Brown	250
65D008SNB	Strong	Beige	250

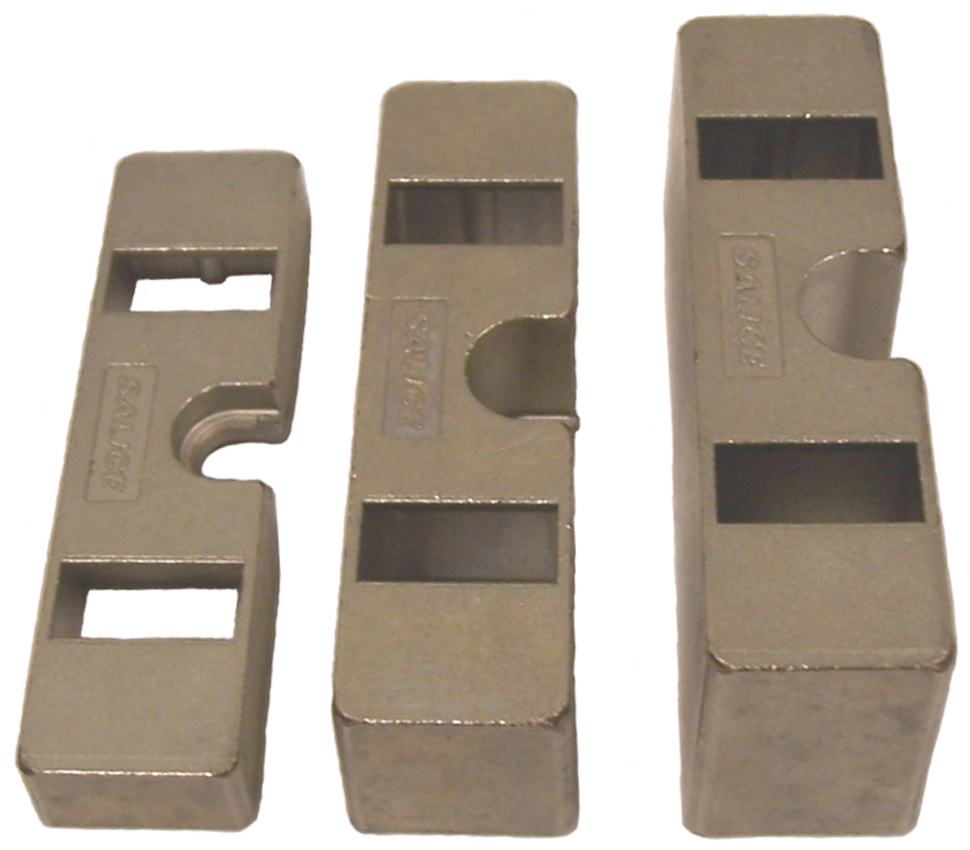

Adapters

Part Number	Applications For	Color	Box Quantity
65D065SNQR	Inset doors, drawers, and special	Brown	500

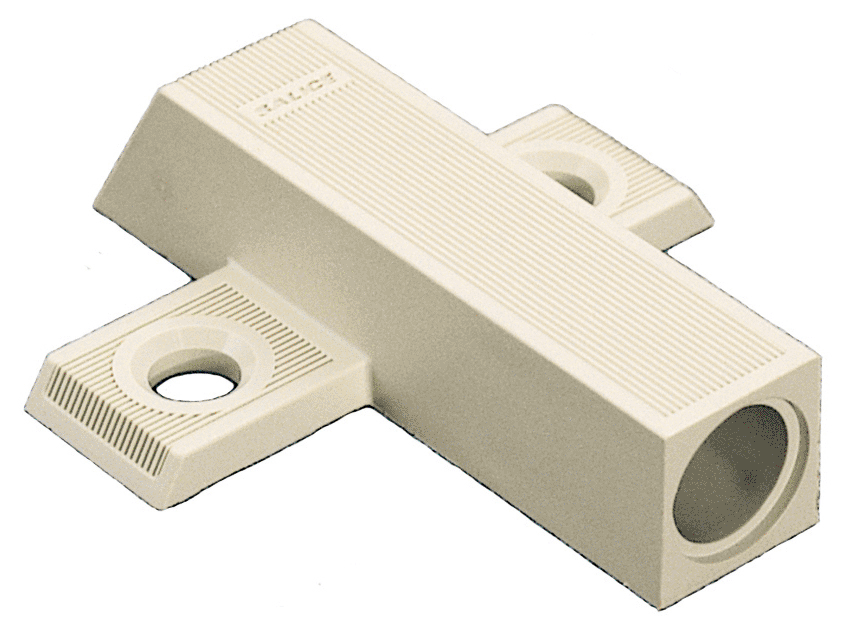

65D065SNBR	Inset doors, drawers and special	Beige	500
65D066SNQN	Face Frame	Brown	250

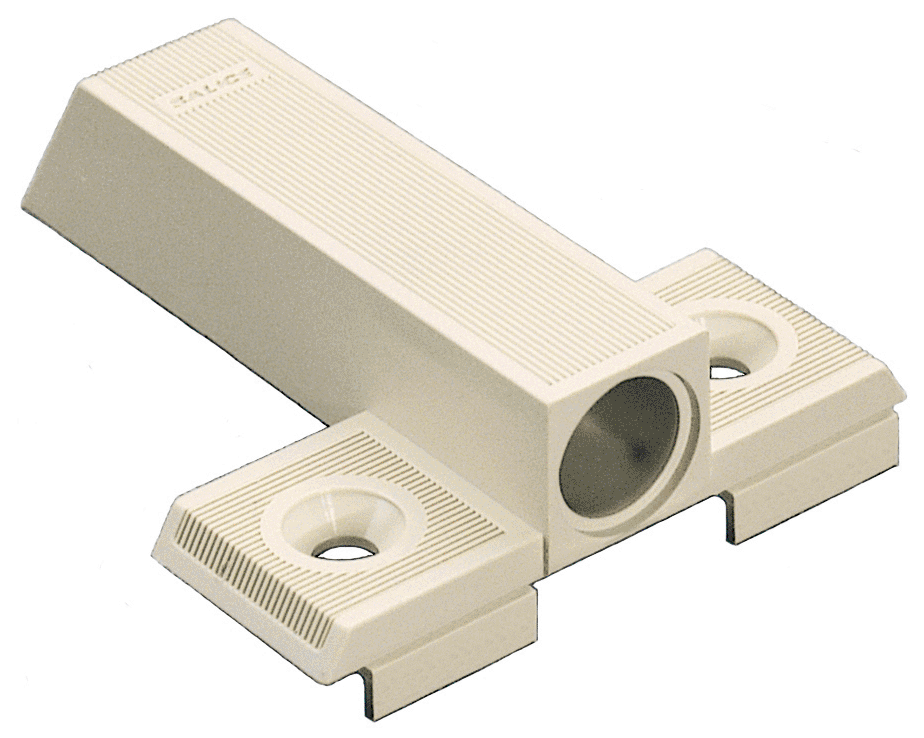

65D066SNBN	Face Frame	Beige	250
65D067SNQN	S Series Face Frame	Brown	250
65D067SNBN	S Series Face Frame	Beige	250

D065

D066

D067

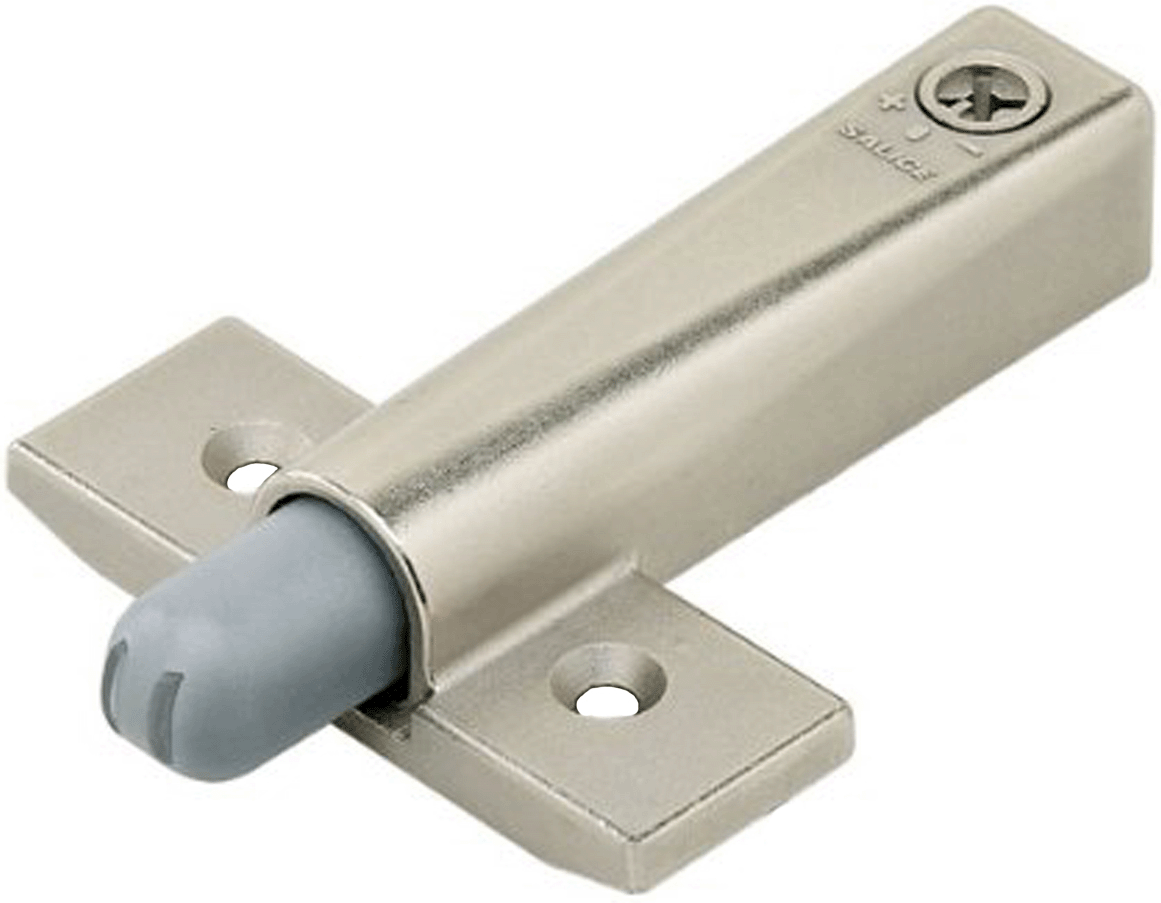

Universal Smove for Face Frame

Universal Part Number: 65D0LHSNG

Smove Adapters

Part Number	Type	For	Box Quantity
65DARX09	Adapter	Full Overlay Hinges	300
65DARX59	Adapter	1/2" Overlay Hinges	300
65DARX99	Adapter	Half Overlay Hinges	300
65DARXP9	Adapter	Inset Hinges	150
65D0S8SNG	Clip On Smove	Adapters	300

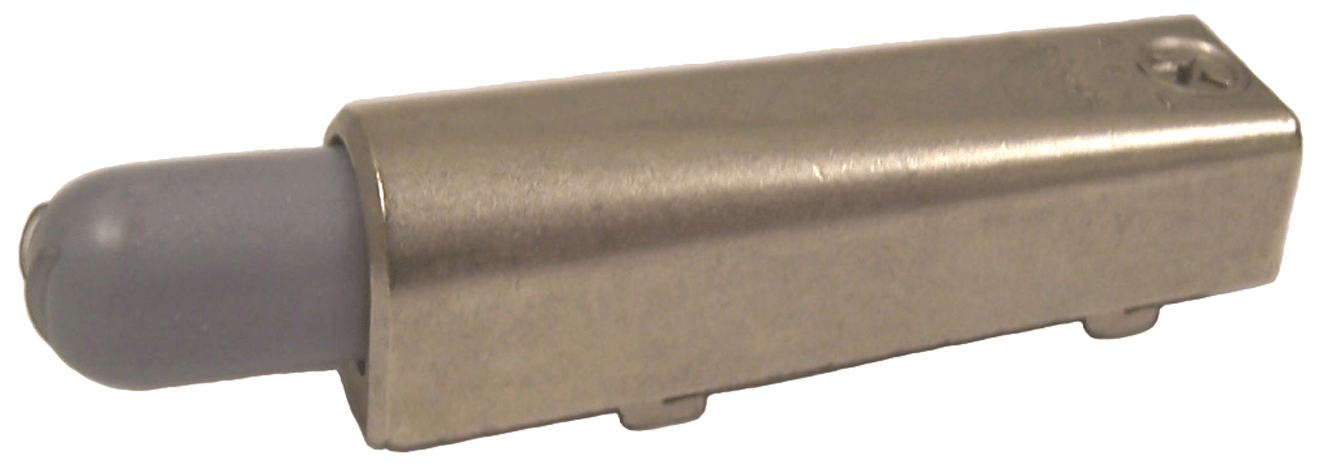

Clip On Smove

Choose the assembly adapter to work with the Clip On Smove for your specific application.

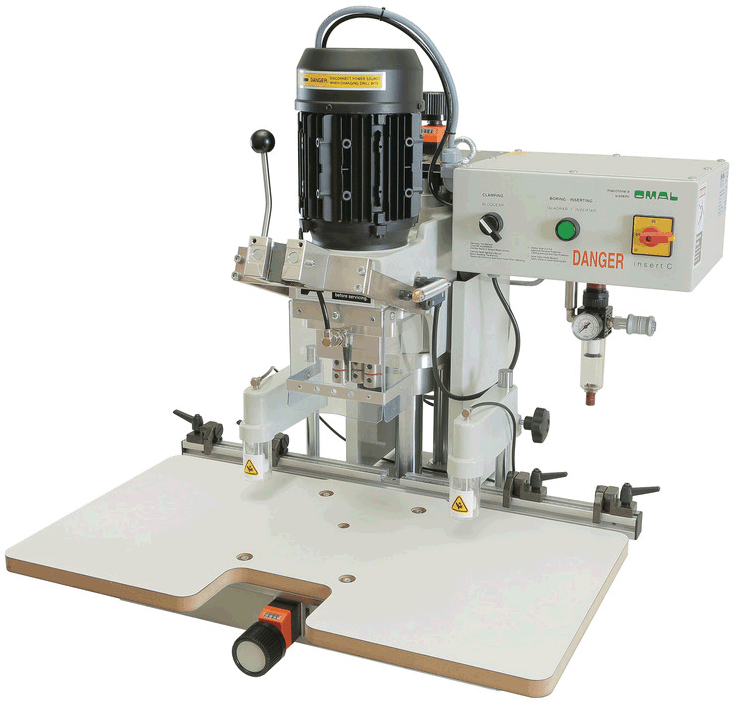

Salice Hinge Boring and Insertion Machine

Call us if you are looking for a new hinge machine and talk to us about a customized purchase program based either on hinge volume or direct monthly payment program. We know the machine will work for you, but the way you pay for it must work also.

Available Models:

6502TOM1C216 220v/ 1 Phase Pneumatic
6501TOM1C236 220v/ 3 Phase Pneumatic
6504 (not pictured) 110v/ Single Phase Manual
6504TOMINI 110v/ 1 Phase/ 60 Mini Pneumatic
6503TOM1C110 110v/ 1 Phase Pneumatic

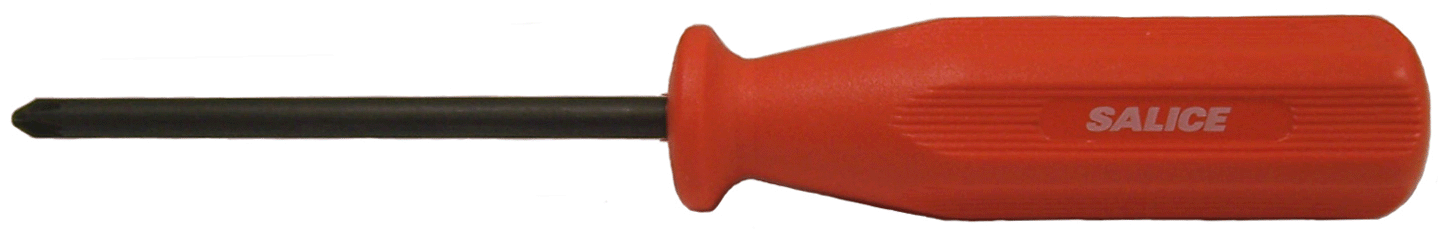

Pozi Screwdriver

Reduction Clip

Reduction clip reduces a 94 degree opening to a 86 degree opening.
Part Number: 65S2A637XF
Packed 200 per box

Part Number: 6509
Packed 2 per box.

Installation Information for reduction clip

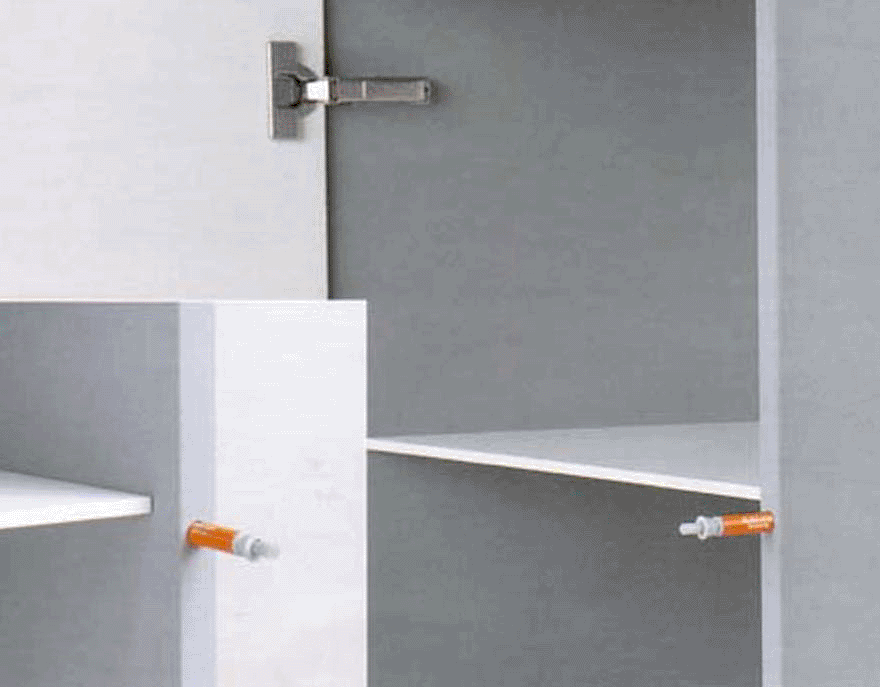

Technical information and installation of the Smove system.

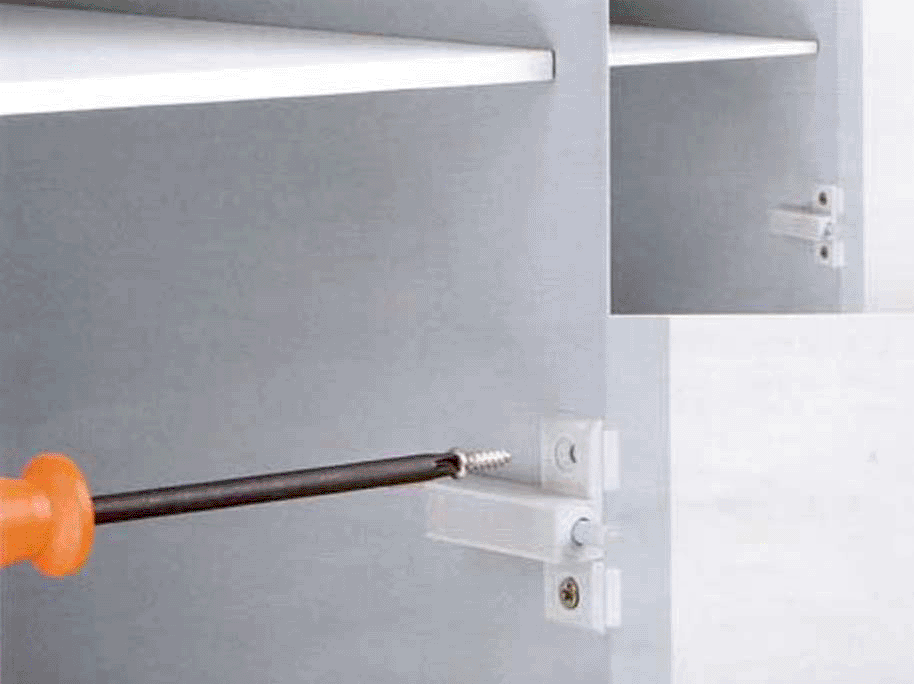

Smove with adapter.

Smove D005SN can be installed by using adapters to be screwed onto the cabinet side. It is suggested for doors from 18" to 24" wide. For wood-based and alum-framed doors over 63" high, it may be necessary to use 2 Smoves, one to be positioned in the upper part and the second in the lower part of the cabinet side opposite the hinges.

Smove D006SN and D008SN can be installed by using adapters to be screwed under the top or on the base panel of the cabinet. Smove D008SN must be positioned at a distance of 1 1/16" from the cabinet side. For wood-based and alum-framed doors over 63" high, it may be necessary to use 2 Smoves, one to be positioned under the top and the second on the base panel of the cabinet.

Smove to be recessed.

Drill a hole 25/64" (10mm) and minimum 2" (50mm) depth in the cabinet.

For the D005SN insert the Smove into the cabinet side opposite the hinges. For optimum performance, we suggest to position the Smove D005SN in the center side of the panel. It is suggested for doors from 18"-24" wide. For wood-based and alum-framed doors over 63" high, it may be necessary to use 2 Smoves, one to be inserted into the upper part and the second into the lower part of the cabinet side opposite the hinges.

For the D006SN insert the Smove at the center of the top or the base panel of the cabinet. Before assembly, we suggest the use of our D071SNO Test Block for optimum performance of the D006SN and to select the best operating position. For wood-based and alum-framed doors over 63" high, it may be necessary to use 2 Smoves, one to be inserted into the top and the second into the base panel of the cabinet.

For the D008SN insert the Smove into the top or the base panel of the cabinet on the hinged side. A drilling distance of 1 1/16" from the cabinet side is suggested. For doors over 63" high, it may be necessary to use 2 Smoves, one to be inserted into the top and the second into the base panel of the cabinet.
