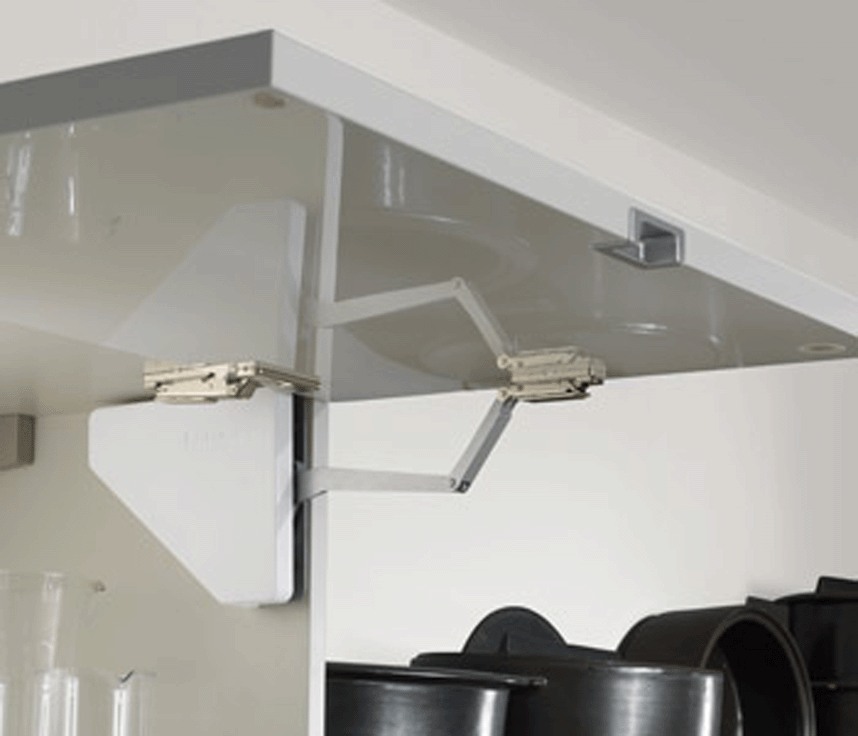

Salice Lift Kit
Right Arm Lift Kit
D00FSNG for doors up to 13.23 lb weight or up to 360mm height. D00LSNG for doors over 13.23 lb weight or over 360mm height.

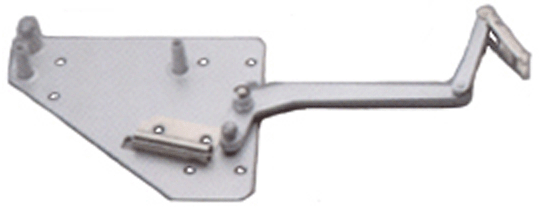

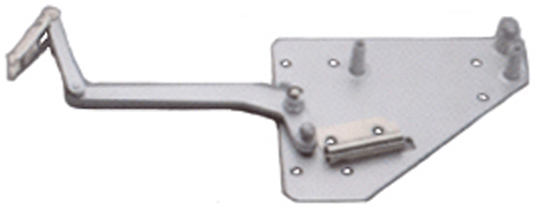

Lifting System - Right Side

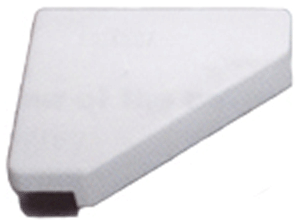

Grey Cover
 65BAP3R09
Mounting plate for bracket
Piston
Kit Includes:
1 - Lifting system - right side
1 - Grey cover
1 - Piston
1 - Mounting plate for bracket
1 - Smove D00FSNG
1 - Smove D00LSNG
7 - 8 x 5/8 mounting screws
Installation instructions
Part Number
Description
65FRSKTX15SNGDX2 Right Arm Lift Kit Piston 150
65FRSKTX20SNGDX2 Right Arm Lift Kit Piston 200
65FRSKTX25SNGDX2 Right Arm Lift Kit Piston 250
65FRSKTX30SNGDX2 Right Arm Lift Kit Piston 300
65FRSKTK35SNGDX2 Right Arm Lift Kit Piston 350
65FRSKTX40SNGDX2 Right Arm Lift Kit Piston 400
65FRSKTX45SNGDX2 Right Arm Lift Kit Piston 450
Left Arm Lift Kit
D00FSNG for doors up to 13.23 lb weight or up to 360mm height. D00LSNG for doors over 13.23 lb weight or over 360mm height.
Lifting System - Left Side
Grey Cover
 65BAP3R09
Mounting plate for bracket
Piston
Kit Includes:
1 - Lifting system - left side
1 - Grey cover
1 - Piston
1 - Mounting plate for bracket
1 - Smove D00FSNG
1 - Smove D00LSNG
7 - 8 x 5/8 mounting screws
Installation instructions
Part Number
Description
65FRSKTX15SNGSX2 Left Arm Lift Kit Piston 150
65FRSKTX20SNGSX2 Left Arm Lift Kit Piston 200
65FRSKTX25SNGSX2 Left Arm Lift Kit Piston 250
65FRSKTX30SNGSX2 Left Arm Lift Kit Piston 300
65FRSKTX35SNGSX2 Left Arm Lift Kit Piston 350
65FRSKTX40SNGSX2 Left Arm Lift Kit Piston 400
65FRSKTX45SNGSX2 Left Arm Lift Kit Piston 450
*Piston Size is determined by Door Weight and Size*
**Hinges and Plates for Doors Sold Separately**
Salice Smove System

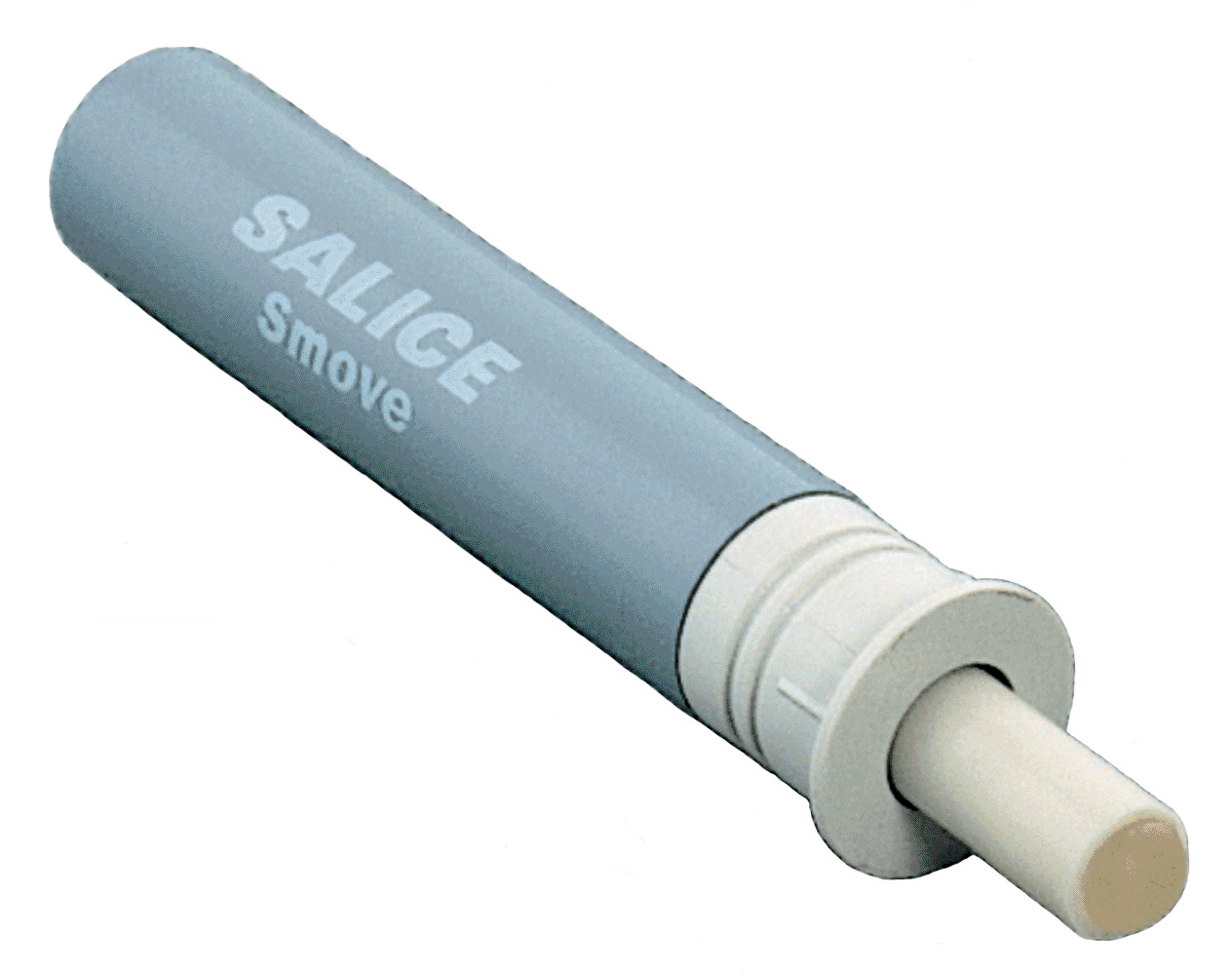

Smove - D005SN

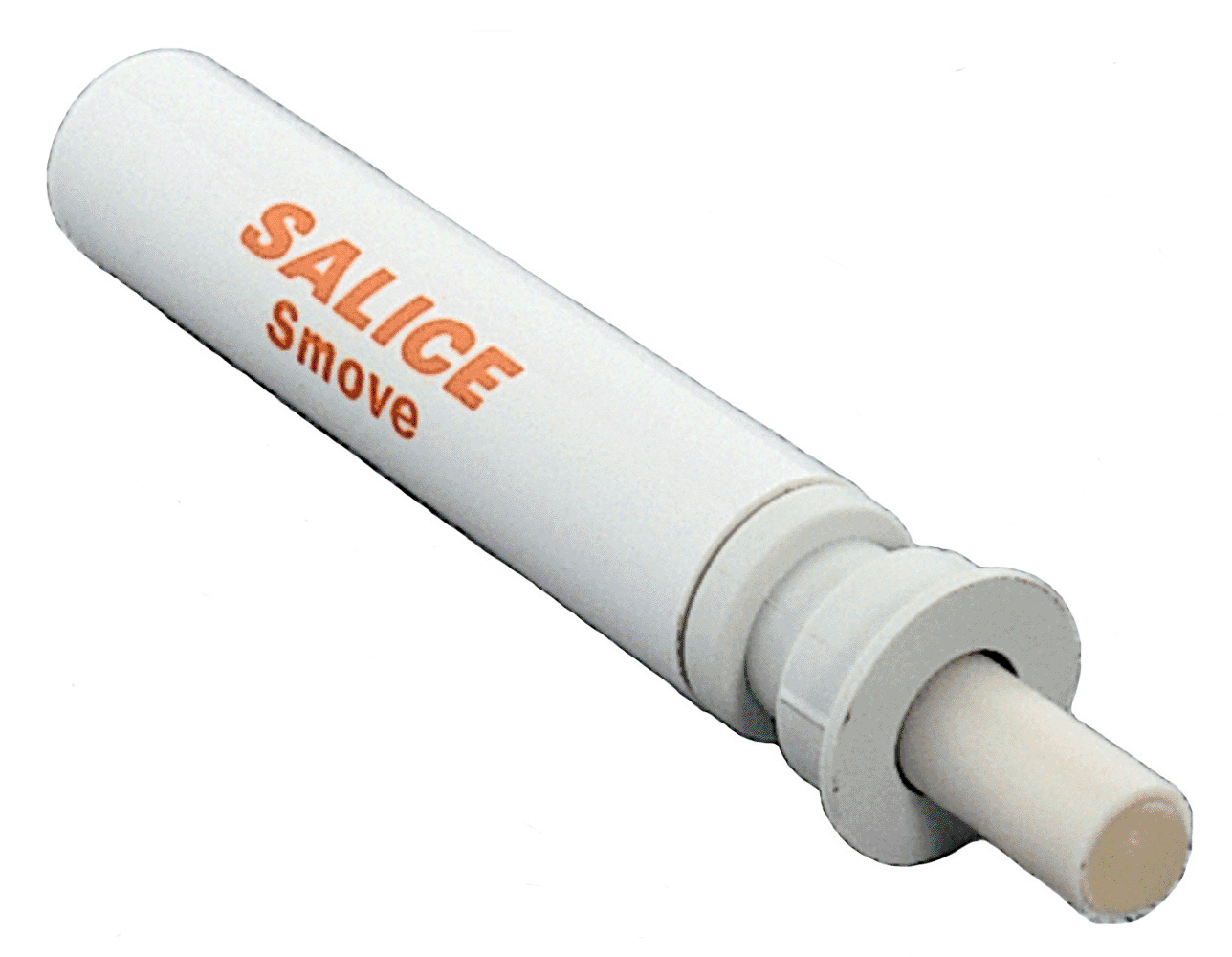

Smove - D006SN
Smove - D008SN
Part Number
Color
Box
Quantity
65D005SNQ
Brown
250
65D005SNB
Beige
250
Part Number
Color
Box
Quantity
65D006SNQ
Brown
250
65D006SNB
Beige
250
Part Number
Color
Box
Quantity
65D008SNQ
Brown
250
65D008SNB
Beige
250
Adapter - D065SN for inset doors, drawers, and special applications
Adapter - D066SN for face frame applications.
Adapter - D067SN for S series face frame applications.
Part Number
Color
Box
Quantity
65D065SNQR
Brown
500
65D065SNBR
Beige
500
Part Number
Color
Box
Quantity
65D066SNQN
Brown
250
65D066SNBN
Beige
250
Part Number
Color
Box
Quantity
65D067SNQN
Brown
250
65D067SNBN
Beige
250

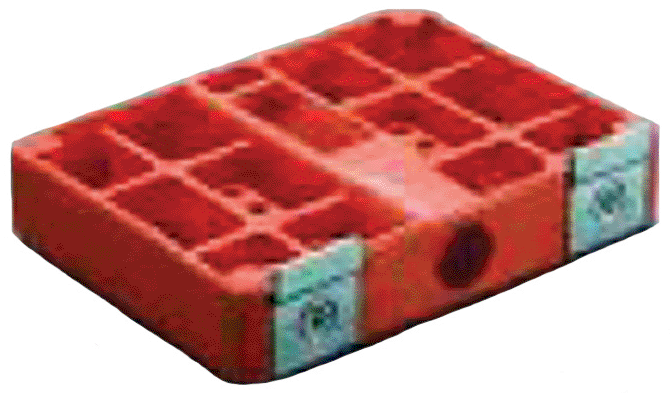

Assembly Test Block
D071SNO
Part Number: 65D071SNO

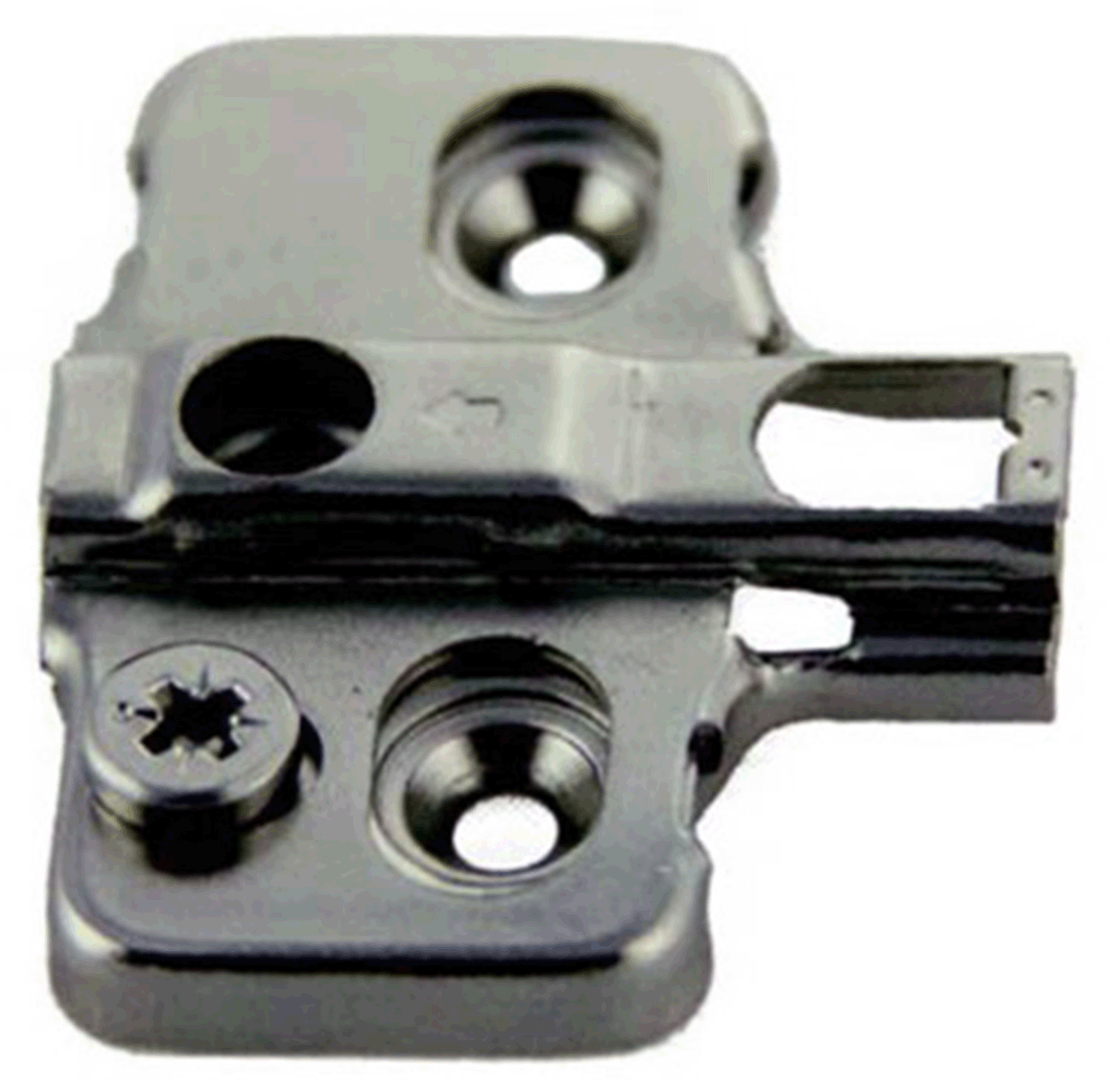

Smove for Face Frame
Smove Adapters
Right Hand Part Number: 65D0UR0G
Clip On Smove
Left Hand Part Number: 65D0UL0G
Choose the assembly adapter to work with the Clip On Smove for your specific application.
Pozi Screwdriver
Part Number
Type
For
Box Quantity
65DARX09
Adapter
Full Overlay Hinges
300
65DARX59
Adapter
1/2" Overlay Hinges
300
65DARX99
Adapter
Half Overlay Hinges
300
65DARXP9
Adapter
Inset Hinges
150
65D0S8SNG
Clip On Smove
Adapters
300
Part Number: 6509
Packed 2 per box.
Technical information and installation of the Smove system.
Smove with adapter.
Smove D005SN can be installed by using adapters to be screwed onto the cabinet side. It is suggested for doors from 18" to 24" wide. For wood-based and alum-framed doors over 63" high, it may be necessary to use 2 Smoves, one to be positioned in the upper part and the second in the lower part of the cabinet side opposite the hinges.

Smove D006SN and D008SN can be installed by using adapters to be screwed under the top or on the base panel of the cabinet. Smove D008SN must be positioned at a distance of 1 1/16" from the cabinet side. For wood-based and alum-framed doors over 63" high, it may be necessary to use 2 Smoves, one to be positioned under the top and the second on the base panel of the cabinet.
Smove to be recessed.
Drill a hole 25/64" (10mm) and minimum 2" (50mm) depth in the cabinet.

For the D005SN insert the Smove into the cabinet side opposite the hinges. For optimum performance, we suggest to position the Smove D005SN in the center side of the panel. It is suggested for doors from 18"-24" wide. For wood-based and alum-framed doors over 63" high, it may be necessary to use 2 Smoves, one to be inserted into the upper part and the second into the lower part of the cabinet side opposite the hinges.

For the D006SN insert the Smove at the center of the top or the base panel of the cabinet. Before assembly, we suggest the use of our D071SNO Test Block for optimum performance of the D006SN and to select the best operating position. For wood-based and alum-framed doors over 63" high, it may be necessary to use 2 Smoves, one to be inserted into the top and the second into the base panel of the cabinet.

For the D008SN insert the Smove into the top or the base panel of the cabinet on the hinged side. A drilling distance of 1 1/16" from the cabinet side is suggested. For doors over 63" high, it may be necessary to use 2 Smoves, one to be inserted into the top and the second into the base panel of the cabinet.
