European Hinges

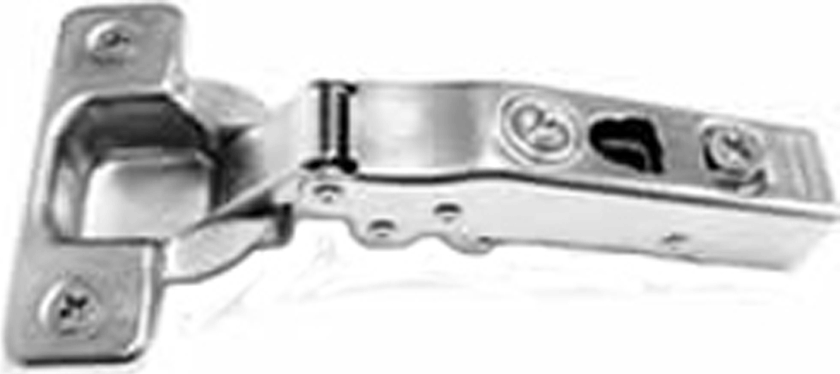

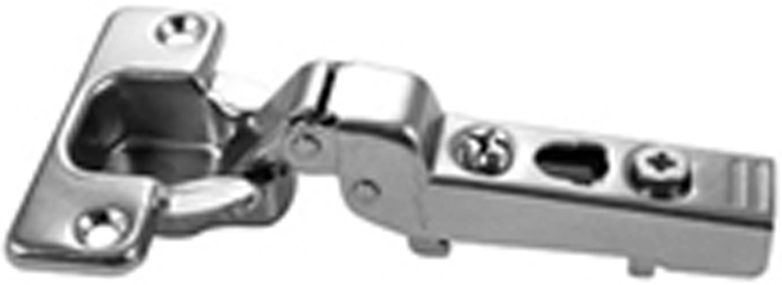

Grass 110 Degree Hinges - 35mm Cup, 45mm Hole Pattern
3-dimentional adjustment.
For face frame and frameless cabinets.
Soft close compatable, see below.
All metal hinge, nickel plated.
|
Part Number
|
Swing
|
Degree
|
Attach
|
Type
|
Cup
|
Box Quantity
|
| GR146622350015 |
Self Closing
|
110
|
Twin Tooless
|
Full Overlay
|
35mm Cup 11.5mm Cup Depth
|
125
|
| GR148322540015 |
Self Closing
|
110
|
B45 Dowel
|
Full Overlay
|
35mm Cup 11mm Cup Depth
|
125
|
| GR146622500815 |
Self Closing
|
110
|
Twin Tooless
|
1/2 Overlay
|
35mm Cup 11.5mm Cup Depth
|
125
|
| GR148322540815 |
Self Closing
|
110
|
B45 Dowel
|
1/2 Overlay
|
35mm Cup 11mm Cup Depth
|
125
|
| GR146604501515 |
Self Closing
|
100
|
Twin Tooless
|
Inset
|
35jmm Cup 11.5mm Cup Depth
|
125
|
Grass 125 Degree - 35mm Cup, 45mm Hole Pattern
3-dimentional adjustment.
For face frame and frameless cabinets.
Soft close compatible, see below.
All metal hinge, nickel plated.
|
Part Number
|
Swing
|
Degree
|
Attach
|
Type
|
Cup
|
Box Quantity
|
| GR146629500015 |
Self Closing
|
125
|
Twin Tooless
|
Full Overlay
|
35mm Cup 12mm Cup Depth
|
125
|
| GR148329320015 |
Self Closing
|
125
|
B45 Dowel
|
Full Overlay
|
35mm Cup 11.8mm Cup Depth
|
125
|

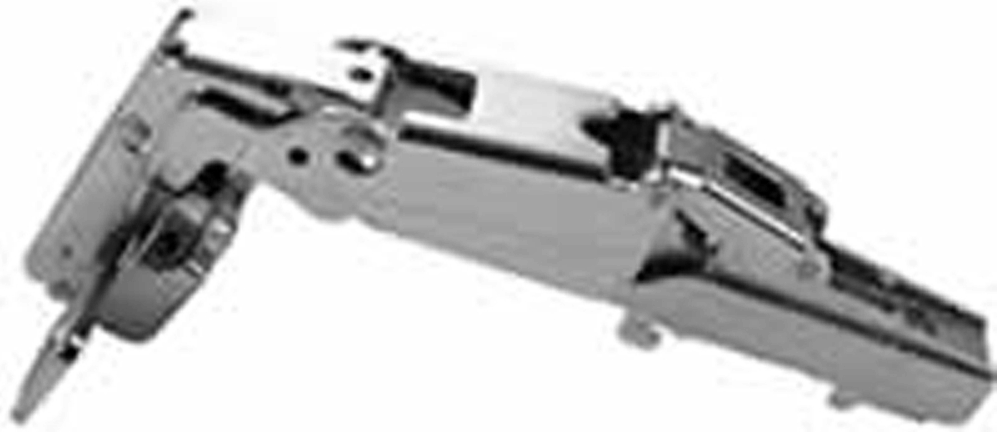

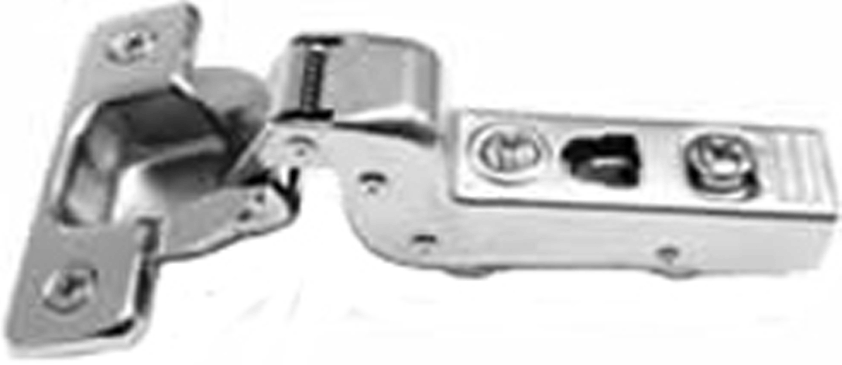

Grass 170 Degree Hinges - 35mm Cup, 45mm Hole Pattern
For face frame and frameless cabinets.
Solft close compatable, see below.
Opening angle can be restricted to 120 degree.
100% finger protection.
All metal hinge, zinc diecast, nickel plated.
|
Part Number
|
Swing
|
Degree
|
Attach
|
Type
|
Cup
|
Box Quantity
|
| GR146765650015 |
Self Closing
|
170
|
Twin Tooless
|
Full Overlay
|
35mm Cup 11mm Cup Depth
|
50
|
| GR148765540015 |
Self Closing
|
170
|
B45 Dowel
|
Full Overlay
|
35mm Cup 11mm Cup Depth
|
50
|
Grass Nexis Hinges - 35mm Cup, 42mm Grass Hole Pattern
Cam height and depth adjustment with select base plates.
Stamped steel arm and cup with bright nickel finish.
Soft close compatable, see below.
|
Part Number
|
Swing
|
Degree
|
Attach
|
Type
|
Cup
|
Box Quantity
|
| GR6803014 |
Self Closing
|
110
|
G42 Dowel
|
Full Overlay
|
35mm Cup 11mm Cup Depth
|
125
|
| GR6803314 |
Self Closing
|
125
|
G42 Dowel
|
Full Overlay
|
35mm Cup 12mm Cup Depth
|
125
|
| GR6804208 |
Self Closing
|
170
|
G42 Dowel
|
Full Overlay
|
35mm Cup 11mm Cup Depth
|
50
|

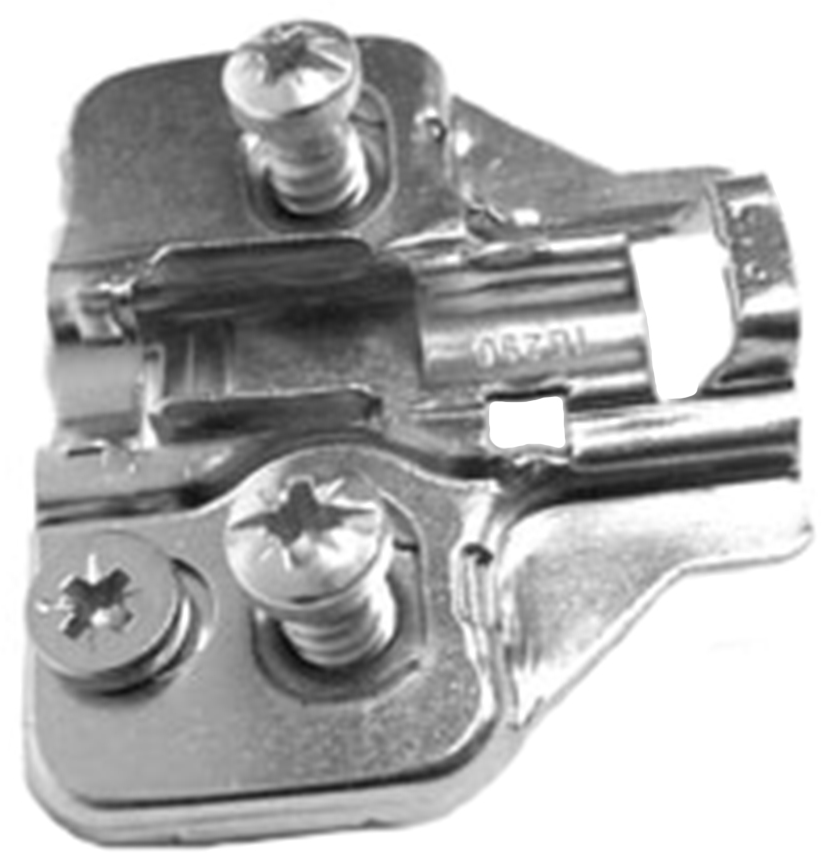

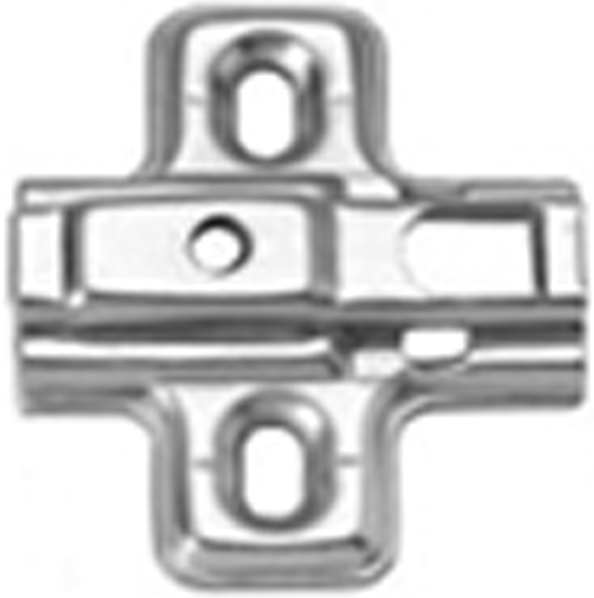

Grass Mounting Plates
For use with all Grass Hinges shown above.
314393810015
314493710015
318493710015
318393810015
|
Attach
|
Type
|
0mm
|
2mm
|
Box Quantity
|
| Screw In |
Steel
|
GR314393810015 |
250
|
|
| Euro Screw Short Pre-Inserted |
Steel
|
GR346393921015
|
250
|
|
| Euro Screw Pre-Inserted |
Steel
|
GR318393810015 | GR318393810215 |
250
|
| Screw In |
Steel 3-D Adjustable
|
GR314493710015 | GR314493710215 |
250
|
| Euro Screw |
Steel Adjustable
|
GR318393690015
|
250
|
|
| Euro Screw Pre-Inserted |
Steel 3-D Adjustable
|
GR318493710015 |
250
|
Grass Face Frame Mounting Plates
346290880415
346290910415
346290920415
|
Attach
|
Type
|
4mm
|
Box Quantity
|
| Screw In |
Steel
|
GR346290880415 |
250
|
| Screw In |
Steel 3-D Adjustable
|
GR346290910415 |
250
|
| Screw In Premounted |
Steel 3-D Adjustable
|
GR346290920415 |
250
|
Grass Soft Close
Twin Adapter and Damper
Click On Adapter
Adapter for 170 Degree Hinges
Works with all 110 Degree and 125 Degree Twin Hinges.
Works with all 110 Degree and 125 Degree Standard Hinges.
Works with all 170 Degree Tiwn and Standard Hinges.
Adapter works with Click On 65 and Twin 65 Hinge
Part Number: GR924200390215
Part Number: GR924200400215

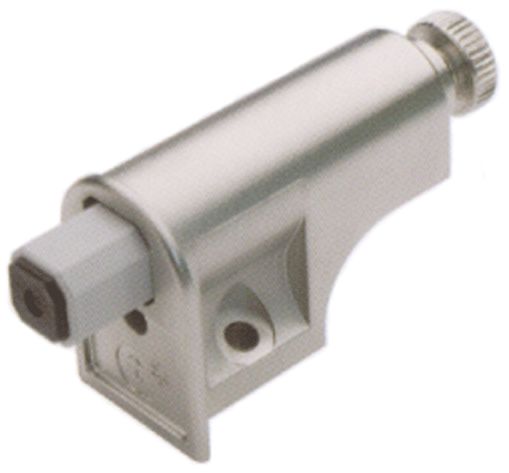

Grass UniSoft
Works for face frame cabinets on all door overlays.
Works for frameless cabinets on full overlay doors.
Works for frameless cabinets on full overlay doors.
250 per box
Part Number: GR1897114
*Recommended screws: 6x3/4 pan head

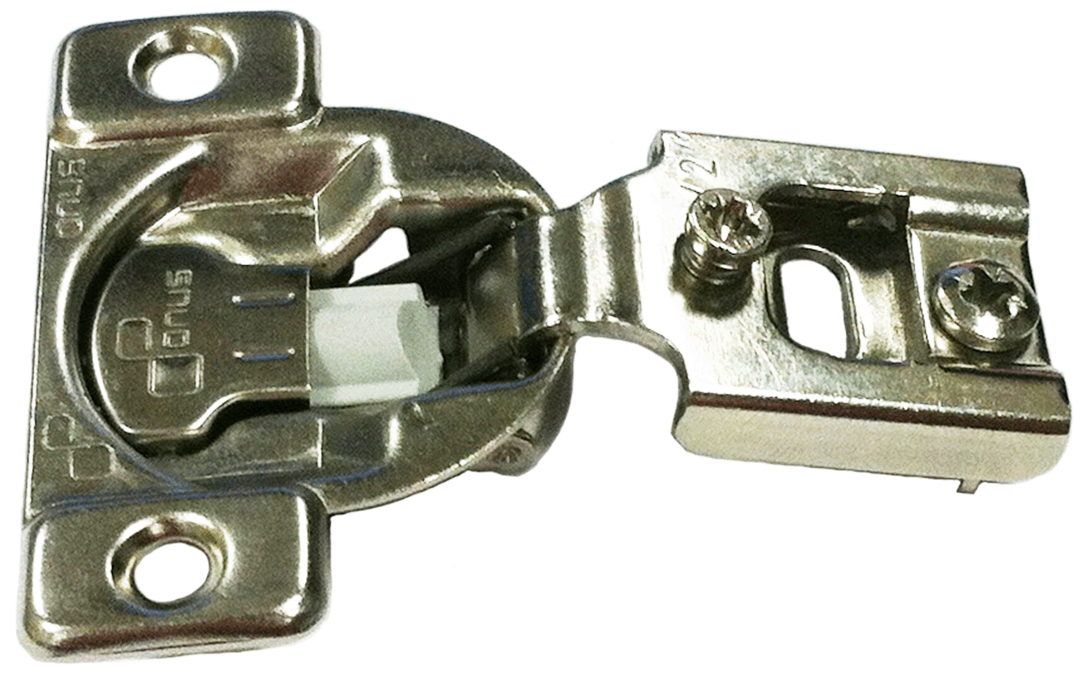

Import Soft Close Hinges
35mm Cup, 11mm Depth
35mm Cup, 11mm Depth
Import Face Frame Hinge
Full Overlay
Half Overlay
|
Overlay
|
Swing
|
Attach
|
Part Number
|
Box Quantity
|
| 1/2" |
Self Closing
|
Dowel
|
PRH250D |
250
|
|
Overlay
|
Swing
|
Attach
|
110 Degree
|
Box
Quantity |
| Full |
Soft Closing
|
Dowel
|
PR33118DSC
|
200
|
| Half |
Soft Closing
|
Dowel
|
PR33228DSC
|
200
|

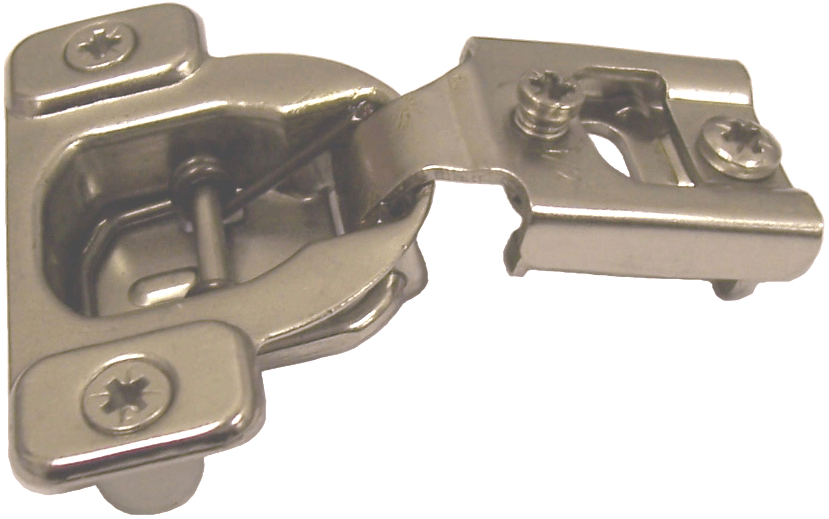

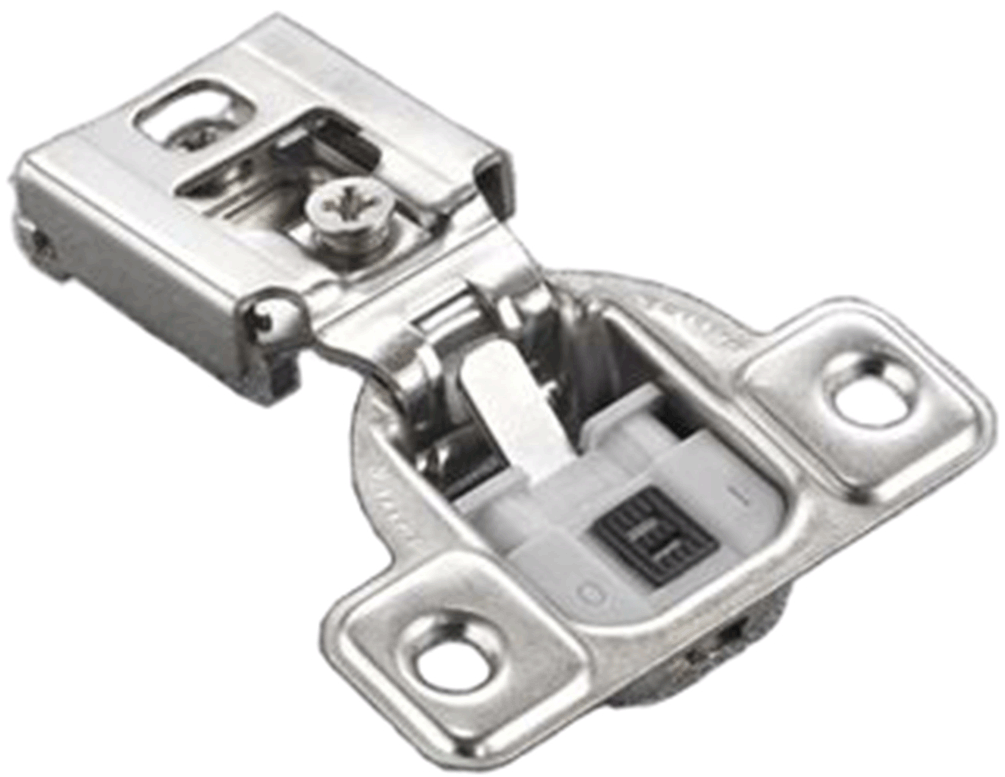

Import Face Frame Cam Adjustable Hinges
Import Soft Close Mounting Plates
Steel Clip On
Steel Clip On
|
Overlay
|
Swing
|
Attach
|
Part Number
|
Box
Quantity |
| 1/2" |
Self Closing
|
Screw In
|
PRH294 |
250
|
| 1/2" |
Self Closing
|
Dowel
|
PRH294D |
250
|

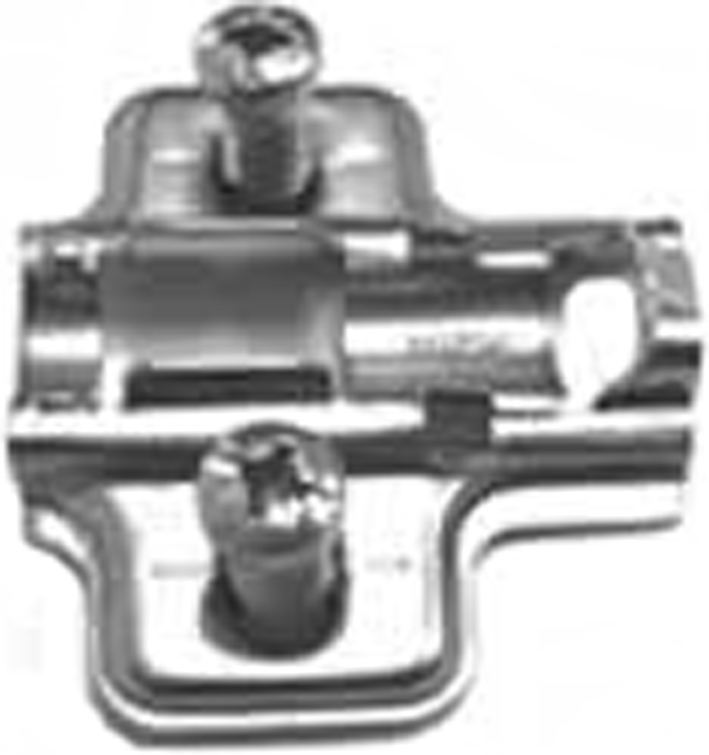

3300/3303
|
Attach
|
Type
|
0 mm
|
3 mm
|
Box
Quantity |
| Euro Pre- Inserted | Soft Closing | PR3300S |
200
|
|
| Screw In | Clip-On Soft Closing |
PR3300 |
200
|
|
| Face Frame Sot Closing |
PR3300SC | PR3303SC |
200
|

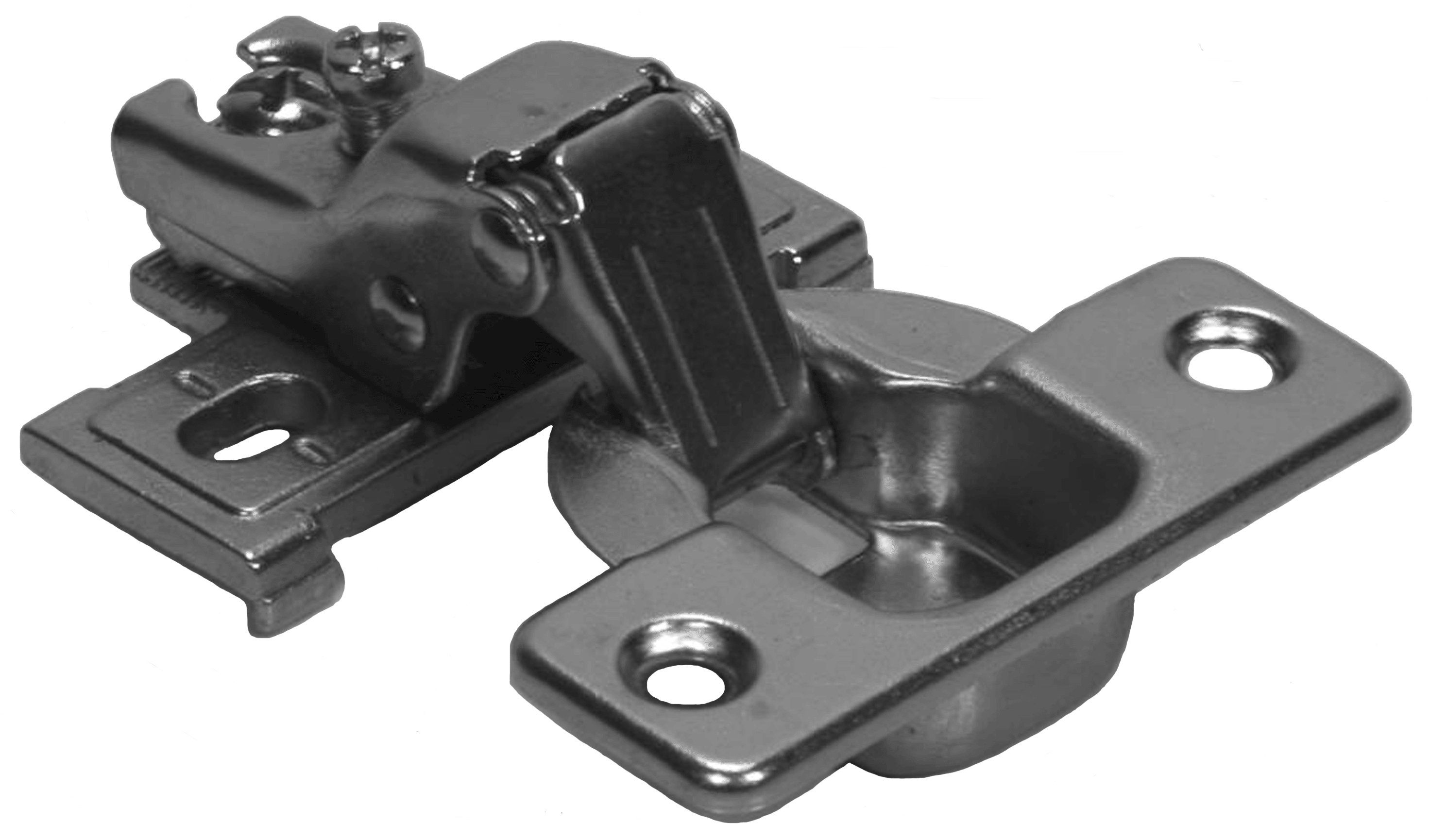

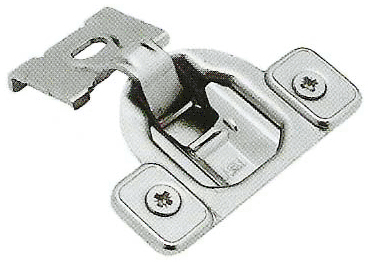

Import Face Frame Hinges
Import Seft Closing Hinges
35mm Cup, 11mm Depth
35mm Cup, 11mm Depth
|
Overlay
|
Attach
|
Part Number
|
Box Quantity
|
| 3/8" |
Dowel
|
IN228531 |
200
|
| 3/8" |
Dowel
|
IN228533 |
200
|
| 1/2" |
Screw-In
|
IN228550 |
200
|
| 1/2" |
Dowel
|
IN228553 |
200
|

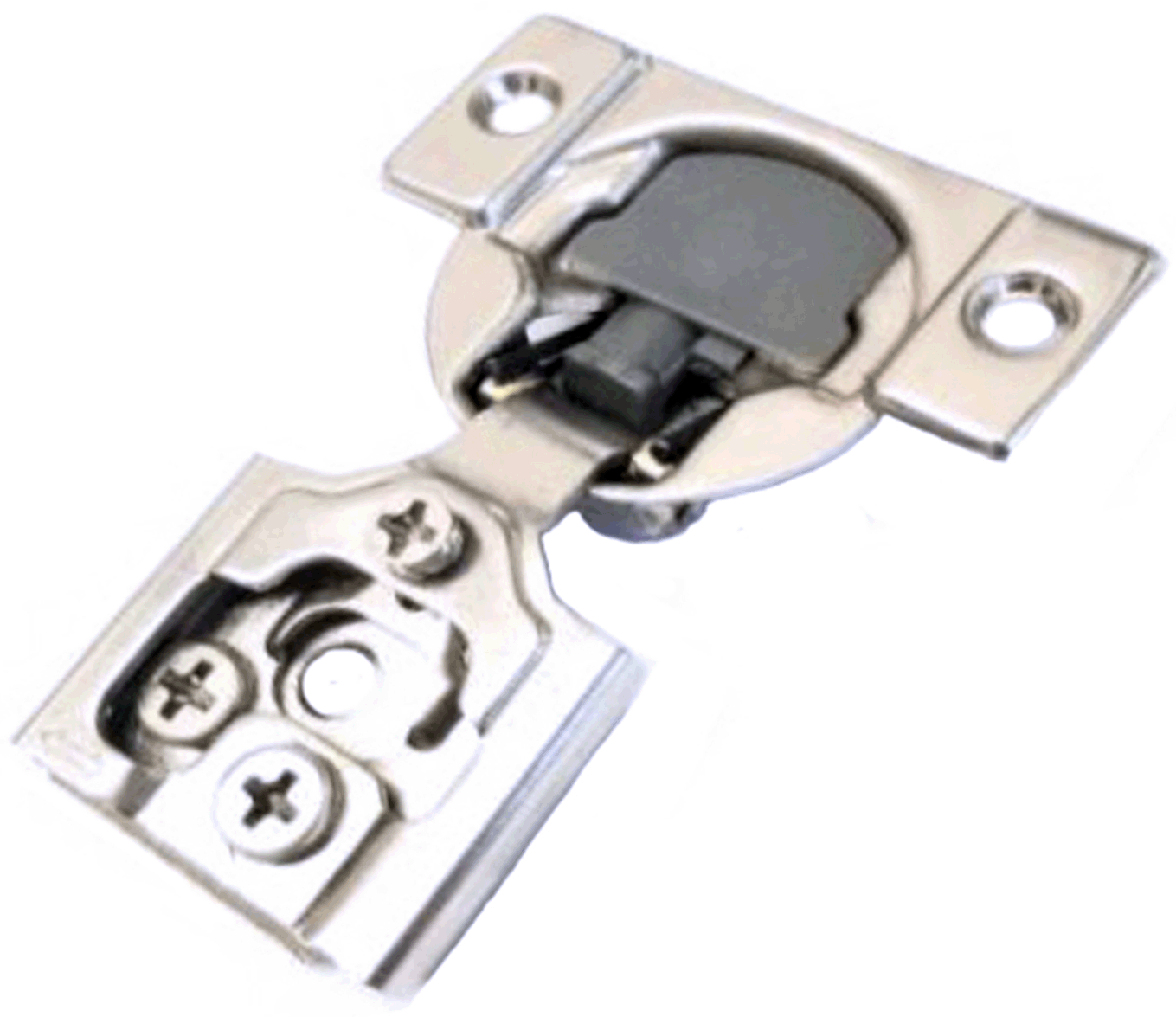

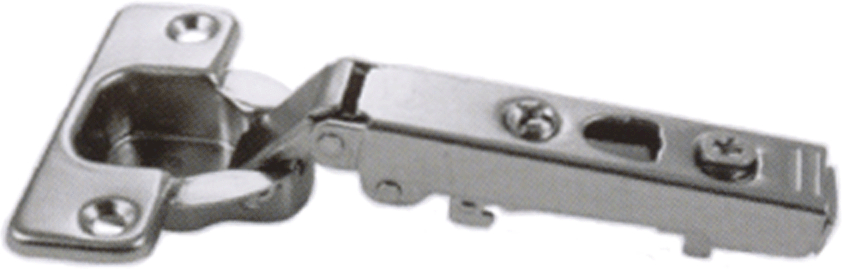

110 Degree Seft Closing Hinges
Full Overlay
Half Overlay
|
Overlay
|
Swing
|
Attach
|
110 Degree
|
Box
Quantity |
| Full |
Self Closing
|
Screw In
|
PRH633ACL |
200
|
| Half |
Self Closing
|
Screw In
|
PRH633BCL |
200
|
| Full |
Self Closing
|
Dowel
|
PRH634ACL |
200
|
| Half |
Self Closing
|
Dowel
|
PRH634BCL |
200
|

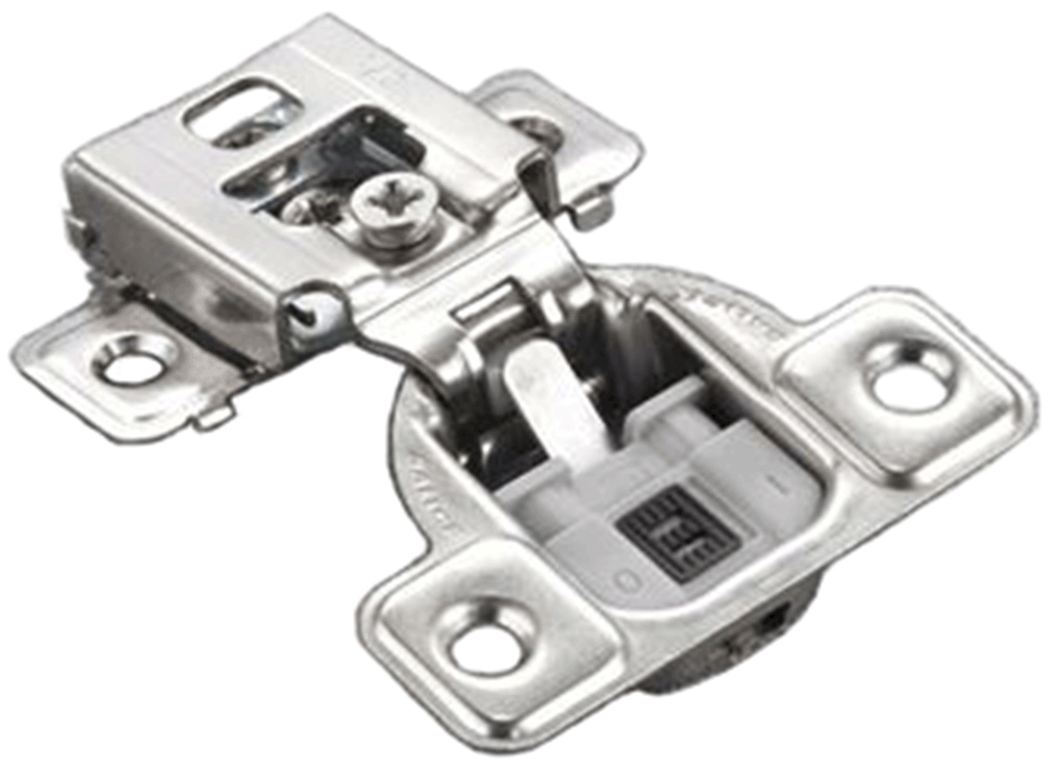

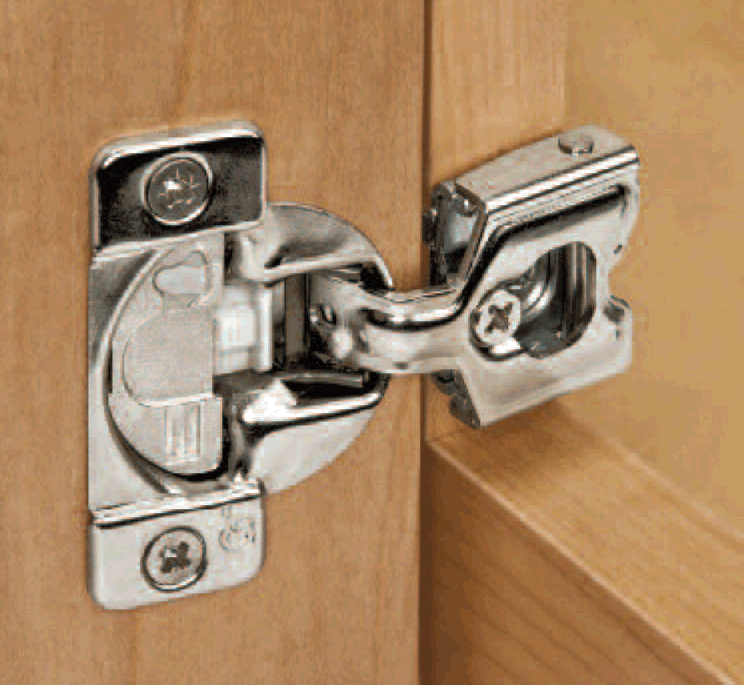

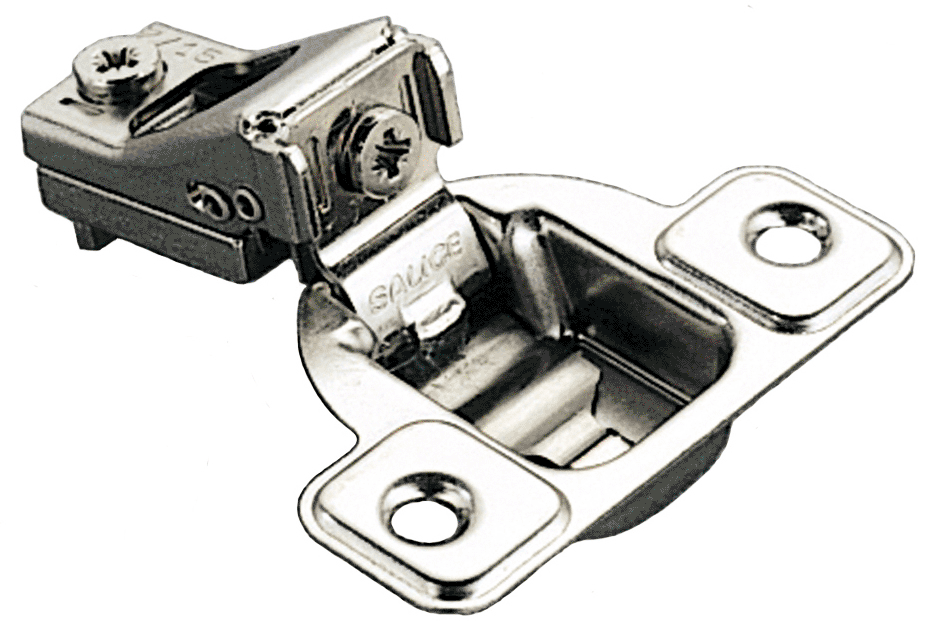

Salice Face Frame 106 Degree Hinges

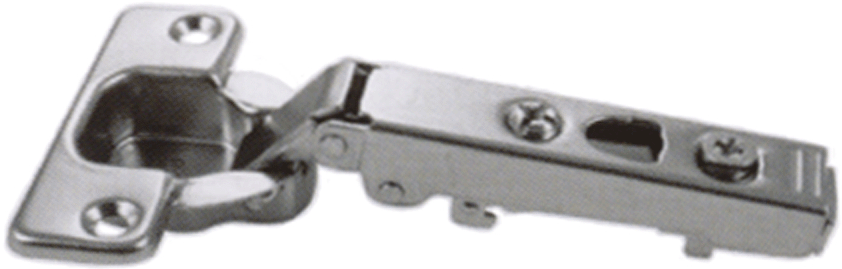

120 Degree Self Closing Hinges
35mm Cup 11mm Depth
Zero door protrusion from 1/2" to
1 7/16" overlay.
1 7/16" overlay.
|
Overlay
|
Attach
|
Part Number
|
Box
Quantity |
| 1/4" |
Screw In
|
65CSP3Y99 |
300
|
| 1/4" |
Dowel
|
65CSR3Y99 |
300
|
| 5/16" |
Dowel
|
65CSR3Z99 |
300
|
| 1/2" |
Screw In
|
65CSP3799 |
300
|
| 1/2" |
Dowel
|
65CSR3799 |
300
|
| 9/16" |
Dowel
|
65CSR3699 |
300
|
| 5/8" |
Dowel
|
65CSR3599 |
300
|
| 3/4" |
Dowel
|
65CSR3499 |
300
|
| 1" |
Dowel
|
65CSR3299 |
300
|
| 1 1/4" |
Screw In
|
65CSP3A99 |
300
|
| 1 1/4" |
Dowel
|
65CSR3A99 |
300
|
| 1 7/16" |
Screw In
|
65CSP3D99 |
300
|
| 1 7/16" |
Dowel
|
65CSR3D99 |
300
|
|
Overlay
|
Swing
|
Attach
|
120 Degree
|
Box Quantity
|
| Full |
Self Closing
|
Dowel
|
PRH659ACL |
200
|
| Half |
Self Closing
|
Dowel
|
PRH659BCL |
200
|

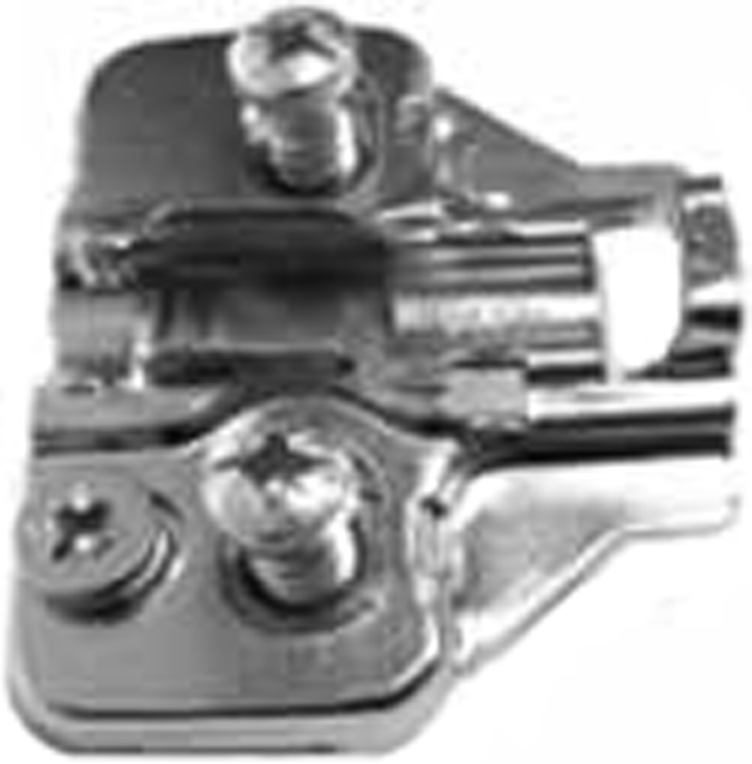

Import Cam Adjustable Die-Cast Clip On Plate
|
Attach
|
Type
|
0 mm
|
2 mm
|
Box
Quantity |
| Euro Inserted |
Cam Adjustable
|
PRT02TQ
|
200
|
|
| Screw In |
Cam Adjustable
|
PRT00TQ | PRT20TQ |
200
|
| Euro Dowel |
Cam Adjustable
|
PRT2CTQ |
200
|
Salice Face Frame 106 Degree Hinges
6 Way Cam Adjustable
6 Way Cam Adjustable
Available Upon Request
|
Attach
|
0 mm
|
2 mm
|
Box
Quantity |
| Euro Pre-Inserted | PRCLK0S | PRCLK2S |
200
|
| Short Euro Pre- Inserted | PRCLK0S12 |
200
|
|
| Screw In | PRCLK2 |
200
|

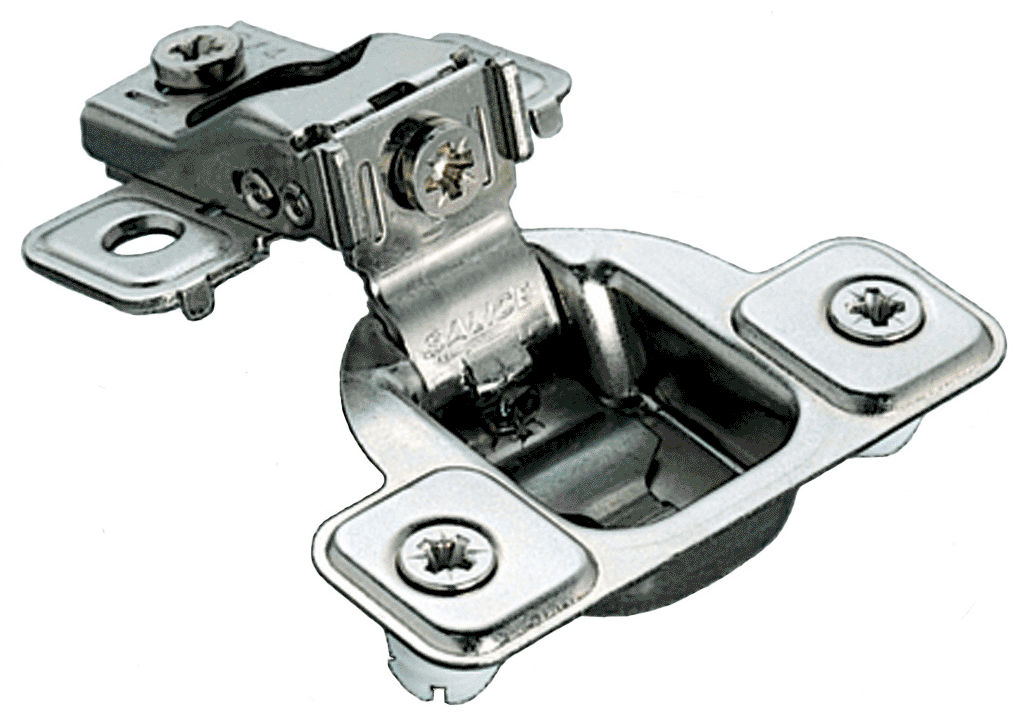

35mm Cup
Zero door protrusion from 1/2" to
1 7/16" overlay.
1 7/16" overlay.
|
Overlay
|
Attach
|
Cup
Depth |
Part Number
|
Box
Quantity |
|
1/2"
|
Dowel
|
11mm
|
65CSR3799XR |
300
|
|
5/8"
|
Dowel
|
11mm
|
65CSR3599XR |
300
|
|
3/4"
|
Dowel
|
11mm
|
65CSR3499XR |
300
|
|
1 1/4"
|
Dowel
|
12mm
|
65CSR3A99PR |
300
|
|
1 7/16"
|
Dowel
|
12mm
|
65CSR3D99PR |
300
|

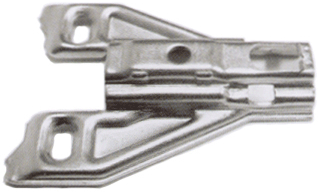

Import Face Frame Plates
FCL
FCLS
|
Type
|
0mm
5/8 Overlay |
3mm
1/2 Overlay |
6mm
3/8 Overlay |
Box
Quantity |
|
Face Frame
Die Cast |
PRFCL0 | PRFCL3 |
200
|
|
|
Face Frame
|
PRFCLS0 | PRFCLS3 | PRFCLS6 |
200
|
